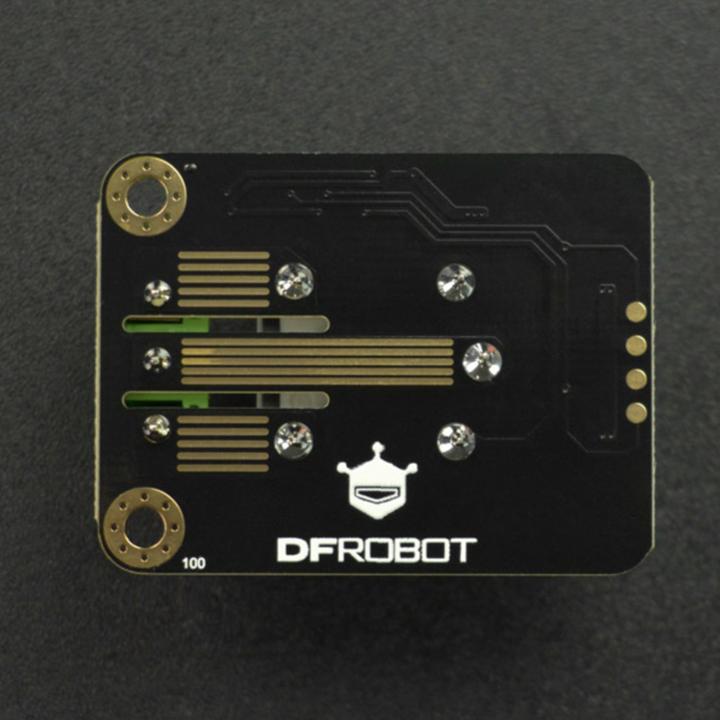

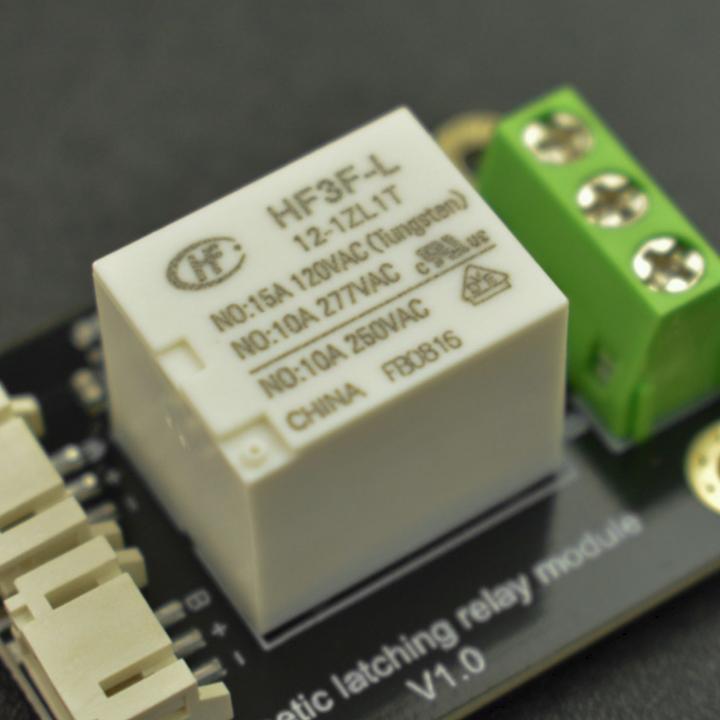

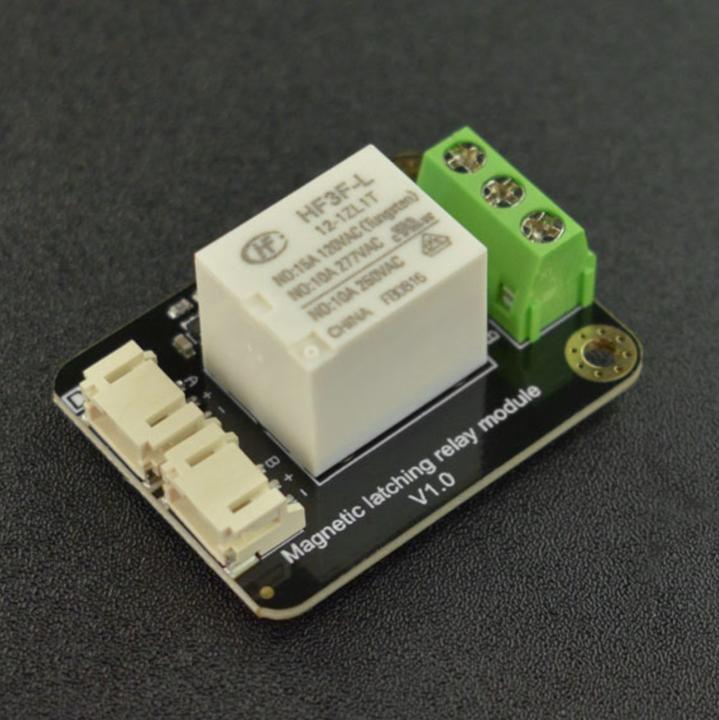

DFRobot Gravity Magnetic Latching Relay 3.3V-5V

The DFRobot Gravity magnetic latching relay is a powerful and silent relay compatible with most popular microcontrollers including ESP32, Arduino, Raspberry Pi, and LattePanda. With a low power consumption of 2.6-3.65 mW and the ability to control household appliances and lighting controls such as smart meters, lighting, sockets, and switches, this relay is ideal for any electronics enthusiast. It requires two digital pulse signals to switch the ON/OFF state and has a hold function. This relay is an excellent choice for any project where reliability and performance are required.

Features:

• Low power consumption: 2.6 mW - 3.65 mW
• Silent operation
• Trigger pulse width: 2 ms
• Hold function
• Supports 3.3V and 5V for Arduino, ESP32, Raspberry Pi, and LattePanda

Technical Details:

• Manufacturer: DFRobot
• Manufacturer SKU: DFR0996
• Signal level: 3.3V, 5V
• Supply voltage: 3.3V - 5V DC
• Static current: 0.73 mA - 0.8 mA at 3.3V - 5V
• Coil operating current: 137 mA (3.3V), 93 mA (5V)
• Contact resistance: ≤100 mΩ (1A 6V DC)
• Trigger pulse width: 2 ms
• Contact material: AgSnO2
• Contact load: 10A 36V AC (resistive load), 15A 36V AC (incandescent lamp)
• Max. switching voltage: 36V AC, 30V DC
• Max. switching current: 10A
• Max. switching capacity: 36VA/300W
• Rated coil power: 0.4W
• Relay action time (at nominal voltage): ≤8 ms
• Relay reset time (at rated voltage): ≤5 ms
• Operating humidity range: 5% - 85% (relative humidity)
• Operating temperature range: -40°C - 85°C
• Dimensions: 42 x 32 x 18 mm
• Weight: 28 g

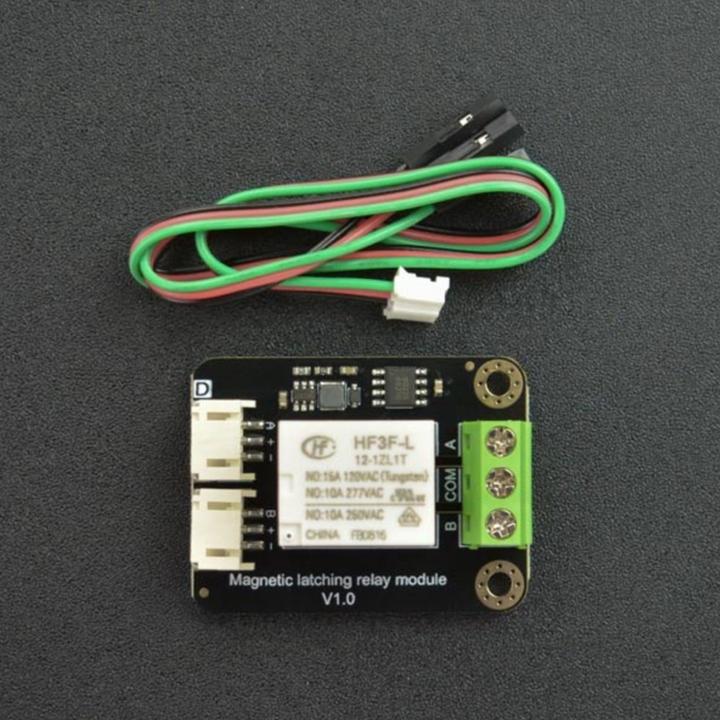

Scope of delivery:

• 1x Gravity magnetic latching relay 3.3V - 5V
• 2x Gravity 3-pin digital sensor cable PH2.0 to XH2.54.
