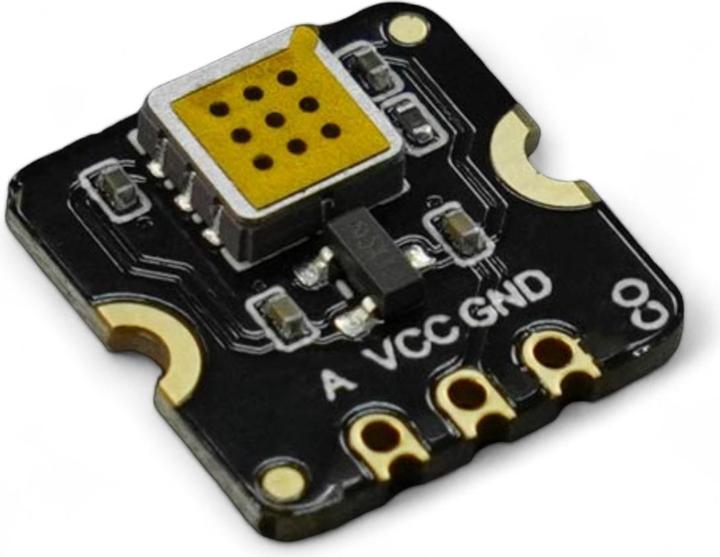

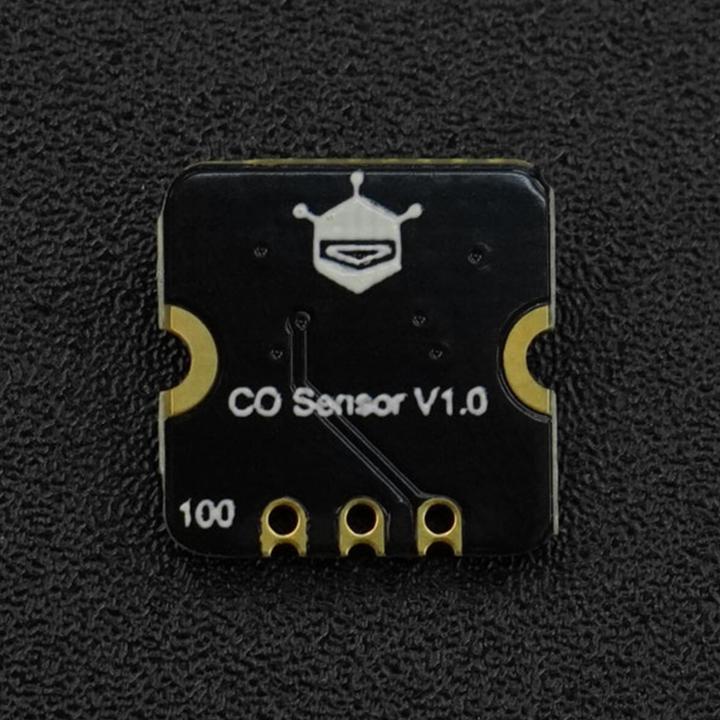

DFRobot Fermion CO carbon monoxide analogue gas sensor

Discover the Fermion CO Carbon Monoxide Analog Gas Sensor, equipped with state-of-the-art MEMS technology, providing a compact and efficient solution for carbon monoxide monitoring. This sensor features low power consumption (less than 20 mA), minimal heat generation, and fast response times. With its small dimensions of just 13 x 13 x 2.5 mm and the ability to qualitatively measure CO concentrations, it is ideal for use in portable CO detectors and carbon monoxide leak alarms. To read the gas sensor with an Arduino, connect the sensor's analog output pin to an analog input pin on the Arduino. Then use the analogRead() function in your Arduino sketch to measure and process the sensor values.

Note: This sensor can only indicate whether a substance is present and provides only an approximate reference. For precise measurements, we recommend purchasing the Gravity series with factory-calibrated electrochemical gas sensors.

Features:

• Compact size: 13 x 13 x 2.5 mm
• Low power consumption of under 20 mA
• Fast response and recovery times
• Utilizes advanced MEMS technology
• Designed for qualitative measurements of carbon monoxide

Application examples:

• Petrochemical CO detection
• CO monitoring in metallurgy
• Carbon monoxide detection in mining
• Use in environmental protection technology

Technical specifications:

• Manufacturer: DFRobot
• Manufacturer SKU: SEN0564
• Gas detected: CO (Carbon Monoxide)
• Detection range: 5-5000 ppm
• Operating voltage: 3.3-5V
• Operating current: less than 20 mA
• Output signal: Analog voltage
• Sensitivity: R0 (in air) / Rs (in 150 ppm CO) ≥ 3
• Operating temperature: -10 to 50 °C
• Operating humidity: 15-90 % RH (non-condensing)
• Lifespan: ≥ 5 years (when used in air)

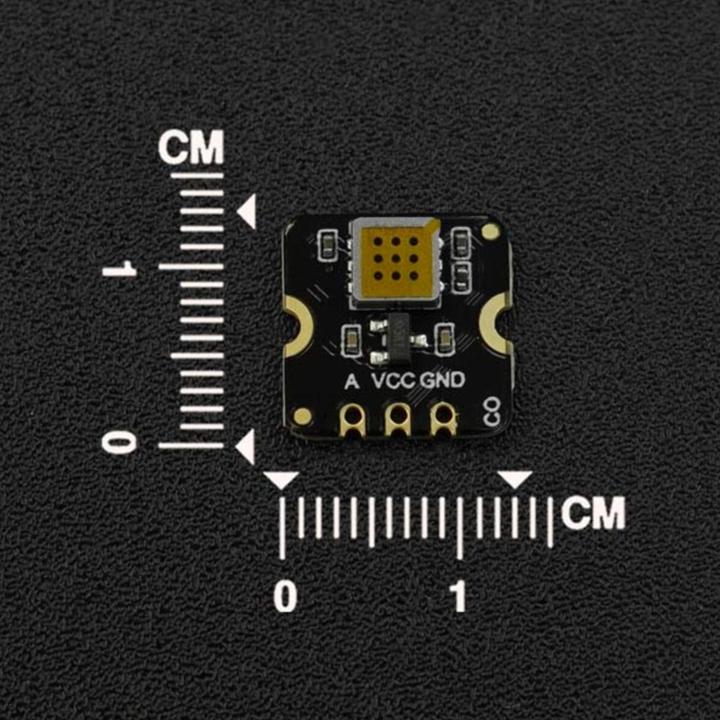

• Dimensions: 13 x 13 x 2.5 mm
• Weight: 7.2 g

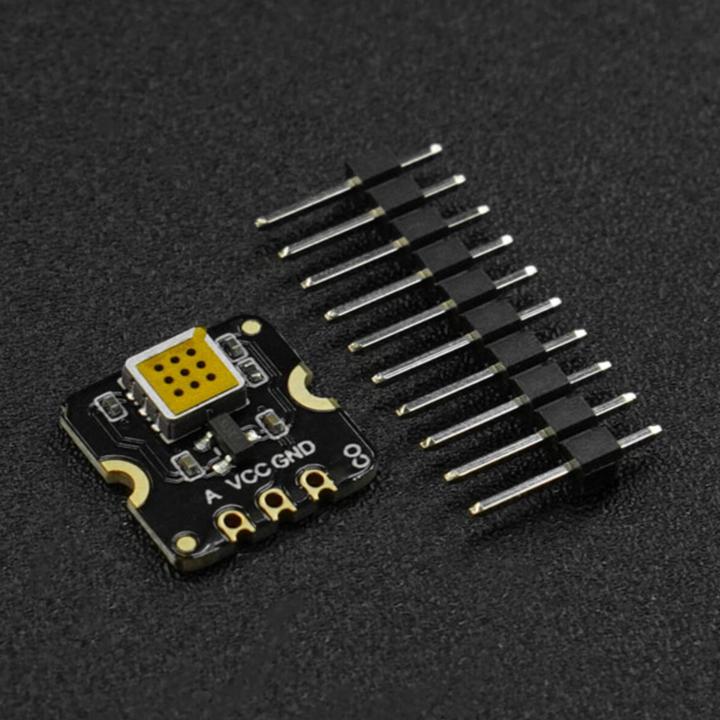

Delivery includes:

• 1 x Fermion CO Carbon Monoxide Analog Gas Sensor
• 1 x 10-pin header 2.54 mm.
