Product details

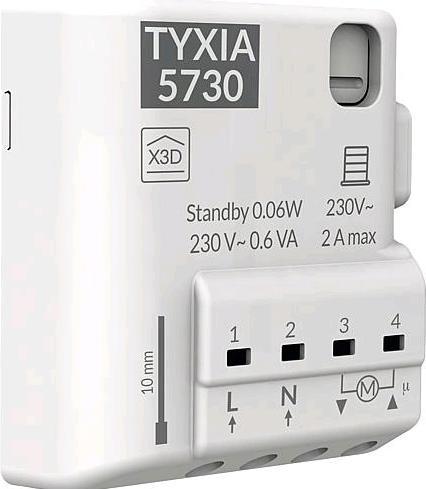

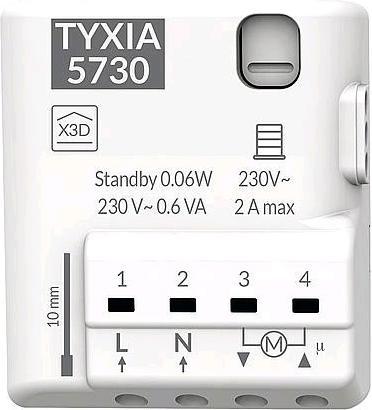

Radio receiver switch TYXIA 5730
This device is designed for the remote control of roller shutters. It can be mounted in a switch box behind an existing local switch, junction box, or in the roller shutter box. It is capable of controlling roller shutters up to 80Nm or a rated power of 230V/2A. The switch features plug-in terminals for rigid or flexible conductors ranging from 0.75mm² to 1.5mm², and includes three wires for connection to a local shutter switch, shutter push-button, or a simple push-button (up/stop/down/stop). It utilizes a triac switching function and operates on a power supply of 230V. The radio frequency is 868MHz, with a radio range of up to 100m in free field and 30m indoors. The device has an IP40 rating.
Technical data
EAN: 3513140005097
Product group: Building Services/Roller Shutter Ant.
Manufacturer: Delta Dore
Supplier article number: 6351402
Colour: White
Dimensions: 41 x 36 x 14.5 mm.
Colour | White |
Width | 36 mm |
Item number | 22703033 |
Manufacturer | Delta Dore |
Category | Buttons + Switches |
Manufacturer no. | 121595 |
Release date | 17.10.2022 |
Colour | White |
Exact colour description | White |
Nominal voltage | 230 V |
Protection type (IP code) | IP40 |
CO₂-Emission | |
Climate contribution |
Smart Home | Compatible |
Radio frequency | 868000000 Hz |
Items per sales unit | 1 Piece |
Scope of delivery | Radio receiver flush-mounted for TYXIA 5730 roller shutter control unit |
Length | 41 mm |
Width | 36 mm |
Height | 14.50 mm |
Length | 11.30 cm |
Width | 5.50 cm |
Height | 3.50 cm |
Weight | 14 g |
