Delta Dore Radio receiver UP for roller shutter control TYXIA

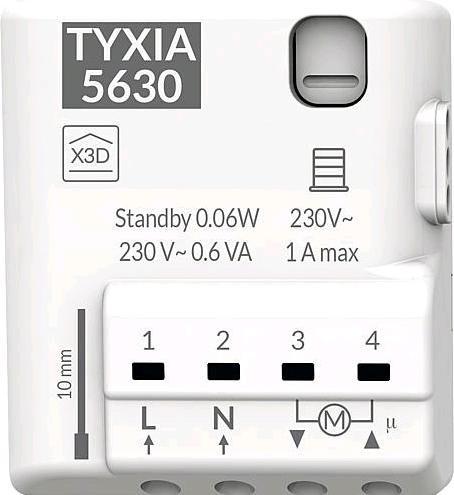

Radio receiver switch TYXIA 5630 for remote control of shutters and blinds. It can be mounted in a switch box behind an existing local switch, junction box, or in a roller blind box. This device controls shutters up to 20Nm or a rated power of 230V/1A. It features plug-in terminals for rigid or flexible conductors of 0.75mm² to 1.5mm² and includes three wires for connection to a local shutter switch, shutter push-button, or a simple push-button (up/stop/down/stop). It has a triac switching function and operates on a power supply of 230V. The radio frequency is 868MHz, with a radio range of up to 100m in free field and 30m in buildings. It has an IP40 rating.

Technical data:

EAN: 3513140005080
Product group: Building Services/Roller Shutter Ant.
Manufacturer: Delta Dore
Supplier article number: 6351401
Colour: white
Dimensions: 41 x 36 x 14.5 mm.
