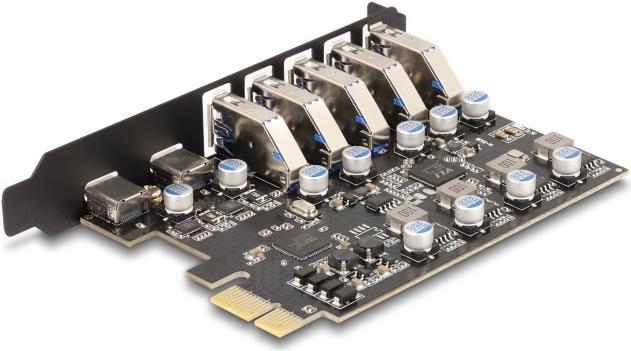

Delock USB 5 Gbps PCI Express x1 card to 5 x external Type-A +

The Delock PCI Express card expands the PC with five external Type-A and two external USB Type-C ports. Various USB devices, such as USB sticks, card readers, and external enclosures, can be connected. A maximum data transfer rate of up to 5 Gbps can be achieved.

Power supply via the PCI Express interface
The card does not require an additional power supply. Power is supplied exclusively through the PCI Express interface.

Technical specifications
Connections:
External:

• 5 x USB 5 Gbps Type-A socket
• 2 x USB 5 Gbps Type-C socket

Internal:

• 1 x PCI Express x1, V2.0
• Chipset: VIA VL817, Fresco Logic FL1100
• Data transfer rate up to 5 Gbps
• Power supply via PCI Express interface
• Electrical power per port: max. 5 watts (5 V / 1 A)
• Supports eXtensible Host Controller Interface (xHCI) Specification 1.1
• Supports UASP
• Supports Multiple INs
• Bootable

System requirements

• Linux Kernel 6.5 or higher
• Windows 10/10-64/11
• PC with a free PCI Express slot

Package contents

• PCI Express card USB 5 Gbps
• User manual

Packaging

• Box.
