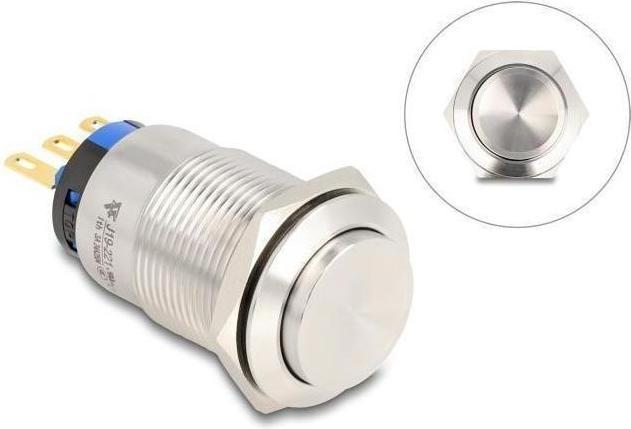

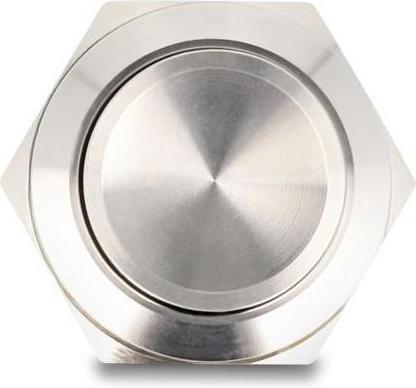

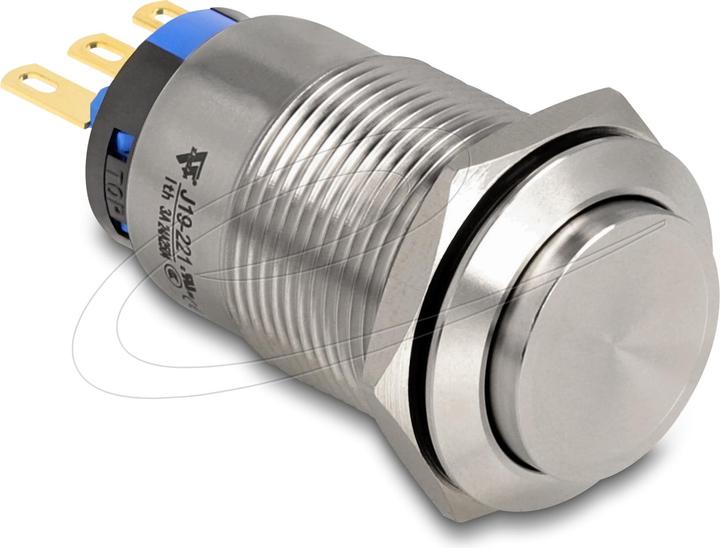

Delock Pushbutton for installation 19 mm 3 x solder connection

This pushbutton from Delock is ideal for installation in control panels, for example in industrial, control, or regulation technology. It is also found in the automotive industry or in consumer applications, such as doorbells or triggers for lighting systems with timers, like those found in hallways.

Pushbutton
A so-called pushbutton, or momentary switch, returns to its original position after being pressed.

Normally Open and Normally Closed
The normally open (NO) switch establishes a connection between two contacts, while the normally closed (NC) switch breaks this connection.

Specifications

• Connections: 3 x solder terminals
• Switch type: 1 NO + 1 NC
• Switching voltage: AC 230 V~ / 3 A
• Number of contacts: 3
• Number of normally closed contacts: 1
• Function: momentary
• Actuator: high
• Operating temperature: -25 °C ~ 55 °C
• Mounting hole diameter: approx. 19 mm
• Hex nut width: 22 mm
• Installation depth: approx. 35 mm
• Thread size: M19
• Without LED
• Material: nickel-plated stainless steel
• Mechanical lifespan: 1,000,000 cycles
• Electrical lifespan: 100,000 cycles
• Protection class: IP65
• Dimensions (LxD): approx. 43 x 25 mm

Package contents

• Pushbutton.
