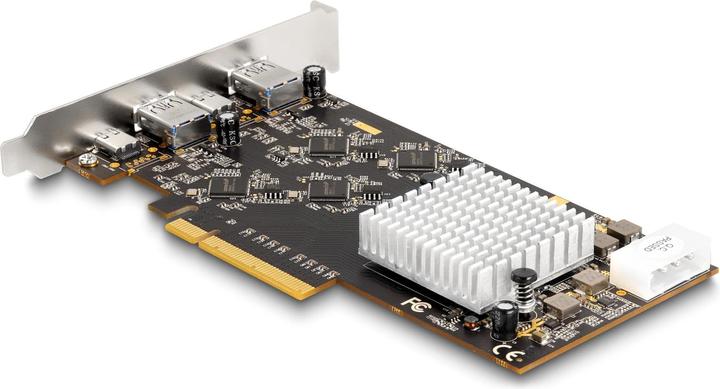

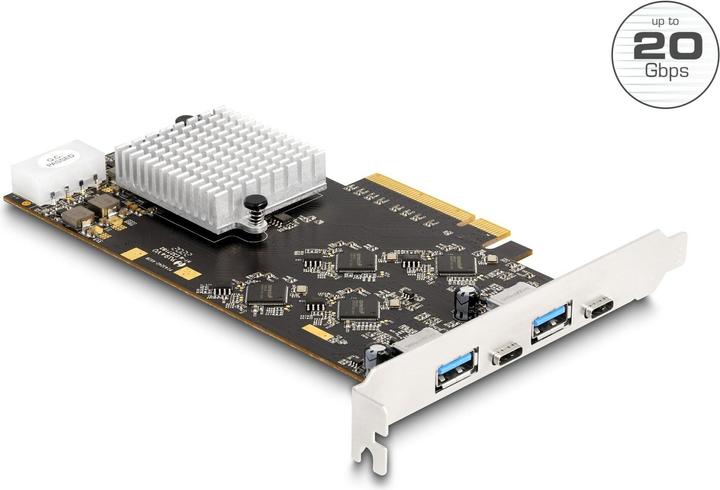

Delock PCI Express x8 card with 2 x USB 20 Gbps USB Type-C™ socket and 2 x USB 5 Gbps Type-A socket

The Delock PCI Express card expands the PC with four external USB 3.2 ports, including two USB-C and two USB Type-A ports. Various USB devices, such as docking stations, card readers, external enclosures, etc., can be connected to the card.

Quad Channel

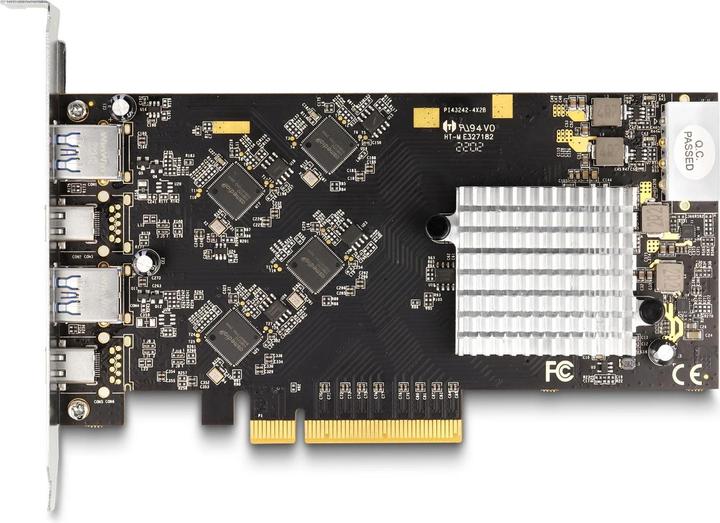

The card features four ASM3242 chipsets, with a separate chipset for each USB connection. This ensures a high data transfer rate of 20 Gbps at the USB Type-C ports and 10 Gbps at the USB Type-A ports when used simultaneously.

Power Supply
The PCIe card can be powered through the PCIe connection. If this is insufficient, the card has a 4-pin power connector. The USB Type-C ports provide a maximum of 5 V / 3 A, while the Type-A ports output 5 V / 0.9 A, with a total maximum of 7.8 A across all ports.

Specifications

• Connections:

external:
2 x USB 10 Gbps Type-A socket
2 x USB 20 Gbps USB Type-C socket
internal:
1 x 4-pin power connector
1 x PCI Express x8, V3.0

• Chipset: Asmedia ASM3242, Pericom PI7C9X3G816GP
• Data transfer rate up to 20 Gbps
• Backward compatible with USB 3.0, USB 2.0, USB 1.1
• Power supply via PCI Express interface or through the 4-pin power connector
• Electrical power per port:

USB Type-A: max. 4.5 Watts (5 V / 0.9 A)
USB Type-C: max. 15 Watts (5 V / 3 A)

• Bootable
• Supports UASP
• Supports eXtensible Host Controller Interface (xHCI) Specification 1.1
• Supports Multiple INs

System Requirements

• Linux Kernel 5.15 or higher
• Windows 8.1/8.1-64/10/10-64/11
• Windows Server 2019
• PC with a free PCI Express x8 / x16 / x32 slot

Package Contents

• PCI Express card
• User manual.
