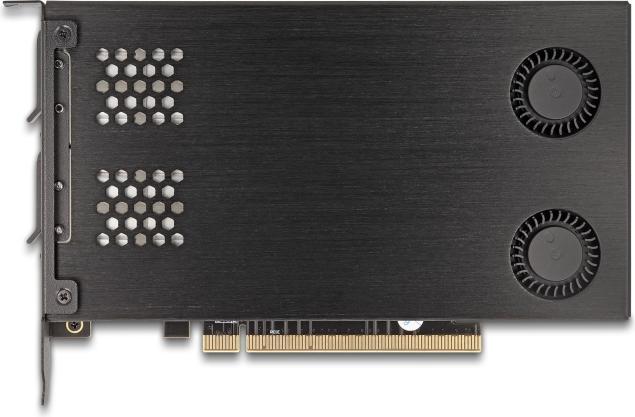

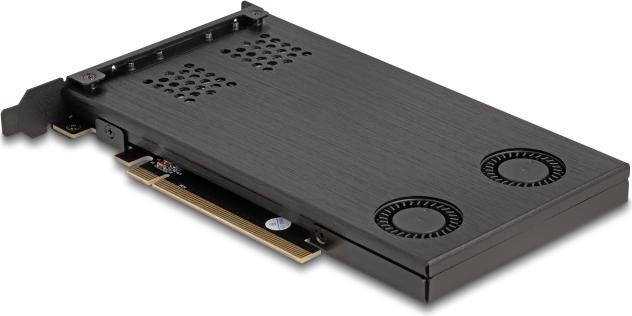

Delock PCI Express x16 card removable frame for 2 x M.2 NVMe

This Delock exchange frame can be installed in a PC slot of the computer and provides two M.2 slots in the 2280, 2260, 2242, or 2230 format.

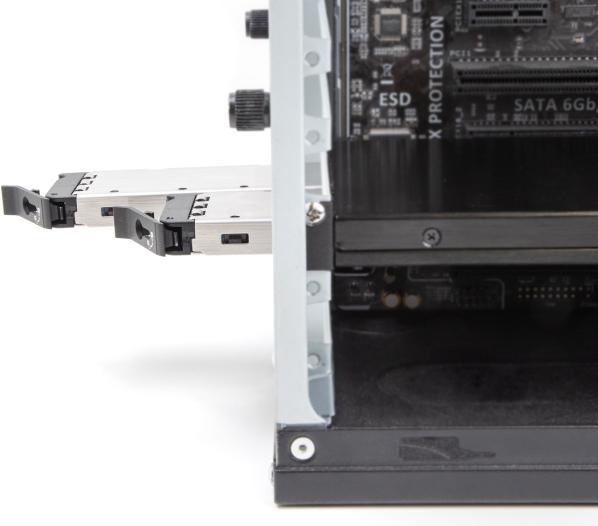

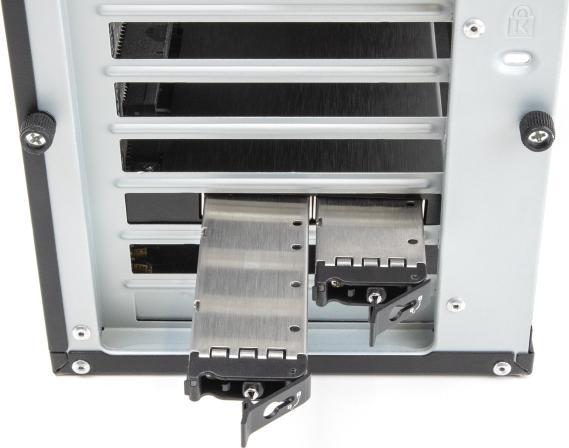

Quick SSD Replacement
Thanks to the special mechanism, the SSDs can be quickly and easily swapped out. For example, backups can be removed and stored in a secure location.

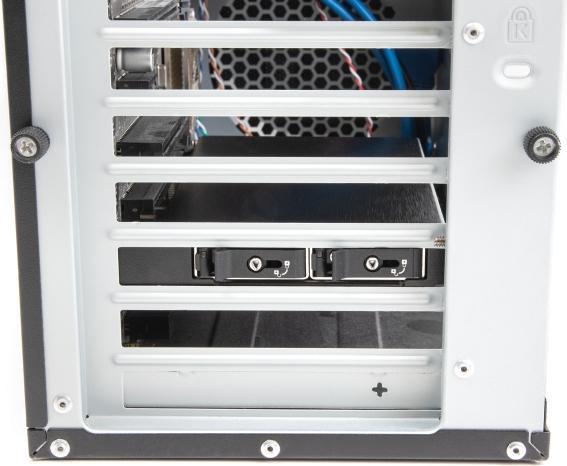

Slot with Lock and Suspension
To ensure that only authorized personnel can remove the drive, the exchange frame features a key lock. The sturdy metal carrier has springs on the top and bottom, which absorb vibrations and thus support use in mobile devices.

Note
It is important to ensure that the slot is fully inserted, as otherwise no connection to the SSD can be established. Without PCIe bifurcation, only the first M.2 slot on the card can be used.

Technical Data
Connections:
PCIe Card:
1 x PCI Express x16, V4.0
2 x M.2 Key M Slot
M.2 Slot:
1 x M.2 Key M Connector
1 x M.2 Key M Slot

• Interface: PCIe / NVMe
• Supports M.2 modules in the format 2280, 2260, 2242, and 2230 with Key M or Key B+M based on PCIe
• Maximum height of components on the module: 1.5 mm, use of double-sided modules possible
• 2 x Fans
• 2 x LED Indicators
• Bootable, from UEFI version 2.3.1
• Metal M.2 slot
• Supports NVM Express (NVMe)
• Supports S.M.A.R.T.
• Operating temperature: -40 °C to 85 °C

System Requirements

• Linux Kernel 6.2 or higher
• Windows 10/10-64/11
• Windows Server 2022
• PC with a free PCI Express x16 / x32 slot

Package Contents

• Exchange frame with 2 x M.2 slot
• Heat sink

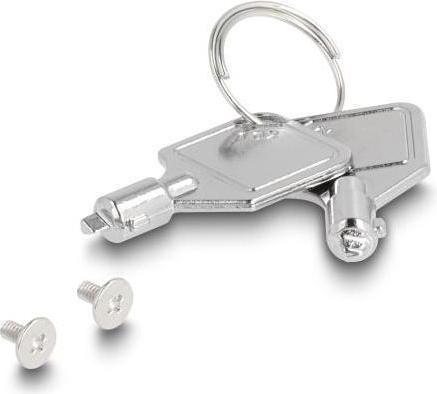

• 2 x screws IM 2.0 x 4.0 mm, head 5.0 mm
• 2 x keys
• User manual.
