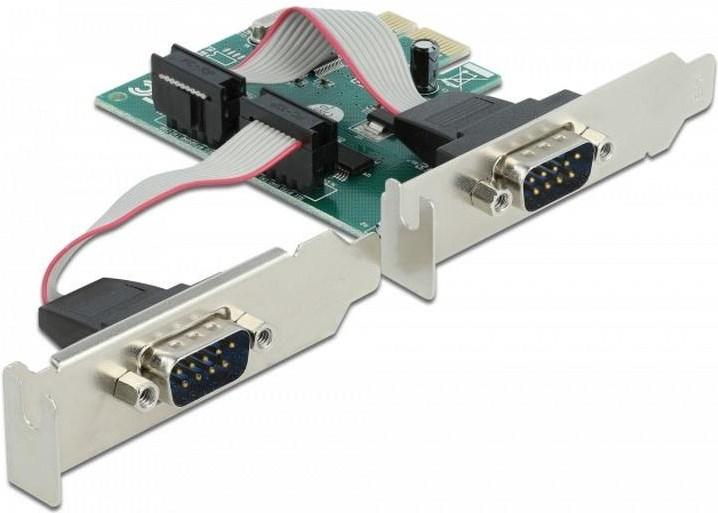

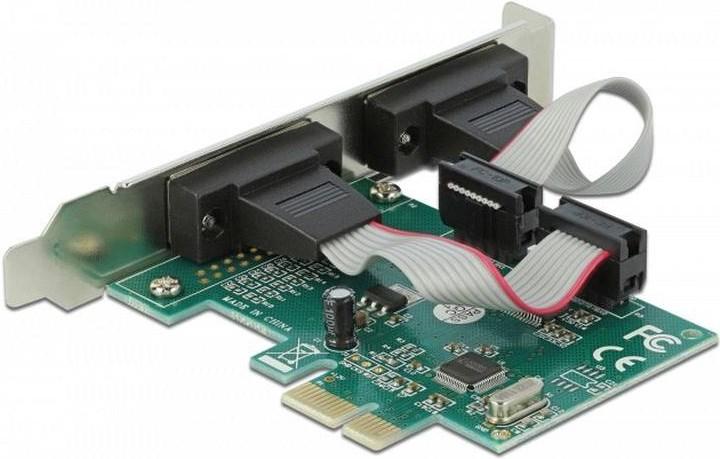

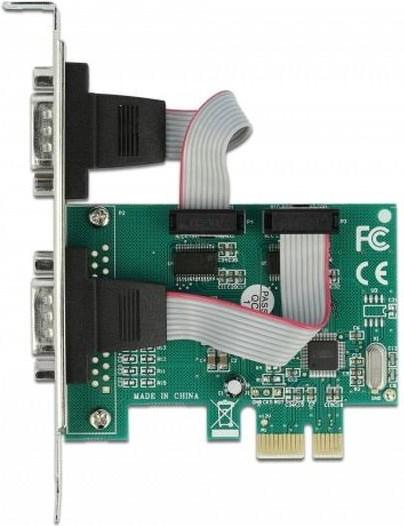

Delock PCI Express card 90007 2x serial / RS-232

The Delock PCI Express card expands the PC with two external serial RS-232 ports. Various devices, such as scanners, protocol converters, IoT devices, etc., can be connected to the card.

Low Profile Form Factor
With the included low profile brackets, the PCI Express card can also be installed in a mini-PC.

Specifications

• Connections:

external: 2 x serial RS-232 DB9 connectors
internal: 1 x PCI Express x1, V1.1

• Chipset: WCH CH382L
• Compatible with 16C550 / 16C750 UART
• Data transfer rate up to 921.6 Kbps
• Buffer: 256 bytes for each port
• Data bits: 5, 6, 7, 8
• Stop bits: 1, 2
• Parity bit: even, odd, none, mark, space
• Flow control: none, hardware RTS/CTS, software XON/XOFF
• Operating temperature: -20 °C to 80 °C

System Requirements

• Linux Kernel 4.15 or higher
• Windows Server 2008 R2/Server 2012/Server 2012 R2/Server 2016
• Windows 8.1/8.1-64/10/10-64/11
• PC with an available PCI Express slot

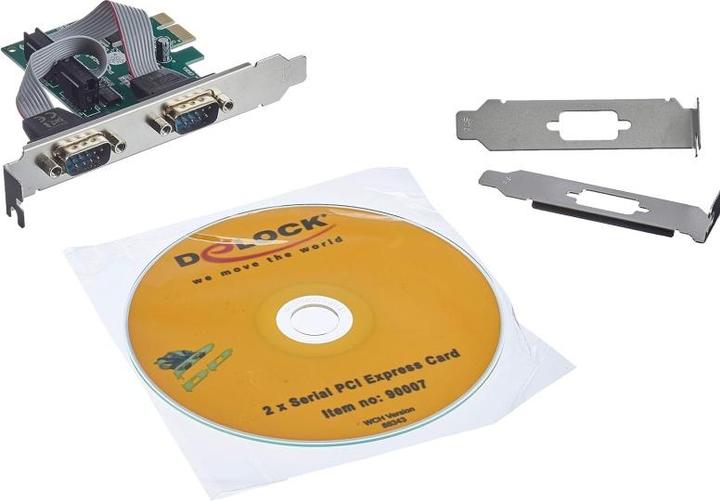

Package Contents

• PCI Express card
• 2 x low profile brackets
• Driver CD
• User manual.
