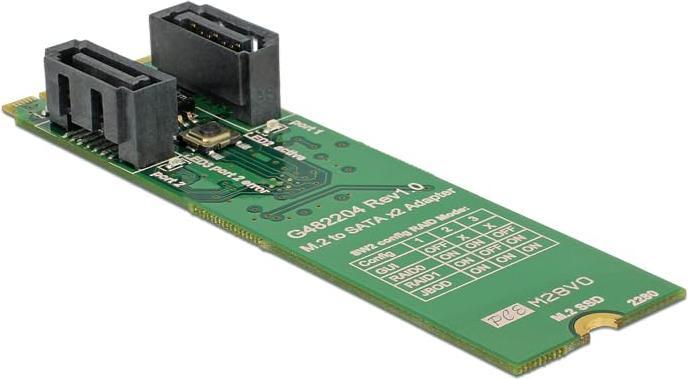

Delock M.2 to 2xSATA adapter with RAID

This Delock converter expands the system with two SATA connections. When using more than one SATA port, there is the option to utilize different RAID modes.

Note: This item supports a chipset-based RAID function. Management and configuration of the RAID mode is not possible through the operating system or BIOS. Various diagnostic software is not compatible with this solution. The SMART function is not supported. JBOD is only supported on SATA controllers with port multiplier functionality.

Specifications:

• Connections:

1 x 59 Pin M.2 Key B+M connector
2 x SATA 6 Gb/s 7 Pin connectors

• Chipset: Asmedia ASM1092R
• Interface: SATA
• Form factor: M.2 2280
• Suitable for M.2 slot with Key M or Key B based on SATA
• Data transfer rate up to 6 Gb/s
• Supports RAID 0, 1, JBOD
• Supports HDD and SSD
• 1 x button for RAID configuration
• 1 x DIP switch for RAID mode
• Dimensions (LxWxH): approx. 80 x 22 x 11 mm

System requirements:

• Windows 7/7-64/8.1/8.1-64/10/10-64/11, Linux from kernel 3.3.0 / kernel 4.9.4
• An available M.2 Key M or Key B slot

Package contents:

• Converter
• User manual.
