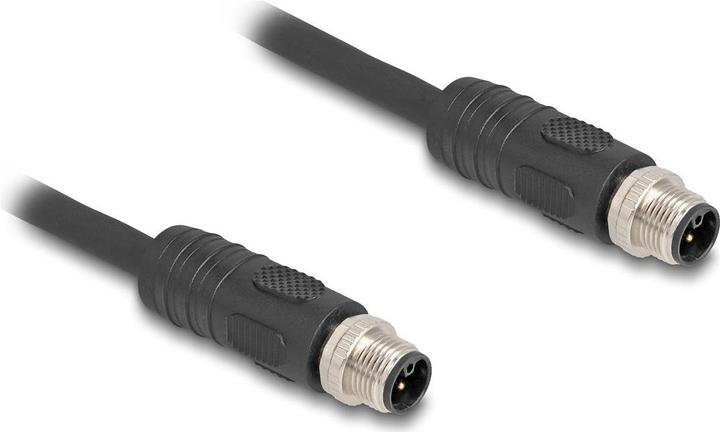

Delock M12 cable L-coded 4 pin plug to plug PUR schl

This M12 sensor cable by Delock is used for direct current applications. The L-coded version has 4 current contacts with a rated current of 12 A at 63 V, which can be used to reliably transmit currents. It can supply power to fieldbus components, power supply units, industrial machines, and motors, where a high current and low voltage are required.

Technical data:

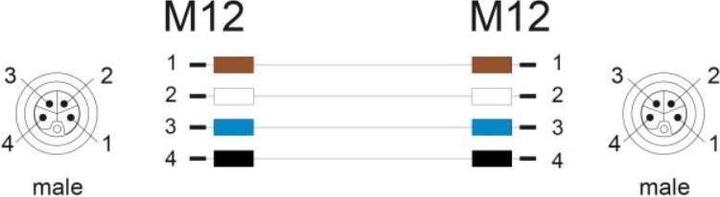

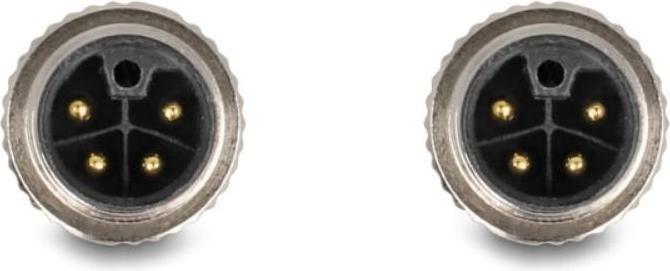

• Connection 1: 1 x M12 plug 4 pin L-coded
• Connection 2: 1 x M12 plug 4 pin L-coded
• Copper cable
• Unshielded
• Wire cross-section: 16 AWG (1.5 mm²)
• Rated current: 12 A / 63 V
• Width across flats: SW13
• Cable diameter: approx. 7.2 mm
• Cable sheath material: PUR
• Suitable for drag chains
• Drag chain speed: up to max. 5 m/s
• Tightening torque: 0.6 Nm
• Bending radius (fixed): 5 x outer diameter
• Bending radius (movable): 10 x outer diameter
• Max. number of bending cycles: 5,000,000
• Max. number of torsion cycles: 500,000
• Torsional stress: ± 180 °/m
• Operating temperature (fixed): -40 °C ~ 80 °C
• Operating temperature (movable): -25 °C ~ 70 °C
• Flammability class: UL94HB
• Halogen-free, silicone-free, oil-resistant
• Protection class: IP66 / IP67
• Thread material: die-cast zinc
• Colour: black

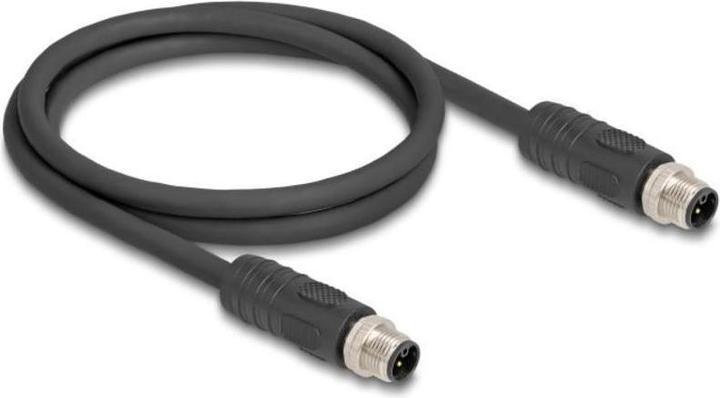

• Length incl. connections: approx. 1 m

Package contents:

• M12 cable

Packaging:

• Resealable bag.
