−13%

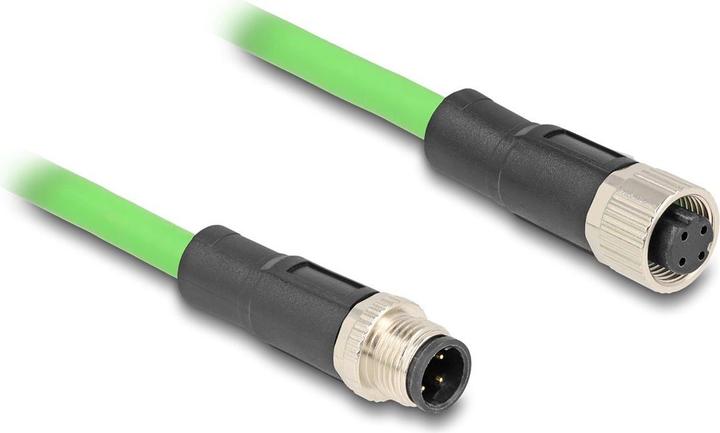

Delock M12 cable D-coded 4 pin plug to socket PUR (TPU) 5 m

SF/UTP, 5 m
was CHF53.90 CHF9.38/1m
Ratings
BrandMore from Delock
Delivered between Tue, 12.5. and Fri, 5.6.
More than 10 items ordered
Free shipping starting at 50.–

Length3

Product details

This industrial Ethernet cable by Delock can be used to connect various components with M12 connectors, such as for machine control or automation.

Drag chain suitability
The high-quality cable supports up to 10 million bending cycles, making it suitable for use in drag chains and other harsh environments.

Robust cable sheath made of PUR (TPU)
The polyurethane (PUR) cable sheath is oil and UV-resistant, meaning the cable also meets the high requirements for industrial applications, such as in the tool and automation sector.

Specification

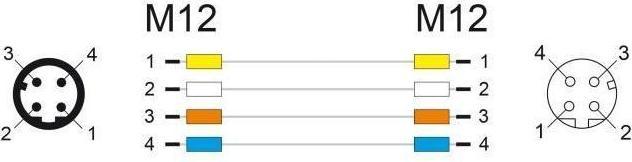

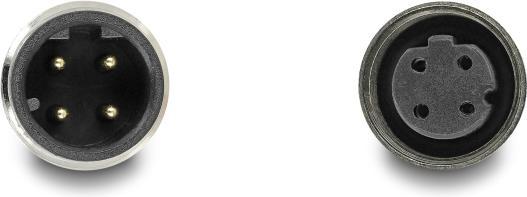

  • Connections:

1 x M12 plug D-coded 4 pin
1 x M12 socket D-coded 4 pin

  • Suitable for drag chains
  • SF/UTP
  • Shielding: aluminium foil, tinned copper braiding
  • Copper cable
  • Wire cross-section: 22 AWG (0.326 mm²)
  • Cable diameter: approx. 6.5 mm
  • Cable sheath material: PUR (TPU)
  • Max. number of bending cycles: 5,000,000
  • Smallest bending radius:

52.0 mm for fixed installation
97.5 mm for flexible installation

  • Oil-resistant
  • UV-resistant
  • Flammability class: UL 94
  • Operating temperature:
  • 25 °C ~ 80 °C for fixed installation
  • 25 °C ~ 70 °C for flexible installation
  • Protection class: IP67
  • Colour: green
  • Length incl. connections: approx. 5 m

Package contents

  • M12 cable

Packaging

  • Resealable bag.

Key specifications

Patch cable type
Copper cable
Contact assignment
crossover

General information

Item number
41286906
Manufacturer
Delock
Category
Network cables
Manufacturer no.
80409
Release date
22.12.2023

Colour

Cable colour
Green

Material

Material
PUR (TPU)
Material of the isolation
Polyurethane

Cable properties

Connection A
M12
Connection B
M12
Cable Application
Network
Cable design
Round
Plug type
Flat
Cable connection
Extension (m/f)
American Wire Gauge (AWG)
22
Temperature range
-25° - 80 °C

Patch cable properties

Patch cable type
Copper cable

Twisted-pair cable properties

Contact assignment
crossover
Shield
SF/UTP

Origin

Country of origin
China

Voluntary climate contribution

CO₂ emissions
29.23 kg
Climate contribution
CHF 0.69

Scope of delivery

Items per sales unit
1x
Scope of delivery
M12 cable D-coded 4 pin plug to socket PUR (TPU) 5 m

Product dimensions

Diameter
6.50 mm
Length
5 m
Width
6.50 mm
Weight
289 g
