Delock External enclosure for M.2 NVMe PCIe SSD or SATA SSD

Description

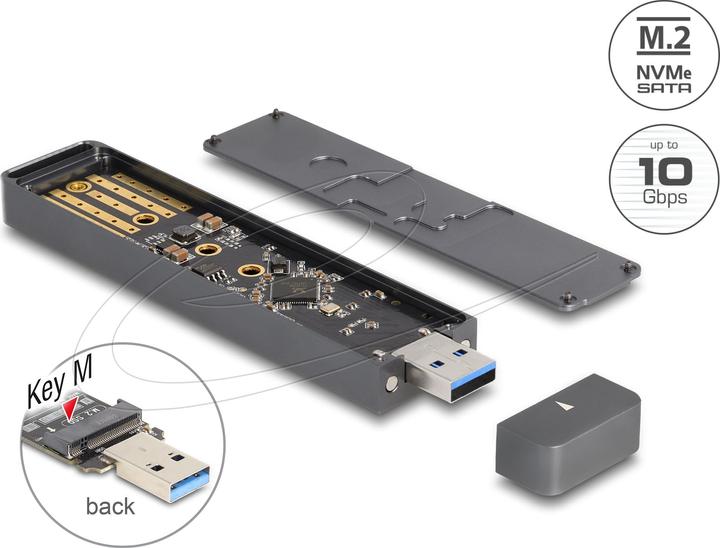

This enclosure from Delock allows the installation of an M.2 PCIe NVMe SSD or an M.2 SATA SSD in 2280, 2260, 2242 and 2230 format. It can be connected to a PC or notebook via USB. The robust metal housing ensures an optimal temperature of the memory.

Combo housing
The big advantage of this Delock M.2 enclosure is that both SATA and PCIe (NVMe) M.2 SSDs can be inserted into the enclosure. The memory is automatically recognised by the chipset and can then be used.

Specifications
Connections:
external: 1 x USB 10 Gbps type-A connector
internal: 1 x M.2 Key M slot
Chipset: Realtek RTL9210B
Supports M.2 modules in 2280, 2260, 2242 and 2230 format with Key M or Key
B+M on SATA basis or PCIe (NVMe) basis
Maximum height of the components on the module: 1.5 mm, use of
two-sided modules possible
Supports NVM Express (NVMe)
Bootable
Data transfer rate up to 10 Gbps
Metal housing
Dimensions (LxWxH): approx. 121 x 26 x 10 mm
Hot plug, plug & play

System requirements
Android 11.0 or higher
Chrome OS
Linux Kernel 5.15 or higher
Mac OS 12.4 or higher
Windows 8.1/8.1-64/10/10-64/11
PC or notebook with a free USB Type-A port

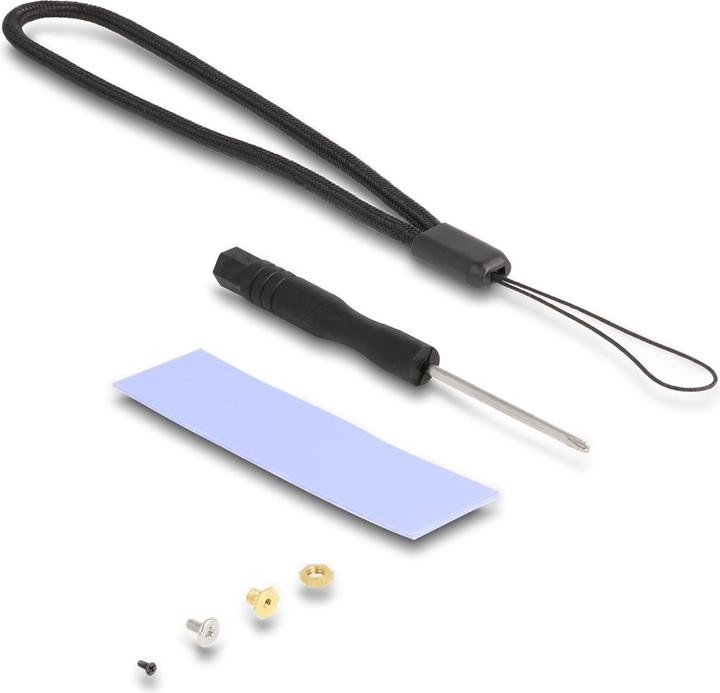

Package contents
External M.2 enclosure
Mounting material
Screwdriver
1 x thermal pad
Lanyard
Instruction manual.
