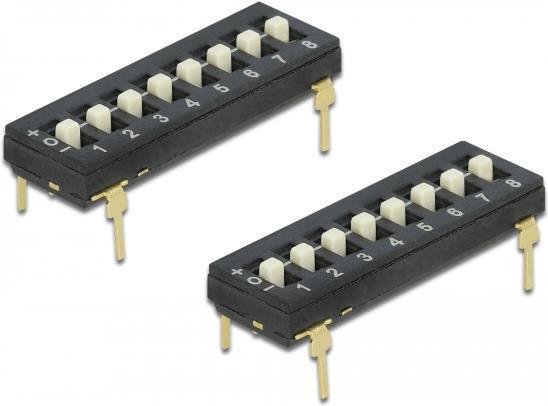

Delock DIP-Switch Tri-State 8-digit 2,54mm pitch THT vertical black 2 pieces

This DIP switch from Delock is suitable for soldering onto a circuit board.

Tri-State Circuit
The Tri-State switch consists of 8 individual switches, each with 3 switching positions (+, 0, -) per position. This allows for more coding options than a standard DIP switch with only 2 switching positions (On / Off).

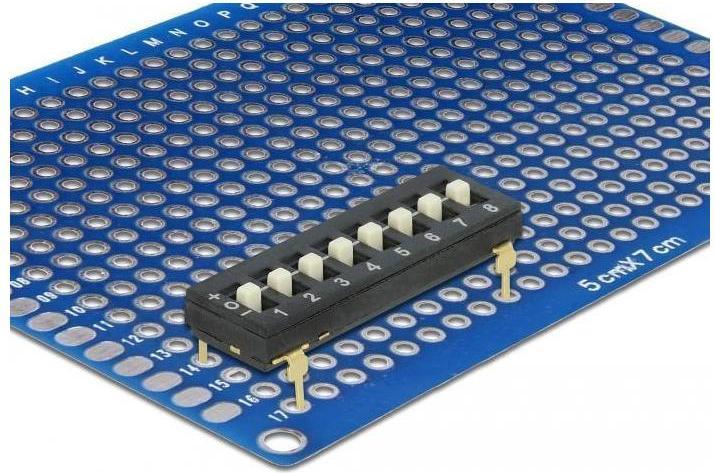

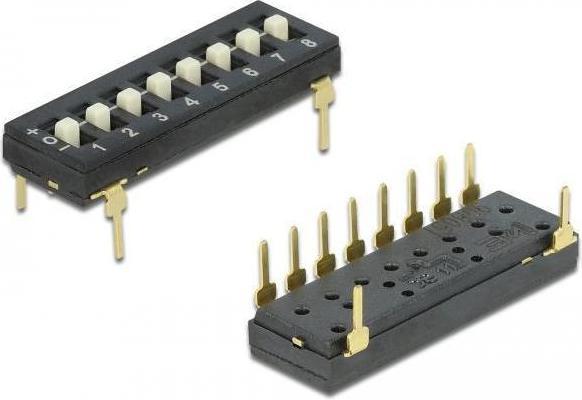

THT Mounting Technology
The solder pins attached to the DIP switch are inserted into contact holes on the circuit board and soldered on the underside. The switching rows are used for setting configurations and adjusting parameters.

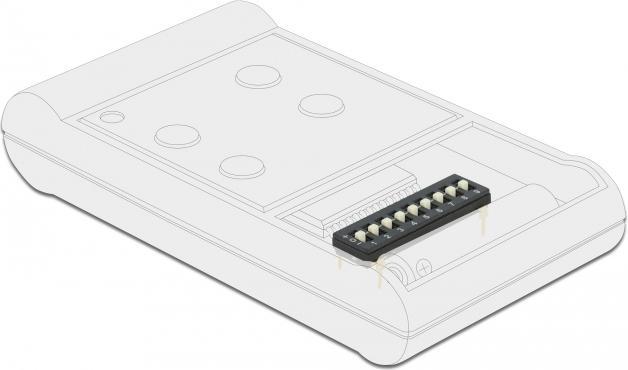

Versatile Application
The DIP switch is primarily used in telecommunications, computing, and measurement technology.

Specifications

• Connections: 1 x 10 solder pins
• Number of positions: 8
• Pitch: 2.54 mm
• Switching positions: 3 (+, 0, -)
• Switching capacity: 25 mA, 24 VDC
• Insulation resistance: 1000 MΩ / 500 VDC
• Voltage withstand: 500 VAC / 1 minute
• Soldering temperature: 250 °C for about 3 seconds
• Ambient temperature: -40 °C ~ 85 °C
• Operating temperature: -30 °C ~ 85 °C
• Material: Plastic
• Color: Black
• Dimensions (LxWxH): approx. 21.8 x 7.0 x 3.2 mm

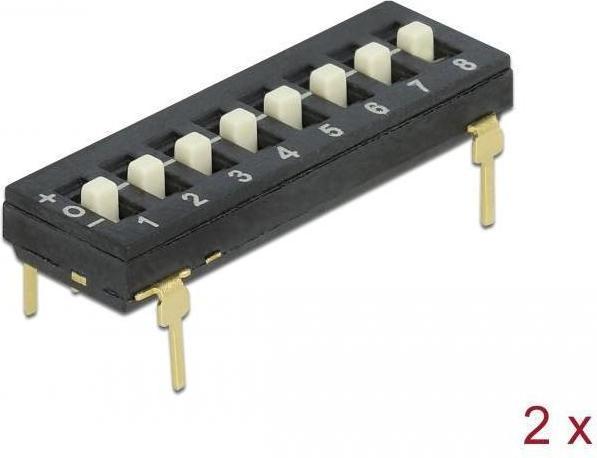

Package Contents

• 2 x DIP switches.
