Delock 95232 - Mini PCIe I/O PCIe Full Size 2x Serial RS-232, 1x Parallel

Mini PCIe I/O PCIe Full Size 2x Serial RS-232, 1x Parallel

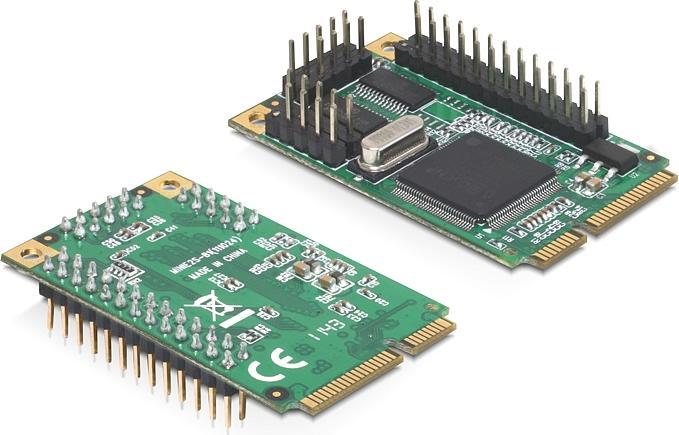

The Mini PCIe module by Delock expands your system with two serial and one parallel interface, which can be accessed through the slot bracket. You can connect various serial and parallel devices such as printers, scanners, and modems to this adapter.

Package content:

• Mini PCIe module

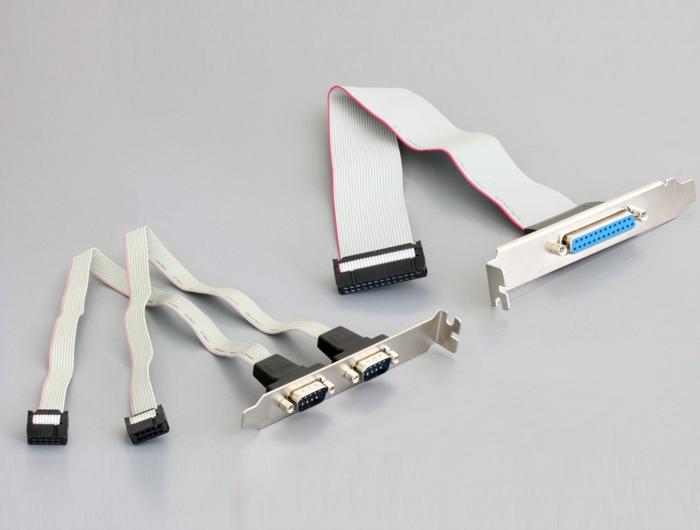

• 1x slot bracket with two serial ports
• 1x slot bracket parallel
• Driver CD
• User manual
• Connectors: PCB: 2x 9-pin COM port pin header male, 1x 25-pin parallel port pin header male; Cable: 2x serial RS-232 DB9 male with nuts, 1x parallel DB25 female with nuts
• Chipset: Moschip MCS9901
• Form factor: Mini PCIe full size
• Interface: PCI Express revision 1.1
• Data transfer rate up to 230.4 Kbps
• Compatible with 16C450/16C550 UART
• FIFO: 256 byte
• Mode: Serial: RS-232; Parallel: SPP/PS2/EPP/ECP - IEEE1284
• Cable length with connectors: Serial approximately 30 cm; Parallel approximately 28 cm

System requirements:

• Linux Kernel 2.6 or above
• Windows 7/7-64/8.1/8.1-64/10/10-64
• Motherboard with a free Mini PCIe slot with a PCIe interface.
