Delock 61858 Docking station SATA HDD USB3.0

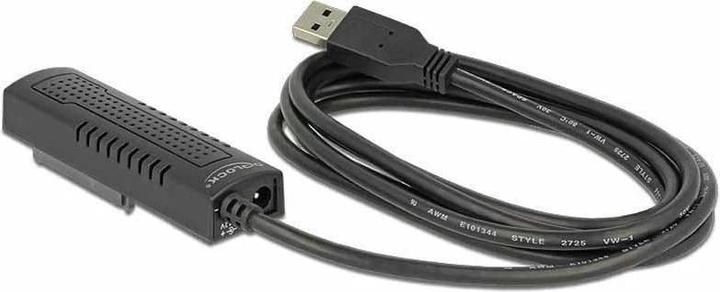

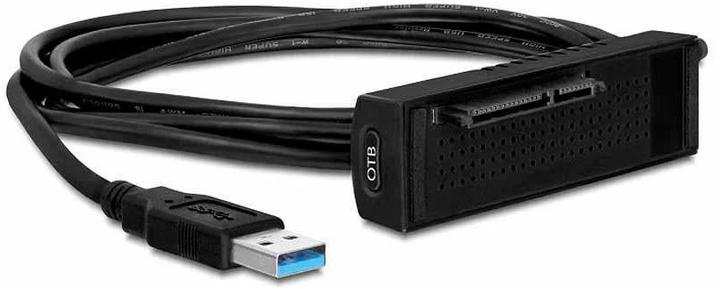

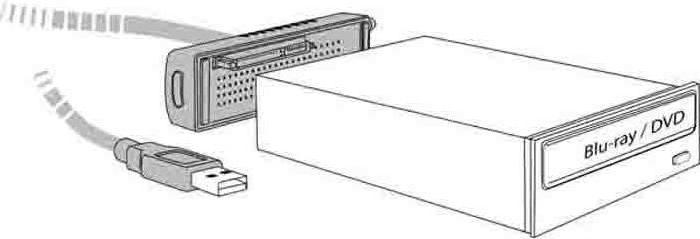

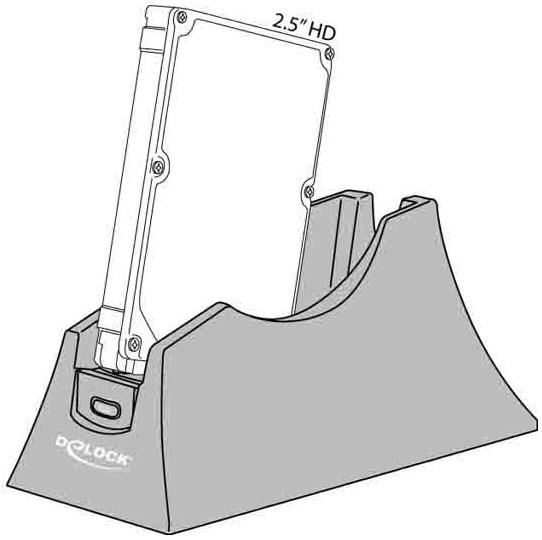

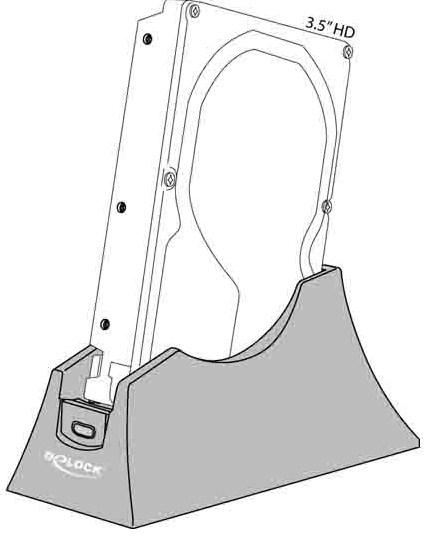

This HDD docking station from Delock allows for the external connection of a 2.5 or 3.5 inch SATA HDD via the USB interface. The docking cable can be connected to your hard drive without the use of the holder. Using the included cover plates, you can protect the hard drive on the circuit board side from potential short circuits by simply inserting them into the mounting holes of your 2.5 or 3.5 inch HDD. You can also connect a Blu-ray or DVD drive to the docking cable and link it to your system. With the one-touch backup function, you can easily synchronize your hard drive data at the push of a button.

Specifications:

• Connections:
• 1 x SuperSpeed USB 5 Gbps (USB 3.2 Gen 1) Type-A plug
• 1 x SATA 6 Gb/s 22 pin socket
• 1 x DC power socket
• Function buttons:
• 1 x Backup button
• For hard drives, SSDs
• For optical drives when using the docking cable
• Data transfer rate up to 5 Gbps
• With backup function
• LED display
• Plug & Play

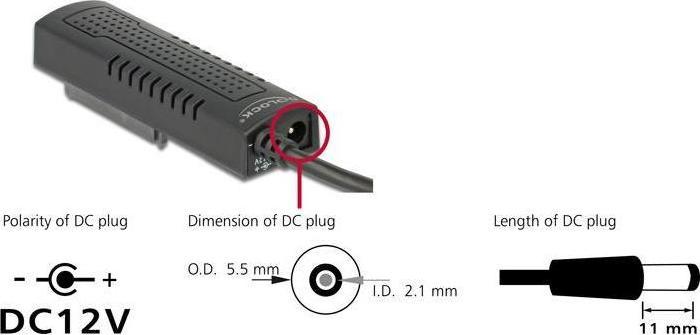

Power supply specifications:

• Plug-in power supply
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.6 A
• Output: 12 V / 2 A
• Outer dimensions, positive inside
• Dimensions:
• inside: approx. 2.1 mm diameter
• outside: approx. 5.5 mm diameter
• Length: approx. 11 mm

System requirements:

• Windows Vista/7/7-64/8.1/8.1-64/10/10-64/11
• PC or notebook with a free USB Type-A port

Package contents:

• Docking cable

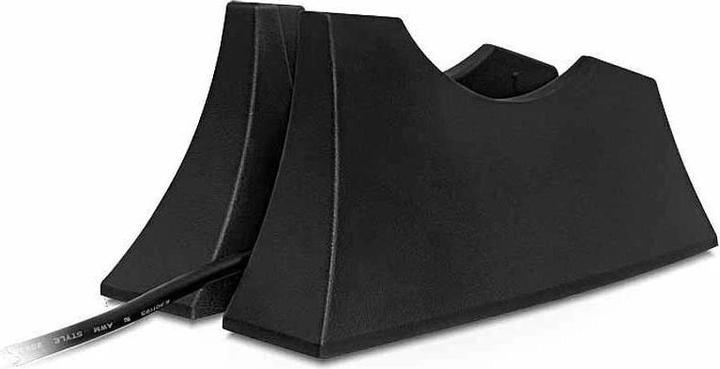

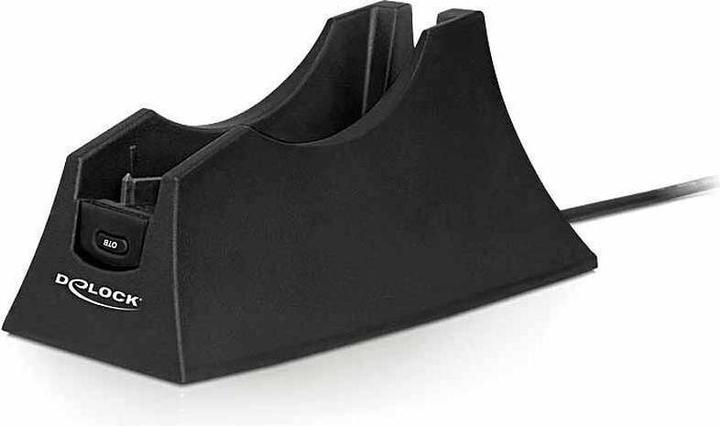

• HDD holder

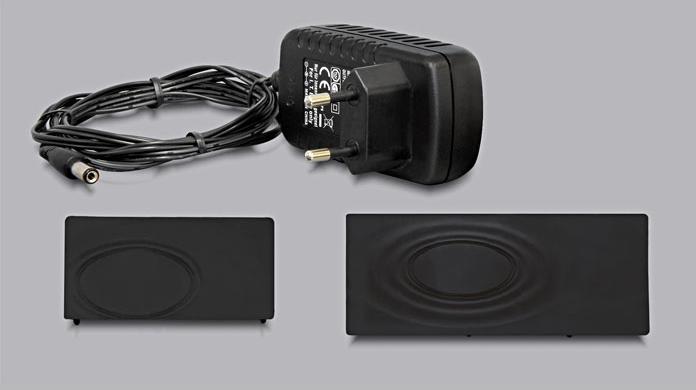

• 3.5 inch cover plate, 2.5 inch cover plate
• External power supply 12 V / 2 A
• Backup software
• User manual.
