Delock 47019 - Removable frame for 2x 2.5 U.2 NVMe SSD Slim Bay

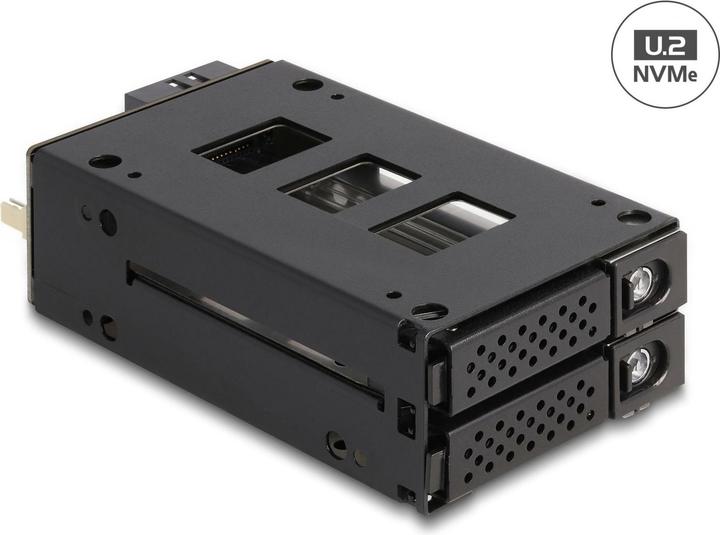

This stable metal hot-swap frame from Delock can be installed in a free 5.25-inch bay of a PC with the help of an optional frame. Additionally, it can be directly used in a server rack or 19-inch storage enclosure.

Quick SSD Swapping
Thanks to the special mechanism, the SSDs can be quickly and easily exchanged. For example, backups can be removed and stored in a secure location.

Insert with Lock and Suspension
To ensure that only authorized personnel can remove the hard drive, the hot-swap frame features a key lock. The sturdy metal carrier has springs on the top and bottom that reduce vibrations.

Specifications

• Connections:

internal:
2 x SFF-8639 socket
external:
2 x SFF-8643 socket
1 x SATA 15 pin connector
1 x 3 pin header for fan

• Suitable for 2.5-inch U.2 NVMe SSDs:

Hard drive height up to 15 mm

• Data transfer rate up to 32 Gbps
• Interface: PCIe Rev. 3.0
• Key-lock
• 4 x LED display
• Dimensions (LxWxH): approx. 140 x 72 x 40 mm

System Requirements

• Linux Kernel 5.4 or higher
• Windows 8.1/8.1-64/10/10-64/11
• Windows Server 2019
• Two free U.2 ports
• Power supply with a free SATA power connector

Package Contents

• Hot-swap frame

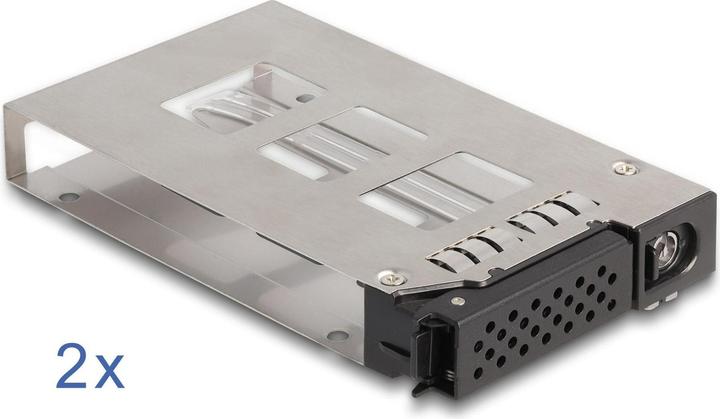

• 2 x 2.5-inch hot-swap frame inserts
• 2 x keys
• Screws
• User manual.
