Delock 42022

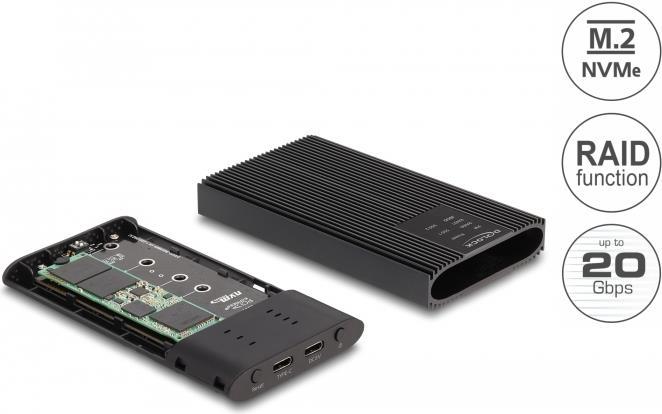

This aluminum enclosure from Delock allows for the installation of two M.2 PCIe NVMe SSDs in 2280, 2260, 2242, and 2230 formats. It can be connected to a PC or laptop via USB. The robust metal housing with cooling fins ensures optimal temperature for the storage.

M.2 PCIe SSD RAID
When two SSDs are installed, there is the option to use various RAID modes.

Tool-free SSD installation

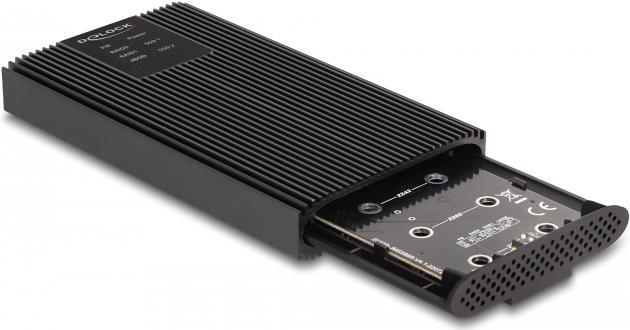

The special feature of this enclosure is that no tools are required to install the M.2 SSD. The cover can be pushed back with a little pressure, the SSD is secured to the board with a rubber nub, and then the cover is snapped back on until it clicks into place.

Specifications

• Connections:

external:
1 x USB 20 Gbps USB Type-C port
1 x USB Type-C port (5 V power supply)
internal: 2 x M.2 Key M slots

• Chipset: JMicron JMS586R
• Supports M.2 modules in 2280, 2260, 2242, and 2230 formats with Key M or Key B+M based on PCIe (NVMe)
• Maximum height of components on the module: 1.5 mm, use of double-sided modules possible
• Supports NVM Express (NVMe)
• Supports S.M.A.R.T.
• Supports UASP
• Data transfer rate up to 20 Gbps
• 1 x Power button
• 1 x Reset button
• DIP switch for RAID mode
• Supports RAID 0, RAID 1, JBOD, Port Multiplier
• 7 x LED indicators
• Hot Plug, Plug and Play
• Bootable
• Metal housing
• Color: black
• Dimensions (LxWxH): approx. 120 x 68 x 17 mm

Power supply specifications

• Plug-in power supply
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.6 A
• Output: 5.0 V / 3.0 A / 15.0 W

System requirements

• Android 11.0 or higher
• Chrome OS
• Linux Kernel 5.15 or higher
• Mac OS 13.1 or higher
• Windows 10/10-64/11
• iPad Air (4th generation) or higher
• iPad Pro (3rd generation) or higher
• Surface Pro 7
• Device with a free USB Type-C port or with a free Thunderbolt 3 or Thunderbolt 4 port

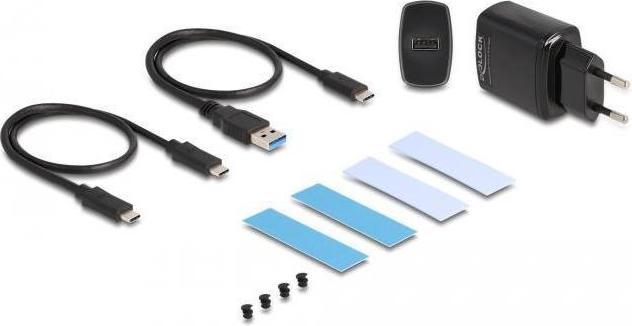

Package contents

• External enclosure.
