Delock 3.5? Removable rack for 4 x M.2 NVMe SSD with OcuLink S

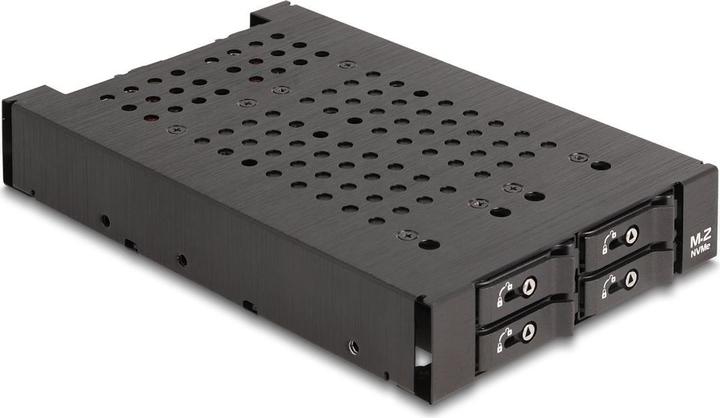

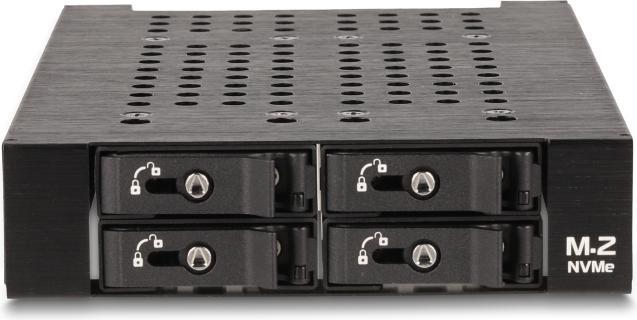

This stable metal hot-swap frame from Delock can be installed in a 3.5" bay of a PC and provides four M.2 slots in 2280, 2260, 2242, or 2230 formats.

Quick SSD swapping
Thanks to the special mechanism, the SSDs can be quickly and easily exchanged. For example, backups can be removed and stored in a secure location.

Slot with lock and suspension
To ensure that only authorized personnel can remove the hard drive, the hot-swap frame features a key lock. The sturdy metal carrier has springs on the top and bottom that absorb vibrations, thus supporting use in mobile devices.

Note
It must be ensured that the slot is fully inserted, as otherwise no connection to the SSD can be established.

Technical specifications
Connections:
Hot-swap frame:
internal:
4 x M.2 Key M slot
external:

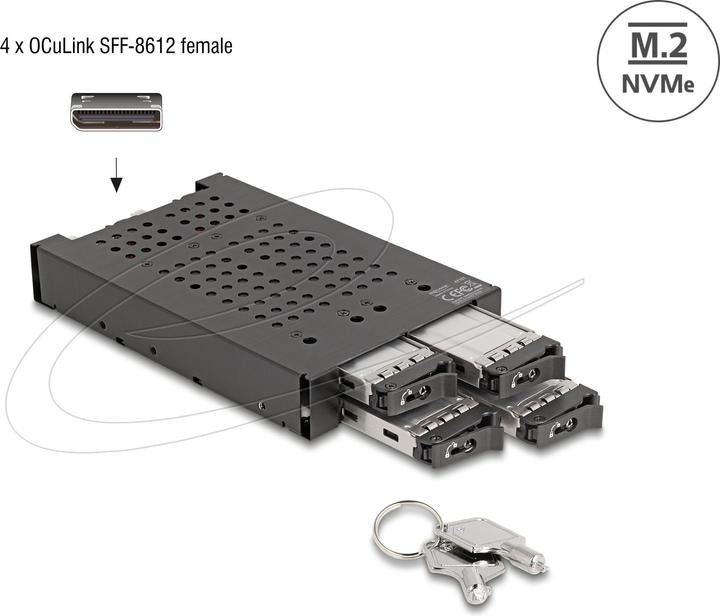

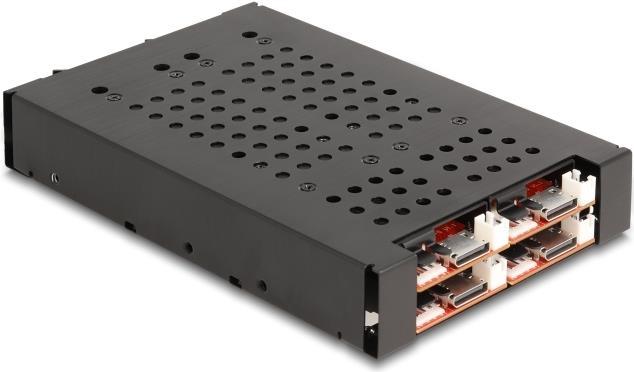

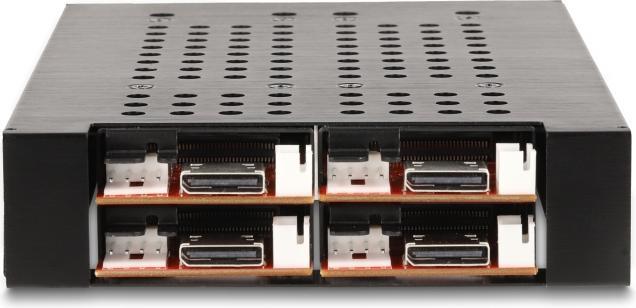

4 x OCuLink SFF-8612 socket
4 x 4-pin floppy connector
4 x 2-pin header for fan
M.2 slot:
1 x M.2 Key M connector
1 x M.2 Key M slot

• Compatible with PCI Express V4.0
• Interface: PCIe / NVMe
• Supports M.2 modules in formats 2280, 2260, 2242, and 2230 with Key M or Key B+M based on PCIe
• Maximum height of components on the module: 1.5 mm, use of double-sided populated modules possible
• 4 x LED display
• Bootable, from UEFI version 2.3.1
• Metal M.2 slot
• Supports NVM Express (NVMe)
• Supports S.M.A.R.T.
• Key-lock
• Dimensions (LxWxH): approx. 159 x 100 x 25 mm

System requirements

• Linux Kernel 6.2 or higher
• Windows 10/10-64/11
• Windows Server 2022
• PC with a free 3.5" bay
• A free OCuLink connection for each M.2 slot
• Power supply with a free SATA power connector

Package contents

• 3.5" hot-swap frame with 4 x M.2 slot

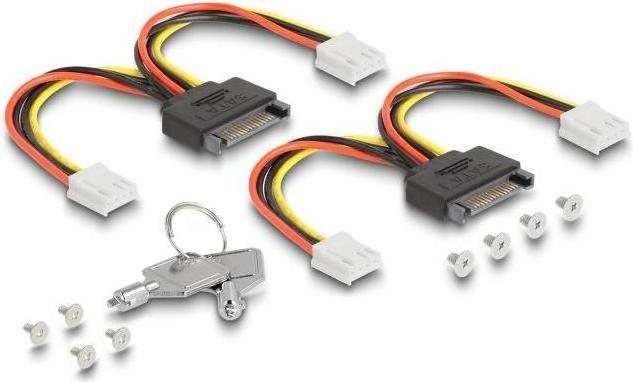

• 2 x SATA 15-pin to 2 x 4-pin floppy socket cables, length approx. 12 cm
• 2 x keys
• 4 x screws I 6.0 x 5.0...
