Delock 3.5? Removable frame for 2 x M.2 NVMe SSD with Slim SAS

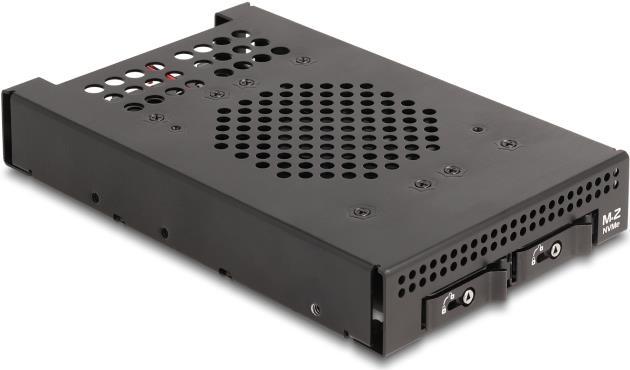

This stable metal exchange frame from Delock can be installed in a 3.5" bay of a PC and provides two M.2 slots in the 2280, 2260, 2242, or 2230 format.

Quick SSD Replacement
Thanks to the special mechanism, the SSDs can be quickly and easily swapped out. For example, backups can be removed and stored in a secure location.

Tray with Lock and Suspension

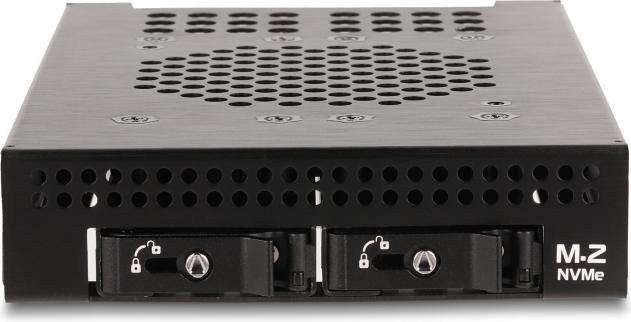

To ensure that only authorized personnel can remove the hard drive, the exchange frame features a key lock. The sturdy metal carrier has springs on the top and bottom that absorb vibrations, thus supporting use in mobile devices.

Note
It must be ensured that the tray is fully inserted; otherwise, no connection to the SSD can be established.

Technical Specifications
Connections:
Exchange Frame:
Internal:
2 x M.2 Key M Slot
External:

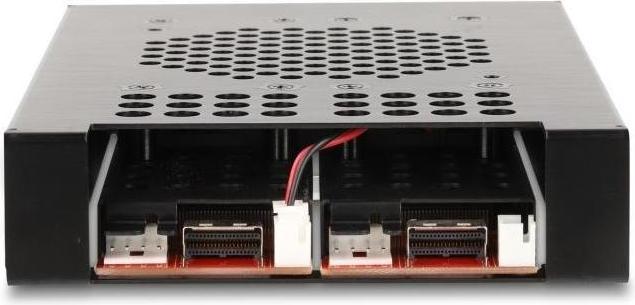

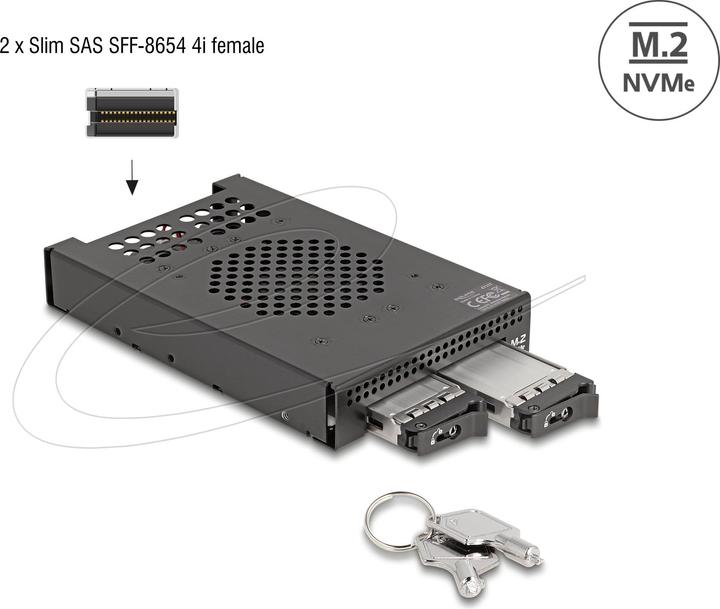

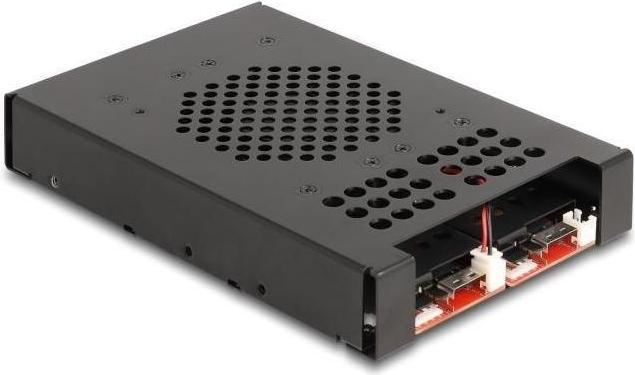

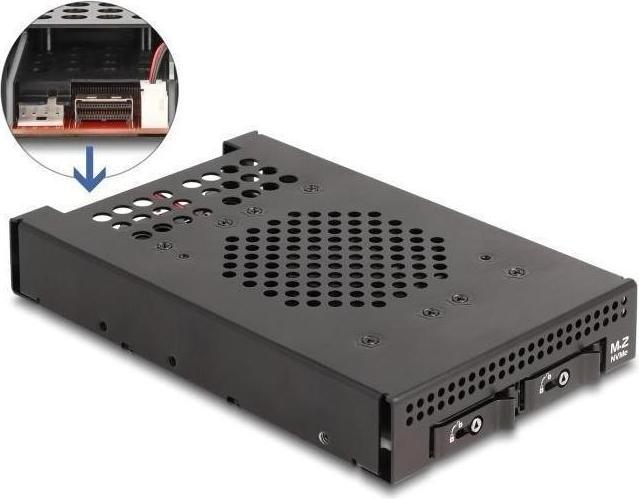

2 x Slim SAS SFF-8654 4i Socket
2 x 4 Pin Floppy Connector
2 x 2 Pin Header for Fan
M.2 Tray:
1 x M.2 Key M Connector
1 x M.2 Key M Slot

• Compatible with PCI Express V4.0
• Interface: PCIe / NVMe
• Supports M.2 modules in the 2280, 2260, 2242, and 2230 formats with Key M or Key B+M based on PCIe
• Maximum height of components on the module: 1.5 mm, use of double-sided modules possible
• 1 x Fan
• 2 x LED Indicators
• Bootable, from UEFI version 2.3.1
• Metal M.2 tray

• Supports NVM Express (NVMe)
• Supports S.M.A.R.T.
• Key-Lock
• Dimensions (LxWxH): approx. 159 x 100 x 25 mm

System Requirements

• Linux Kernel 6.2 or higher
• Windows 10/10-64/11
• Windows Server 2022
• PC with a free 3.5" bay
• A free Slim SAS SFF-8654 connection for each M.2 slot
• Power supply with a free SATA power connector

Package Contents

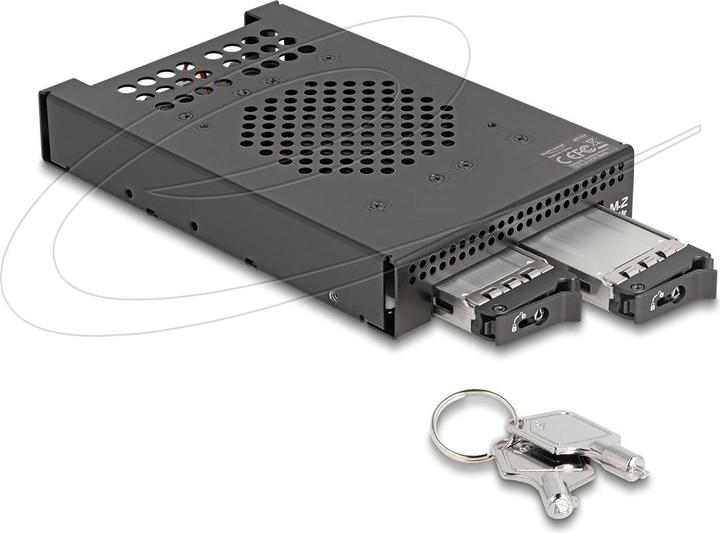

• 3.5" exchange frame with 2 x M.2 tray

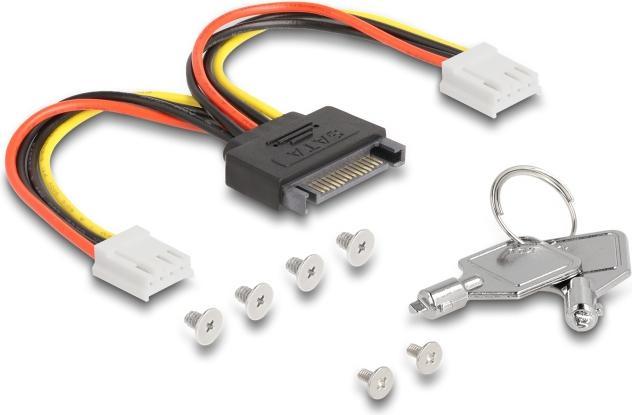

• SATA 15 Pin to 2 x 4 Pin Floppy Socket Cable, length approx. 12 cm
• 2 x Keys.
