Dehn Ball fixed point D 20mm straight w. 754235
DiSEqCOnly 3 items in stock at third-party supplier
Product details

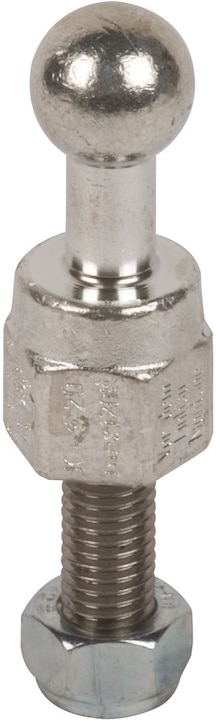

DEHN Ball Anchor Point KFP 20 M12 35 SSM
Manufacturer: DEHN
Designation: Ball anchor point D20mm straight
Type: KFP 20 M12 35 SSM
Max. Short-Circuit Current: 33.5 kA
Design: straight
Mounting Type: with threaded bolt
Connection of the EuK device: Ball anchor point 20 mm
Max. Cable Cross-Section Copper: 120 mm²

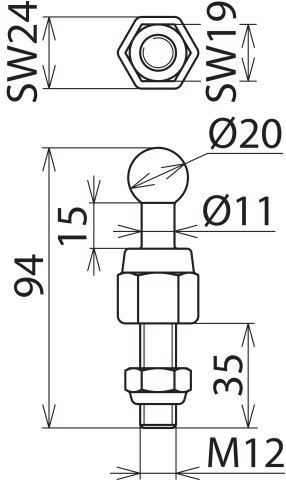

Diameter of Anchor Point: 20 mm
Additional Details: Straight ball anchor point, with threaded bolt and nut as phase-side and earth-side connection point according to DIN VDE 0683-100 (EN/IEC 61230) on the conductor and grounding system. High mechanical strength due to the cold-formed thread. Also suitable as a cable lug and busbar connection according to DIN 43673-1.
EAN: 4013364004221.
Item number | 33784970 |
Manufacturer | Dehn |
Category | Satellite accessories |
Manufacturer no. | 754235 |
Release date | 17.5.2023 |
Satellite accessory type | DiSEqC |
Country of origin | Germany |
