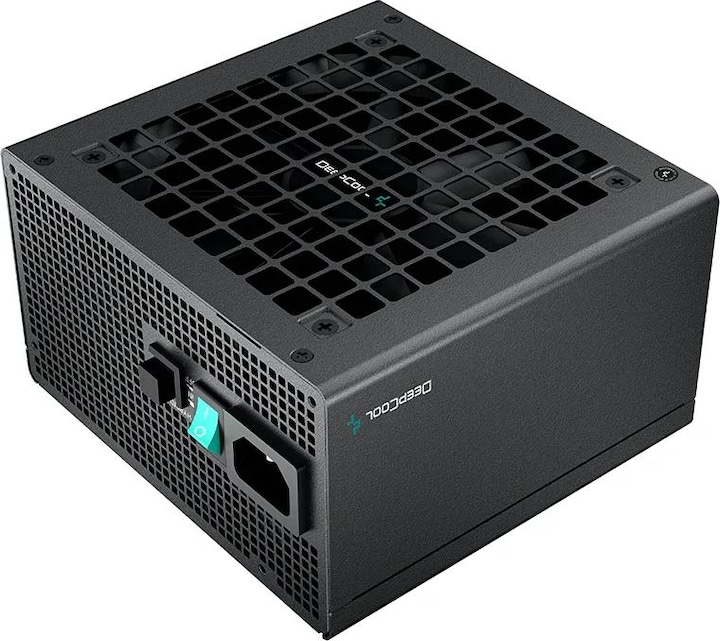

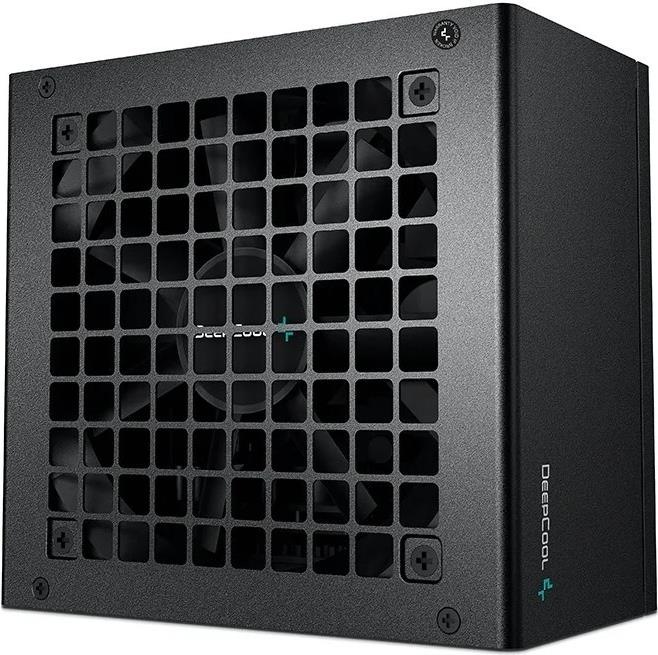

Deepcool PQ750M ATX12V V2.4, 750 W, 80 PLUS Gold Certified

PQ750M 750W, PC power supply
The modular PC power supply of the DeepCool PQ-M series with 80 PLUS Gold represents another generation of power supply and is characterized by quiet operation with high efficiency and stability for powerful PCs. Certified according to 80 PLUS Gold for the generation of environmentally friendly and even power while reducing waste heat and noise. The PQ-M series achieves an efficiency of 90% at 50% system load.
Type: PC power supply
Color: Black
EAN code: 6933412701828
Manufacturer No.: R PQ750M FA0B EU
Series: PQ-M

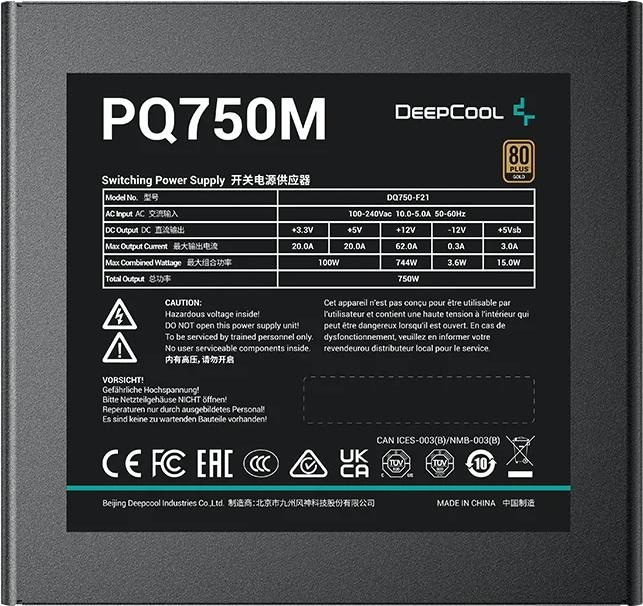

Performance: Total | 750W
Power: +12V total | 744W
Power: +3.3V/+5V total | 100W
Performance: Efficiency | up to 90%
Performance: input voltage range | 100-240 volts
Power: input current | 5 A at 230 volts / 50 Hz, 10 A at 110 volts / 60 Hz
Default: ATX12V 2.4
Design: ATX
Certification: 80 PLUS Gold
Amperages: +3.3 V | 20A
Amperages: +5 V | 20A
Currents: +5 Vsb | 3 A
Amperages: -12 V | 0.3A
Amperages: +12 V total | 62A
Amperages: +12 V1 | 62A
Power Factor Correction: Active PFC

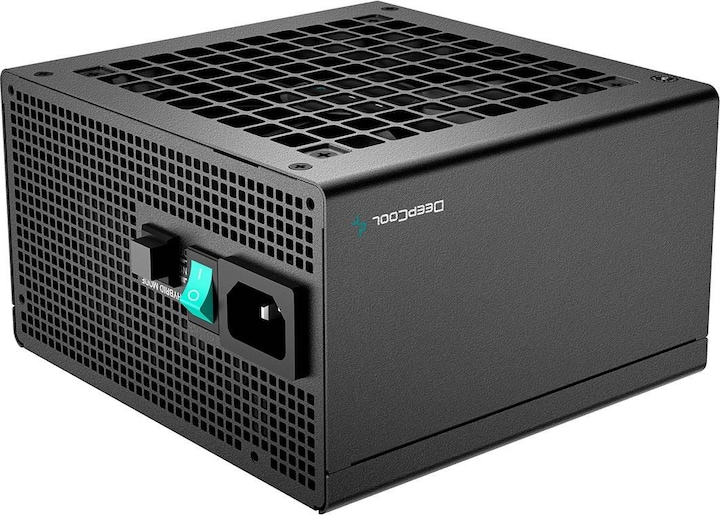

Switch: 1x power switch

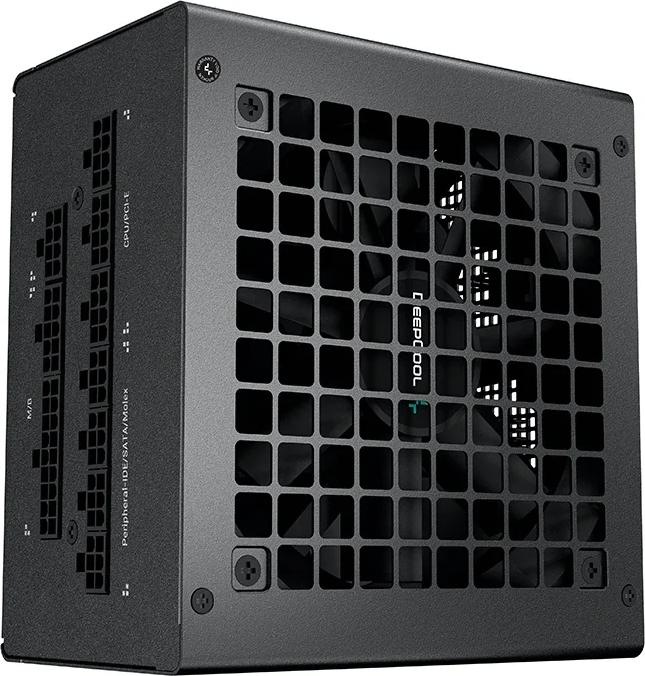

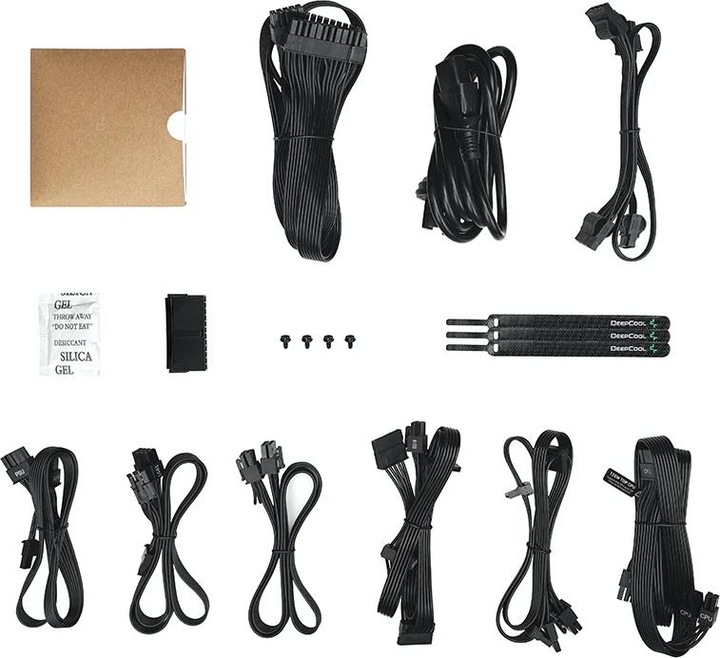

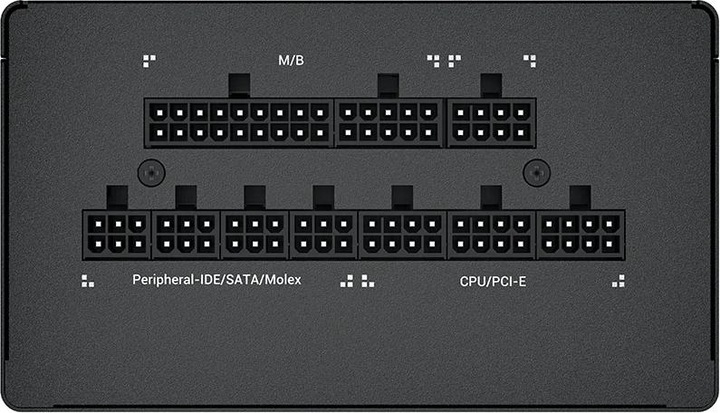

Connectors: 1x 24-pin ATX12V-2.x, 2x 4+4-pin 12V, 3x 4-pin 5.25", 3x 6+2-pin graphics, 4x 15-pin SATA
Cables: Cable Management | Yes

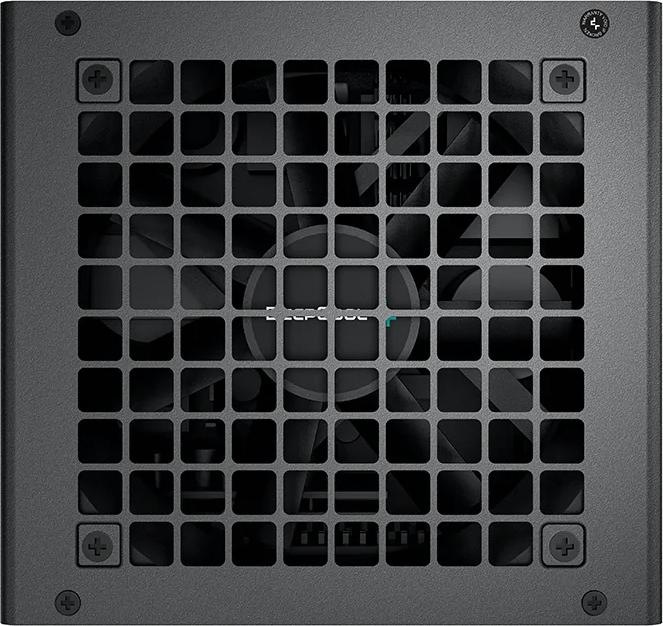

Cooling: number of fans | 1x 120mm fan
Cooling: Regulation | Temperature controlled
Protections: Over Current Protection (OCP), Over Voltage Protection (OVP), Overload Protection (OLP/OPP), Short Circuit Protection (SCP), Over Temperature Protection (OTP)
Dimensions: Width: 150mm x Height: 86mm x Depth/Length: 140mm.
