Deepcool PQ1000M ATX12V V2.4, 1000 W, 80 PLUS Gold Certified

1000 W
Delivered between Sat, 2.8. and Fri, 8.8.
Only 4 pieces in stock at supplier
free shipping

Product details

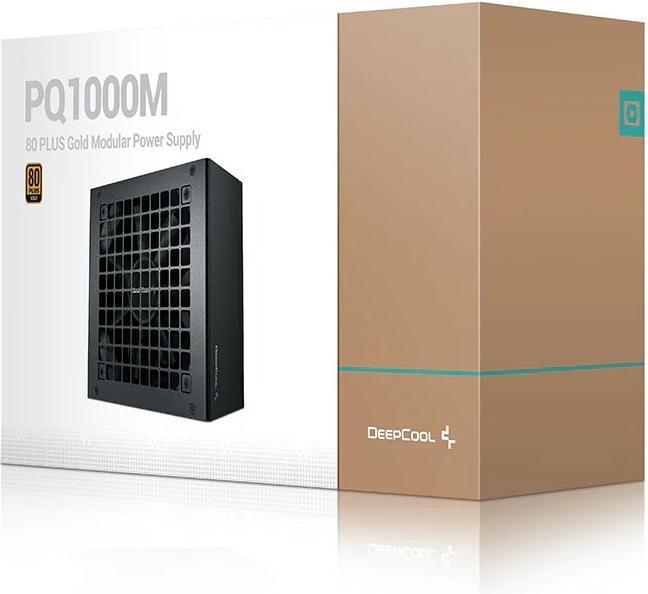

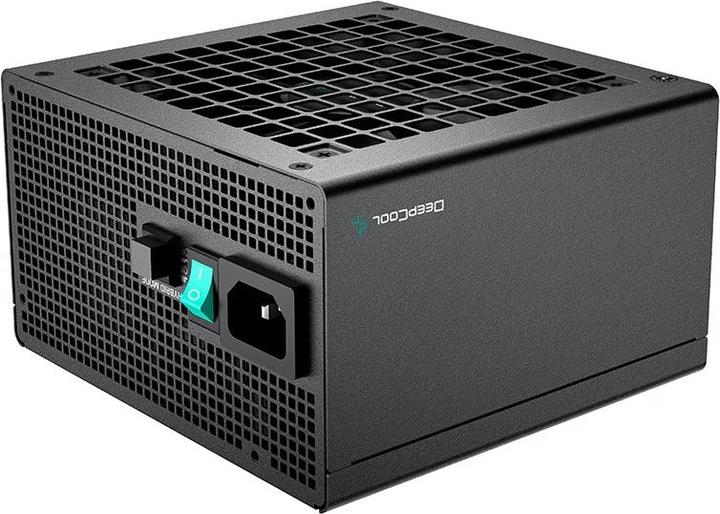

PQ1000M 1000W PC power supply

The modular power supply of the DeepCool PQ-M series with 80 PLUS Gold represents another generation of power supply and is characterized by quiet operation with high efficiency and stability for powerful PCs. Certified according to 80 PLUS Gold for the generation of environmentally friendly and even power while reducing waste heat and noise. The PQ-M series achieves an efficiency of 90% at 50% system load.

Type: PC power supply
Color: Black

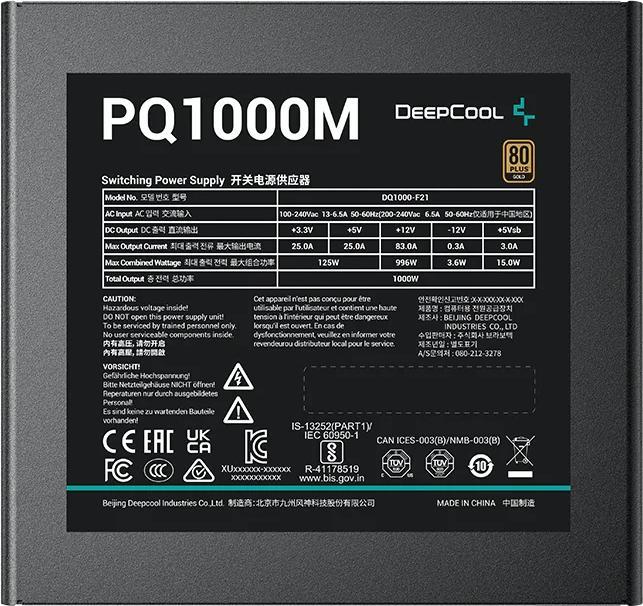

Performance: Total | 1000W
Power: +12V total | 996W
Power: +3.3V/+5V total | 125W
Performance: Efficiency | up to 90%
Performance: Input voltage range | 100-240 volts
Power: Input current | 6.5 A at 230 volts / 50 Hz, 13 A at 110 volts / 60 Hz
Default: ATX12V 2.4
Design: ATX
Certification: 80 PLUS Gold
Amperages: +3.3 V | 25A
Amperages: +5 V | 25A
Currents: +5 Vsb | 3 A
Amperages: -12 V | 0.3A
Amperages: +12 V total | 83 A
Amperages: +12 V1 | 83 A
Power Factor Correction: Active PFC
Switch: 1x power switch

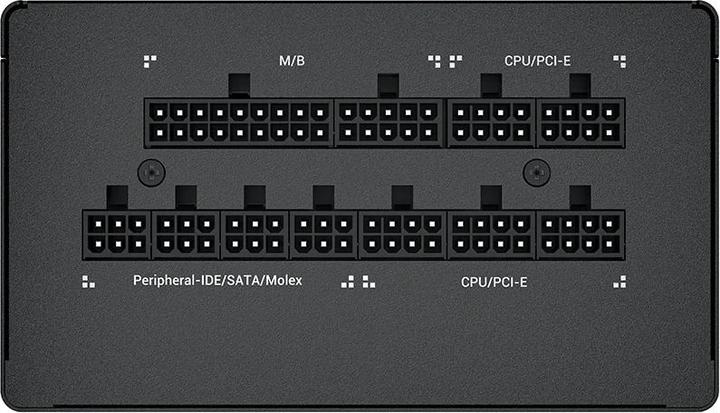

Connectors: 1x 24-pin ATX12V-2.x, 2x 4+4-pin 12V, 5x 4-pin 5.25", 3x 6+2-pin graphics, 10x 15-pin SATA
Cables: Cable Management | Yes
Cooling: Number of fans | 1x 120mm fan
Protections: Over Current Protection (OCP), Over Voltage Protection (OVP), Overload Protection (OLP/OPP), Short Circuit Protection (SCP), Over Temperature Protection (OTP)
Dimensions: Width: 150mm x Height: 86mm x Depth/Length: 140mm.

Key specifications

Form factor
ATX
80 PLUS certificate
Gold
Modularity
Permanently installed
Internal connection options
20+4 PIN ATX power connector (1x)6-pin PCI Express (1x)
Item number
21085844

General information

Manufacturer
Deepcool
Category
Power Supply PC
Manufacturer no.
R-PQA00M-FA0B-EU
Release date
7.6.2022

Colour

Colour
Black
Exact colour description
Black

Power supply properties

Form factor
ATX
Efficiency
90 %
80 PLUS certificate
Gold
Modularity
Permanently installed

Power supply connectors

Internal connection options
20+4 PIN ATX power connector (1x)6-pin PCI Express (1x)

Cooling properties

Cooling method
Active cooling
Number of fans
1 x
Fan diameter
120 mm
LED colour
without LED

Safety

Power protection features
OCPOPPOTPOVPSCP

Power supply

Power
1000 W

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
Modular cable

Product dimensions

Length
14 cm
Width
15 cm
Height
8.60 cm
Weight
500 g

Package dimensions

Length
31.60 cm
Width
18.70 cm
Height
11.50 cm
Weight
2.88 kg
