Product details

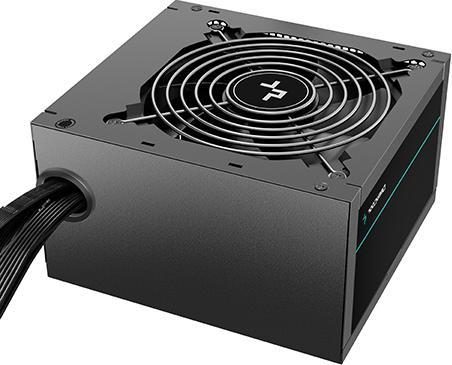

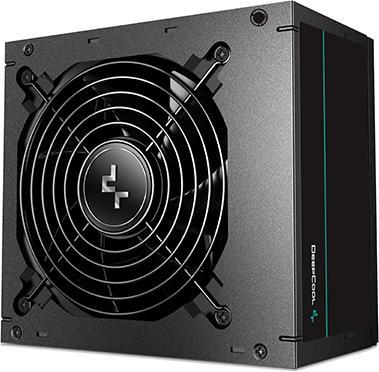

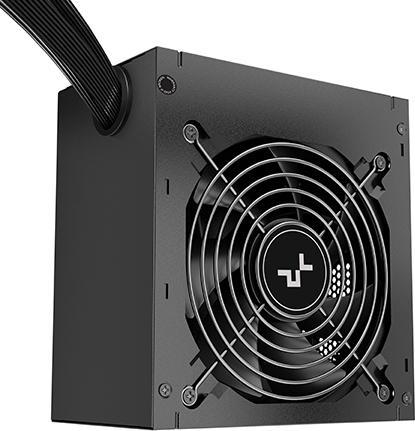

PM500D 500W, PC Power Supply

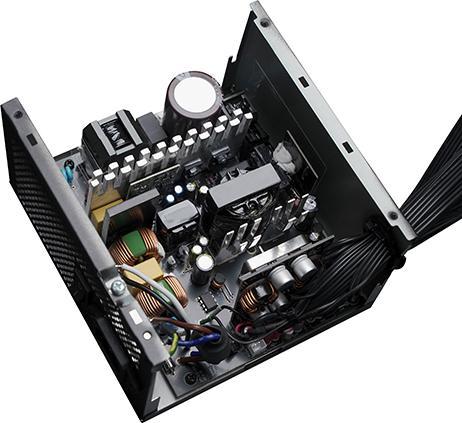

The non-modular PC power supply DeepCool PM500D 500W from the PM-D series is 80 PLUS Gold certified and offers efficient power delivery with high performance. All of this is available at an affordable price. For solid performance and minimal signal noise, the power supplies in the PM-D series feature a full-bridge LLC topology with DC-DC conversion, providing excellent reliability. Each PM-D power supply meets modern design standards for consistent voltage stability and complies with Intel's power supply guidelines, allowing for instant wake-up from sleep or standby mode.
Type: PC Power Supply
Color: Black
Manufacturer Part Number: R-PM500D-FA0B-EU
Series: PM-D
Power: Total | 500 W
Power: +12 V total | 498 W
Power: +3.3 V/+5 V total | 100 W
Power: Efficiency | up to 90 %
Power: Input Voltage Range | 100-240 Volts
Standard: ATX12V 2.4
Form Factor: ATX
Certification: 80 PLUS Gold

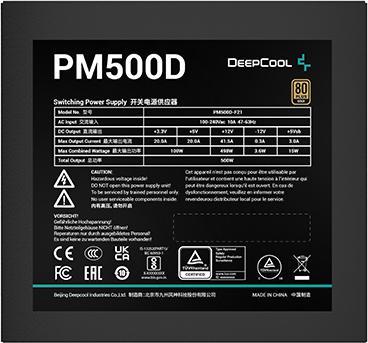

Current Ratings: +3.3 V | 20A
Current Ratings: +5 V | 20A
Current Ratings: +5 Vsb | 3 A
Current Ratings: -12 V | 0.3 A
Current Ratings: +12 V total | 41.5 A
Current Ratings: +12 V1 | 41.5A
Power Factor Correction: Active PFC

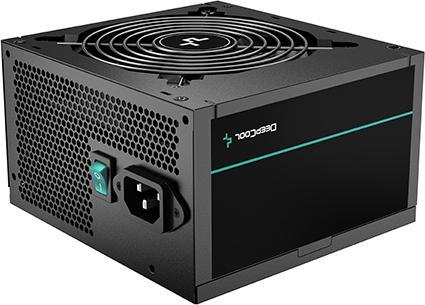

Switch: 1x Power Switch
Connectors: 1x 24-Pin ATX12V-2.x, 1x 4+4-Pin 12V, 3x 4-Pin 5.25", 2x 6+2-Pin Graphics, 6x 15-Pin SATA

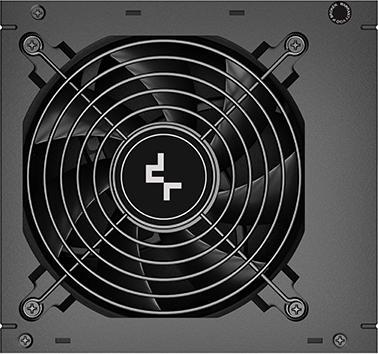

Cooling: Number of Fans | 1x 120 mm Fan
Cooling: Control | Temperature Controlled
Protection Features: Over Current Protection (OCP), Over Voltage Protection (OVP), Over Load Protection (OLP/OPP), Short Circuit Protection (SCP), Over Temperature Protection (OTP)
Dimensions: Width: 150 mm x Height: 86 mm x Depth/Length: 140 mm.
