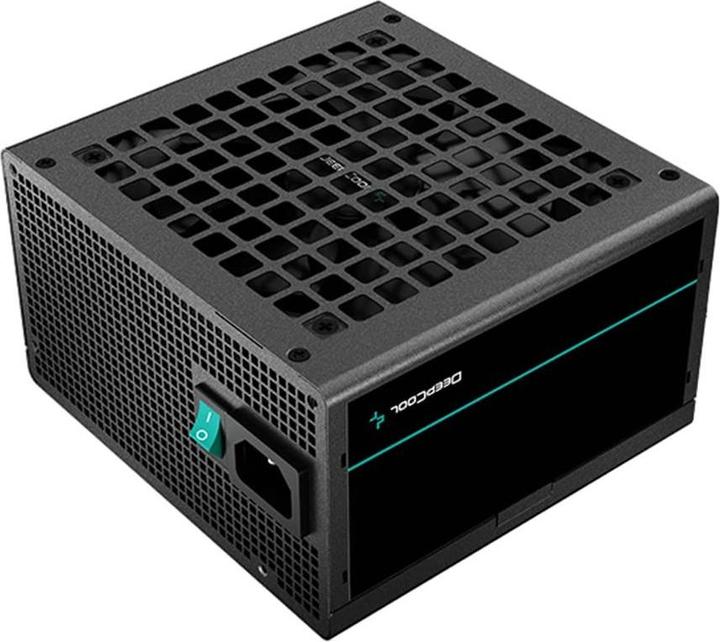

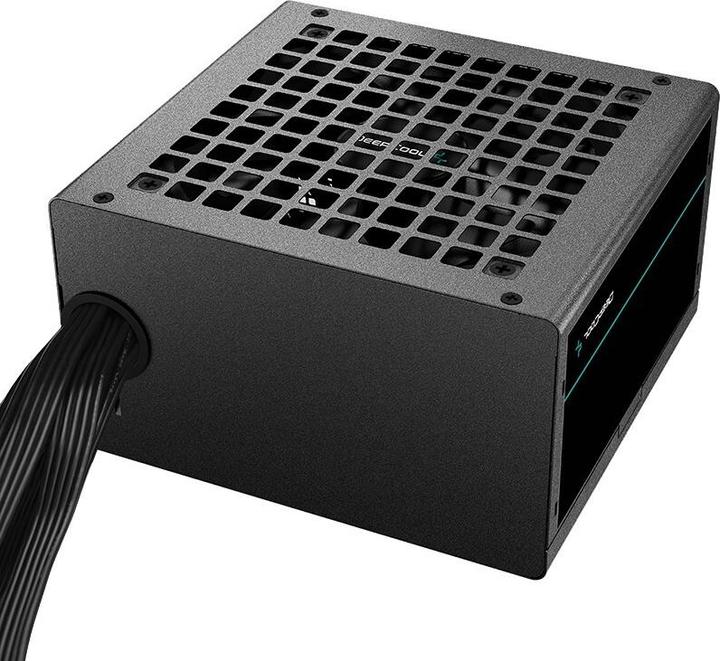

Deepcool PF600 power supply unit 20+4 pin ATX ATX Black

DeepCool PF600. Total power: 600 W, AC input voltage: 220 - 240 V, AC input frequency: 50 Hz. Motherboard connector: 20+4 pin ATX, Motherboard power cable length: 55 cm, SATA power cable length: 450,600,750,900 mm. Purpose: PC / Server, Power supply unit (PSU) form factor: ATX, 80 Plus certification: 80 PLUS. Colour of product: Black, Cooling: Active, Fan diameter: 12 cm. Cables included: AC

Performance:

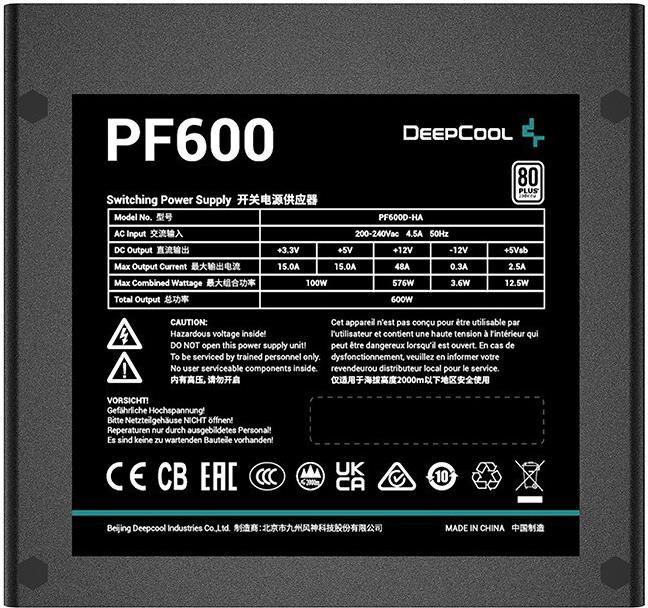

• Total power: 600 W

• AC input voltage: 220 - 240 V

• AC input frequency: 50 Hz

• Combined current (+3.3V): 100 W

• Combined current (+12V): 576 W

• Combined current (+5V): 100 W

• Combined current (-12V): 3.6 W

• Combined current (+5Vsb): 12.5 W

• Max. Output current (+3.3V): 15 A

• Max. Output current (+12V): 48 A

• Max. output current (+5V): 15 A

• Max. Output current (-12V): 0.3 A

• Max. Output current (+5Vsb): 2.5 A

• Hold time: 16 ms

• Efficiency: 85

• Power protection characteristics: Overload, overvoltage, short circuit, undervoltage

Connections and interfaces:

• Motherboard connector: 20+4 pin ATX

• Motherboard power cable length: 55 cm

• Number of SATA power connectors: 4

• SATA power cable length: 450,600,750,900 mm

• EPS power connector (4+4-pin): Yes

• Number of PCI Express power connectors 6+2pin: 2

Performances:

• Purpose: PC / Server

• Power Supply Unit (PSU) Form Factor: ATX

• 80 Plus Certification: 80 PLUS

• ATX version: 2.4

• Mean time between failures (MTBF): 100000 h

Design:

• Product colour: Black

• Cooling: Active

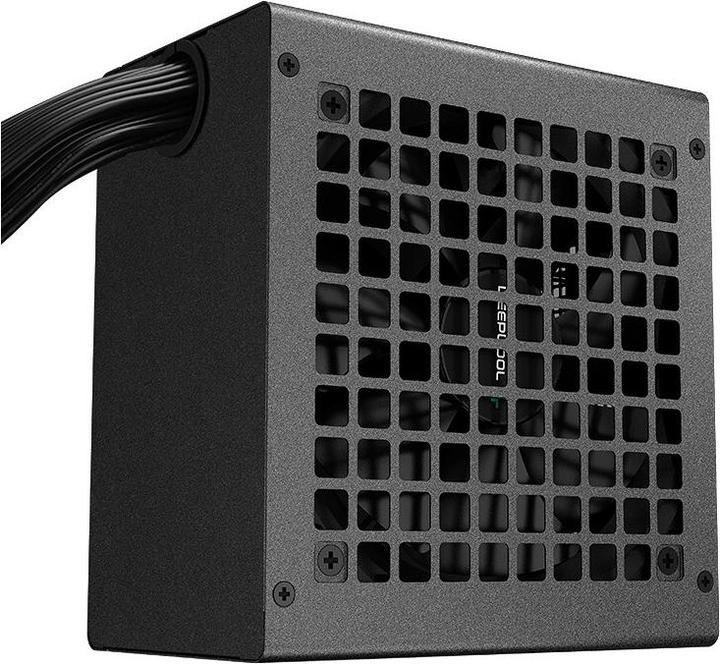

• Fan diameter: 12 cm

• Number of fans: 1 fan

• On/off switch: Yes

Operating conditions:

• Operating temperature: 0 - 30 °C

Scope of delivery:

• Cables supplied: AC

Weight and dimensions:

• Width: 150 mm

• Depth: 140 mm

• Height: 86 mm

Packaging data:

• Type of packaging: Box.
