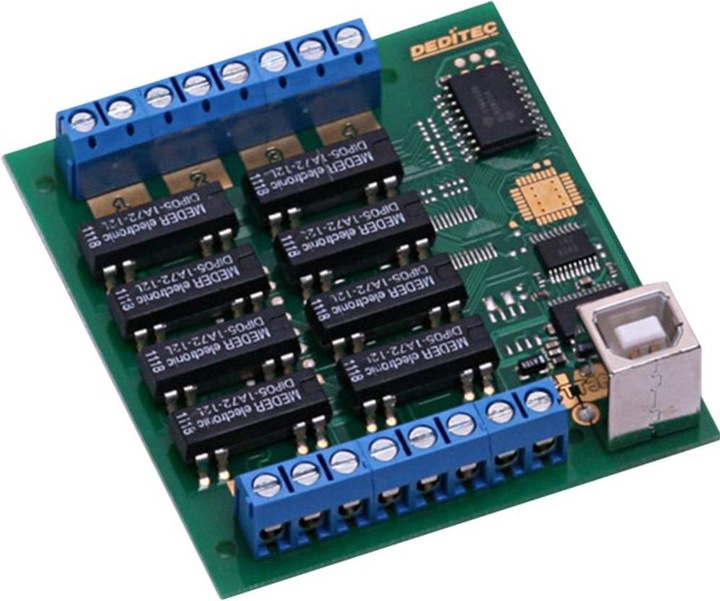

Deditec Compact USB modules Digital outputs 8 relays Mounting type Screwable Interface(s) USB

Compact USB modules with input counters and input change markers. Up to 16 identical modules can be used in a system. These affordable entry-level models offer either 8 relay outputs or 8 optocoupler inputs in a compact form.

Inputs: The inputs are galvanically isolated, with a standard input voltage of 15 - 30 V. By replacing a resistor network, the voltage can be switched to 5 - 15 V. The input counter for each channel and the input change marker detect state changes.

Outputs: Relays with a switching voltage of 36 V/DC at 15 W and 1 A are used here. A timeout protection feature ensures that the outputs are turned off in case of an error, which can be configured via software.

Multiple modules in the system: Up to 16 identical modules can be managed in a system. A Windows tool assigns a number to each module to enable unique addressing.

Software: The included driver library DELIB allows for easy addressing.
