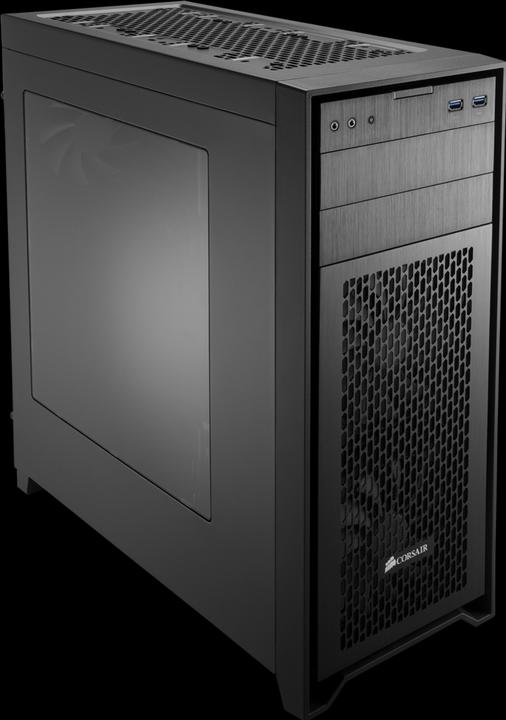

Corsair Obsidian 450D

ATX, mATX, Mini-ITX, E-ATX
47Ratings
Currently out of stock

Product details

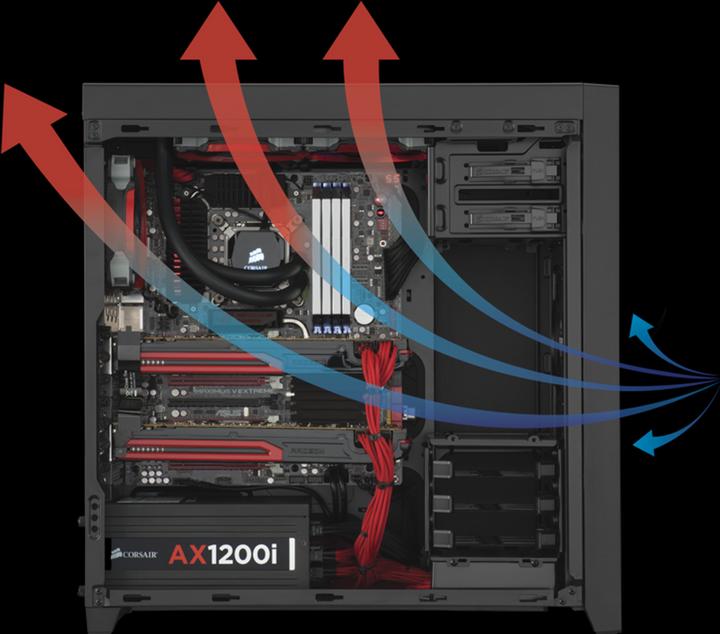

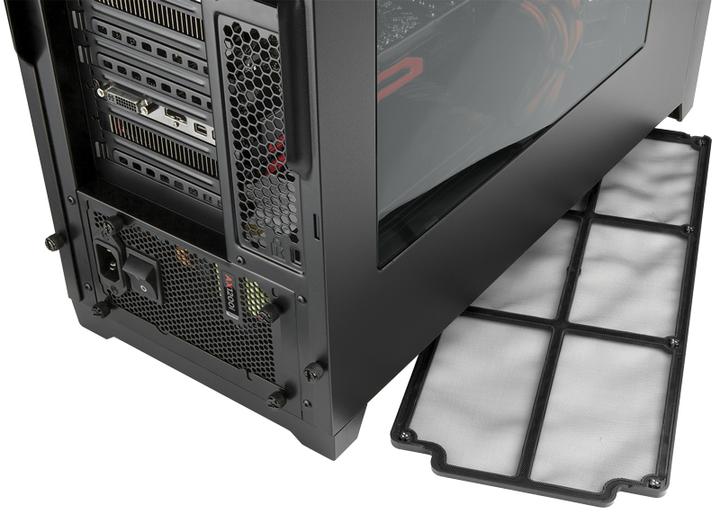

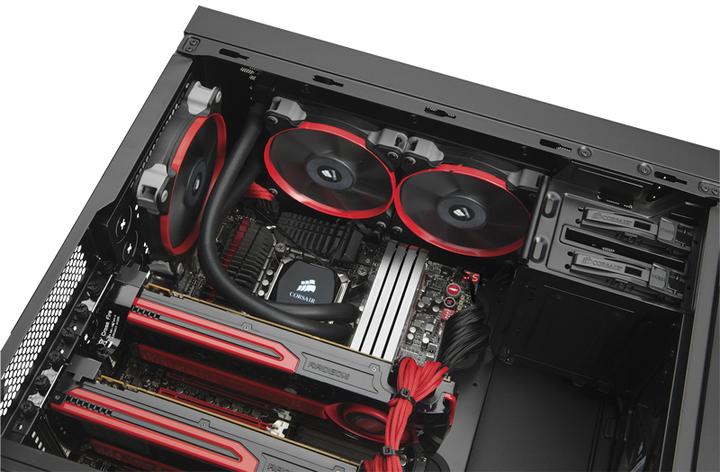

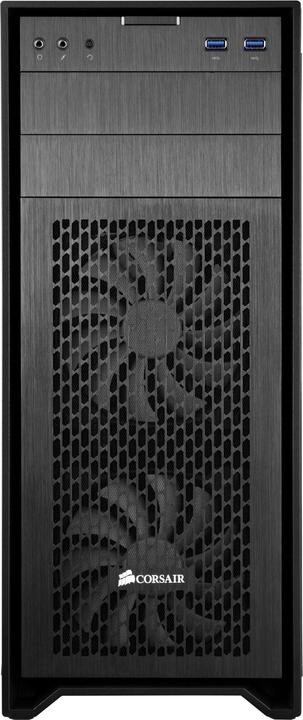

The Obsidian Series 450D features an elegant front cover made of brushed aluminum and a sturdy steel chassis, with an interior optimized for efficient, high-volume airflow. But don’t be fooled by the size of this mid-tower: the 450D can accommodate significant water cooling equipment. The two included AF140L front intake fans provide direct cooling for the graphics processors, and there are a total of seven fan mounting points for projects requiring extreme, high-volume airflow. All air intakes are protected by removable dust filters.

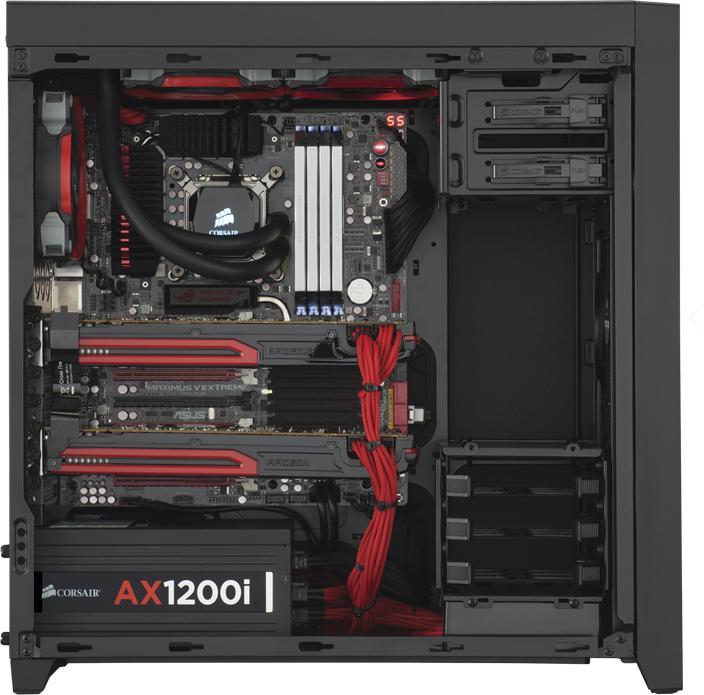

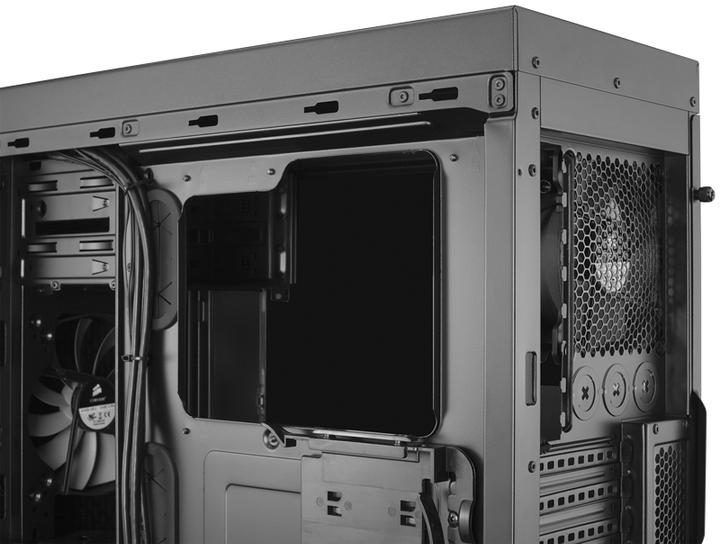

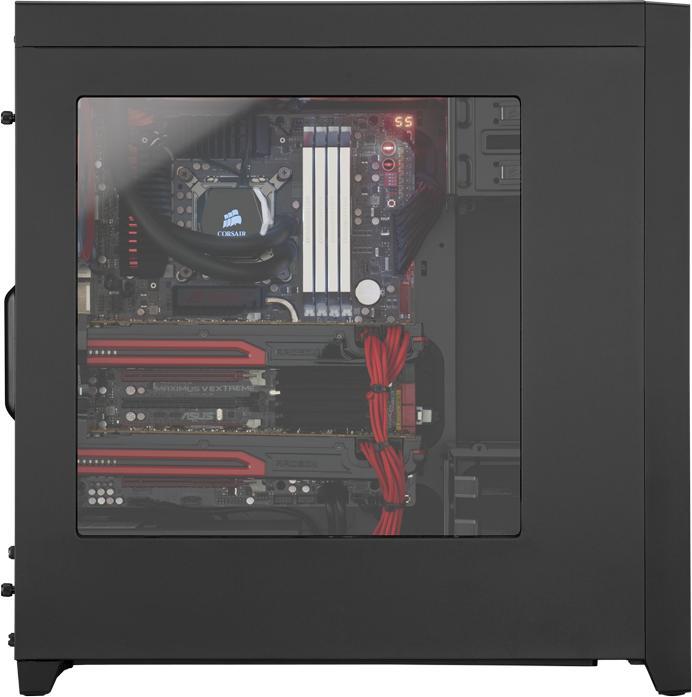

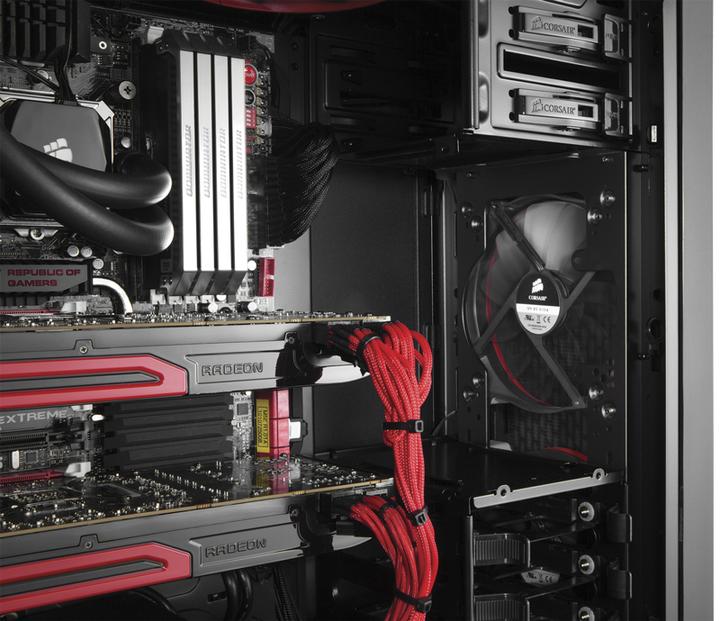

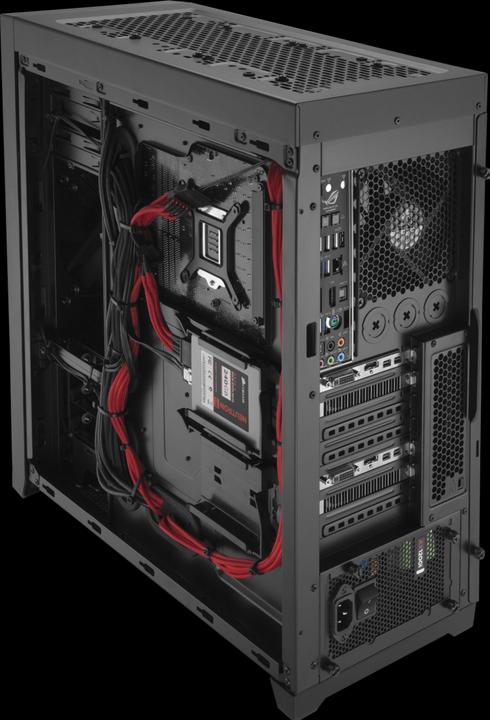

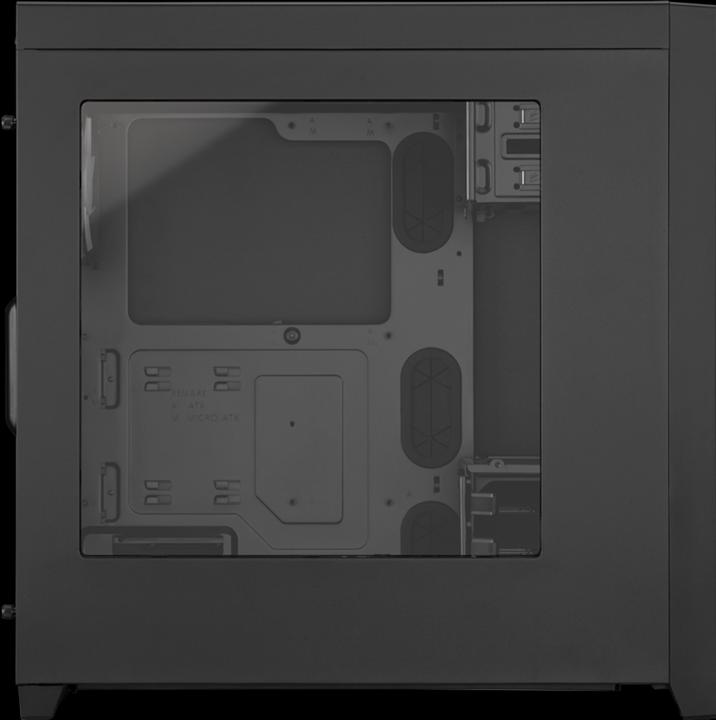

The interior, equipped with a mobile modular drive cage system and two SSD slots positioned behind the motherboard tray outside the airflow, is designed for demanding cooling efficiency. The oversized, flush side window showcases your system-building skills while maintaining the sleek and refined design aesthetic of the Obsidian Series.

Key specifications

PC case design
Midi Tower
Number of 3.5" drive slots (internal)
3 x
"Number of 5.25"" drive slots"
2 x
Max. length graphics card
430 mm

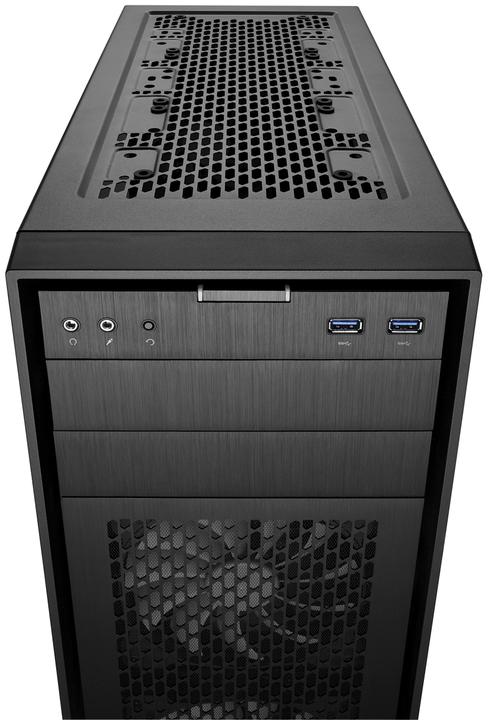

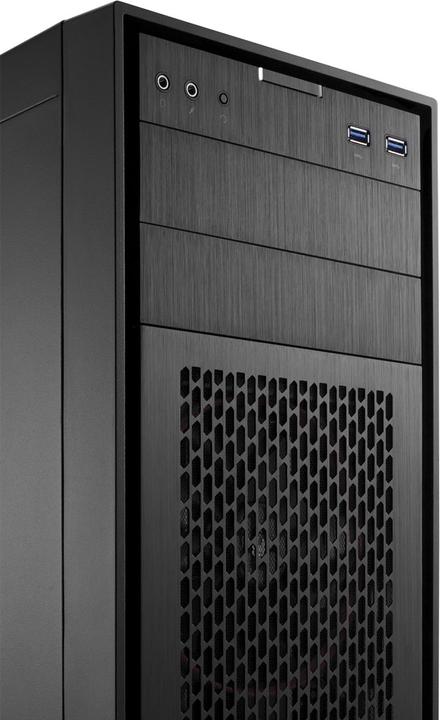

Front connectors
Headphones, Microphone, USB 3.0
PC case features
Modular HDD cage, Openings for water cooling, Side windows
Max. height CPU cooler
165 mm
Item number
2741368

General information

Manufacturer
Corsair
Category
PC case
Manufacturer no.
CC-9011049-WW
Release date
8.8.2014

Colour

Colour
Black
Exact colour description
Black

Material

Material group
Metal
Material
Aluminium, Steel

PC case properties

PC case design
Midi Tower
Form factor
ATX, E-ATX, Micro ATX (mATX), Mini-ITX
"Number of 5.25"" drive slots"
2 x
Number of 3.5" drive slots (external)
3 x
Number of 3.5" drive slots (internal)
3 x
"Number of 2.5"" drive slots"
2 x
Max. length graphics card
430 mm
Max. height CPU cooler
165 mm
Max length of power supply
200 mm
PC case features
Modular HDD cage, Openings for water cooling, Side windows

Connections

Front connectors
Headphones, Microphone, USB 3.0

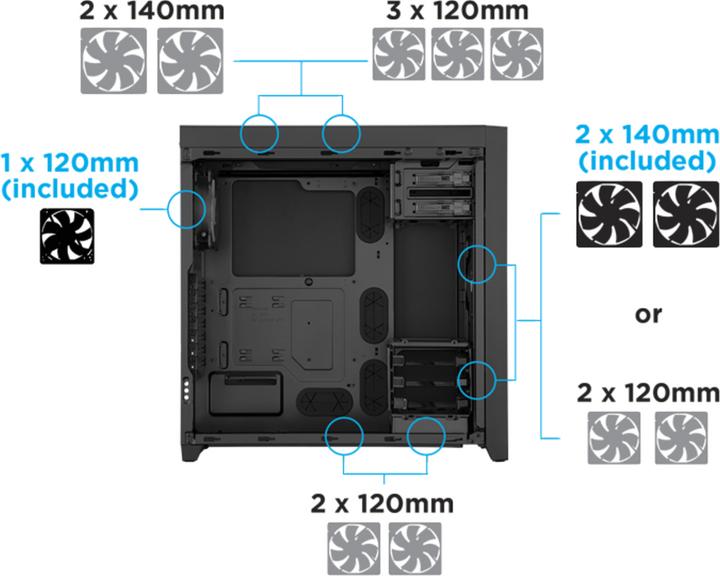

Cooling properties

Number of fans
3 x
Number of fan slots
8 x
Fan location
Bottom side, Front side, Rear side, Top side
Number of radiator mounts
4
Radiator locations
Bottom side, Front side, Rear side, Top side
Cooling properties
Water cooling possible

Front side

Fans included
2x 140mm
Fan mount locations
2x 120mm, 2x 140mm
Radiator mount locations
1x. max. 240/280mm

Rear side

Fans included
1x 120mm
Fan mount locations
1x 120mm
Radiator mount locations
1x max. 120mm

Bottom side

Fans included
Optional fan
Fan mount locations
2x 120mm, No HDD cage
Radiator mount locations
1x max. 240mm, No HDD cage

Top side

Fans included
Optional fan
Fan mount locations
2x 140mm, 3x 120mm
Radiator mount locations
1x max. 280/360mm

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
Installation material

Product dimensions

Height
49.40 cm
Length
49.70 cm
Width
21 cm
Weight
7 kg

Package dimensions

Length
57 cm
Width
28.50 cm
Height
57 cm
Weight
8.36 kg
