Corsair Force MP510

480 GB, M.2 2280
Currently out of stock

Product details

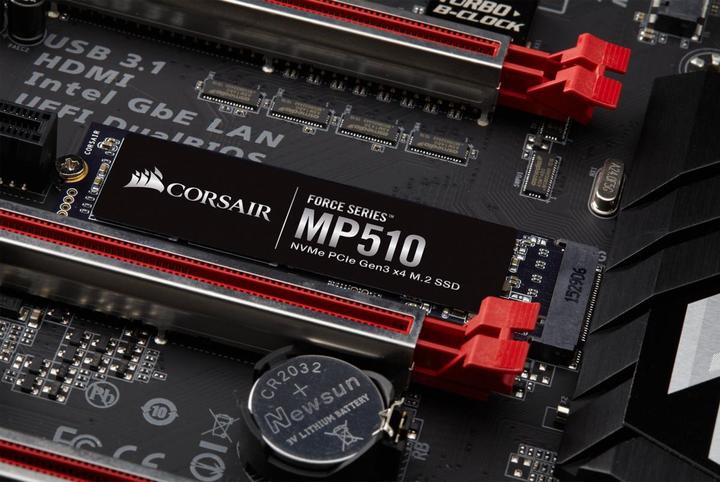

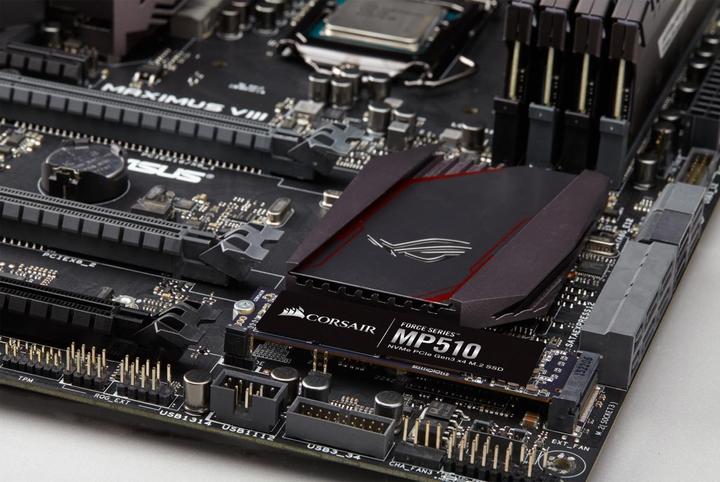

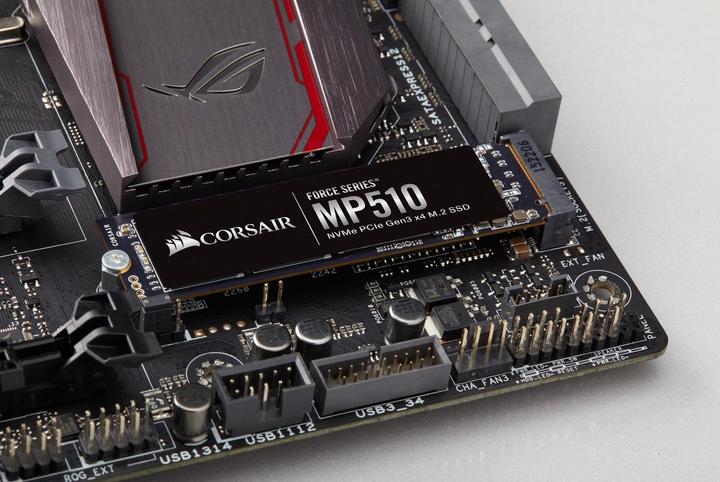

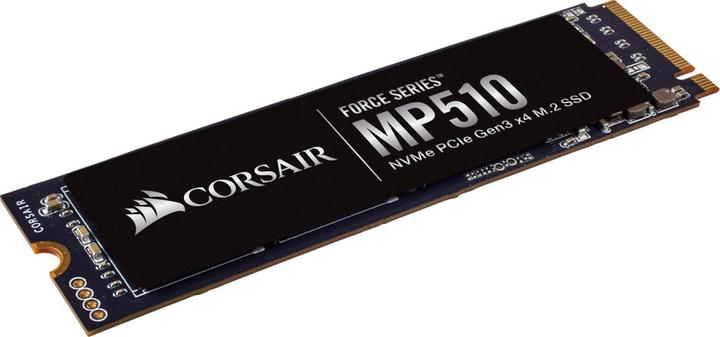

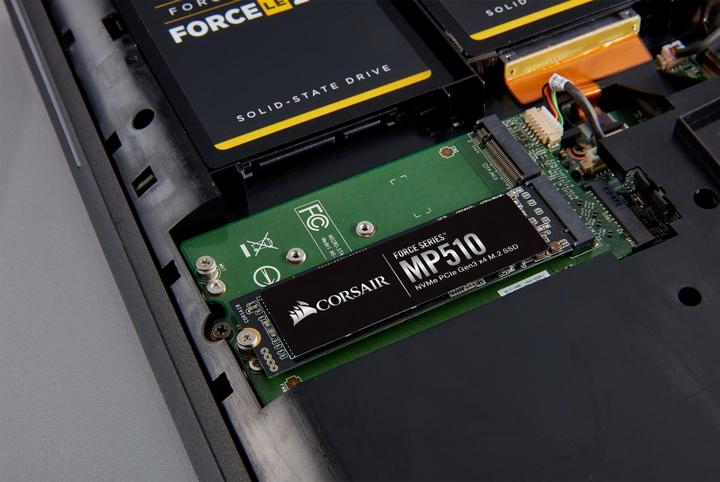

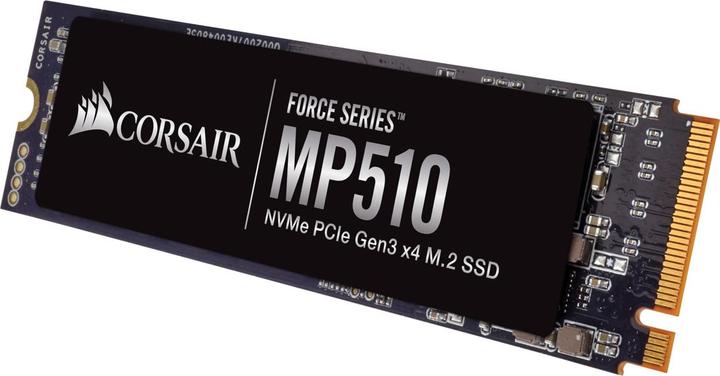

With M.2 SSDs, a new era of write and read speeds has begun. Thanks to their small size and incredible write and read speeds, the Corsair Force MP510 offers extreme performance and reliability. Designed for high-end PCs, this M.2 SSD is based on TLC 3D NAND technology and achieves random read/write speeds of up to 240,000/180,000 IOPS with the ultra-fast PCIe 3.0 x4 NVMe interface. This SSD transfers data via PCI Express, leaving traditional SATA SSDs far behind in terms of transfer rates. M.2 SSDs are installed via the M.2 socket on the motherboard. Due to their compact dimensions, they are particularly suitable for use in ultrabooks and mini-PCs, but can also be used in standard computers. In systems with NVMe support, this SSD truly shines. You benefit from high throughput, high IOPS, and low latency. Unlike the older AHCI protocol, which was developed for traditional spinning drives, NVMe prevents performance drops, offers faster transfers of large data volumes, increased boot speeds, and improved system responsiveness.

Key specifications

SSD type
M.2 SSD
Interface
PCIe 3.0
Protocol
NVMe
Write transfer speed
2000 MB/s
Read transfer speed
3480 MB/s
Max. random 4K write
360000 IOPS
Item number
10029438

General information

Manufacturer
Corsair
Category
SSD
Manufacturer no.
CSSD-F480GBMP510
Release date
29.10.2018

Data storage properties

SSD type
M.2 SSD
Form factor
M.2 2280
Storage capacity
480 GB
Interface
PCIe 3.0
Protocol
NVMe
Read transfer speed
3480 MB/s
Write transfer speed
2000 MB/s
Memory type (NAND)
TLC
Max. random 4K write
360000 IOPS
Max. TBW
800 TB
SSD Features
AES encryption

Power supply

Power consumption (standby)
0 W

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Length
8 cm
Width
2.20 cm
Height
0.30 cm
Weight
55 g

Package dimensions

Length
13.20 cm
Width
7.90 cm
Height
1.50 cm
Weight
26 g
