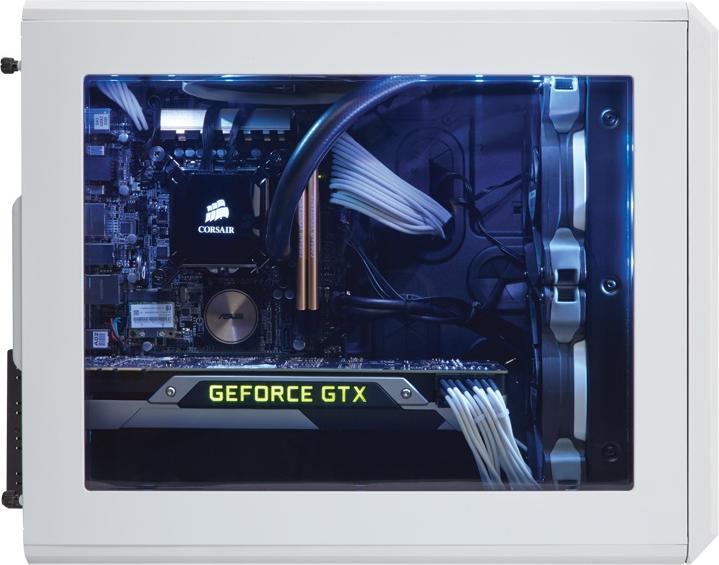

Corsair Carbide Air 240

mATX, Mini-ITX
15Ratings
Currently out of stock

Product details

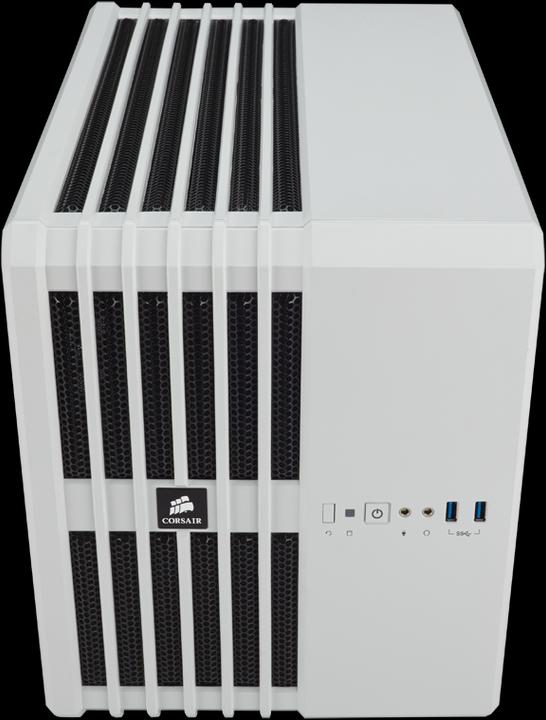

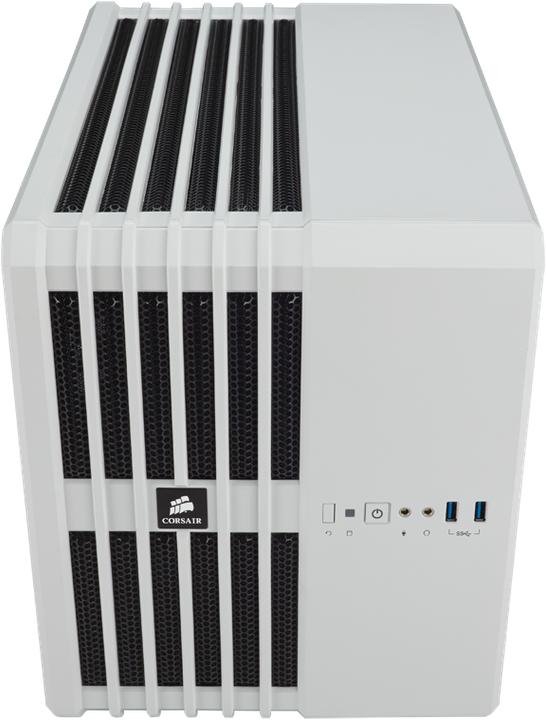

Introducing the Carbide Series Air 240, a PC case designed for Mini-ITX and MicroATX computers with an exceptionally small form factor.

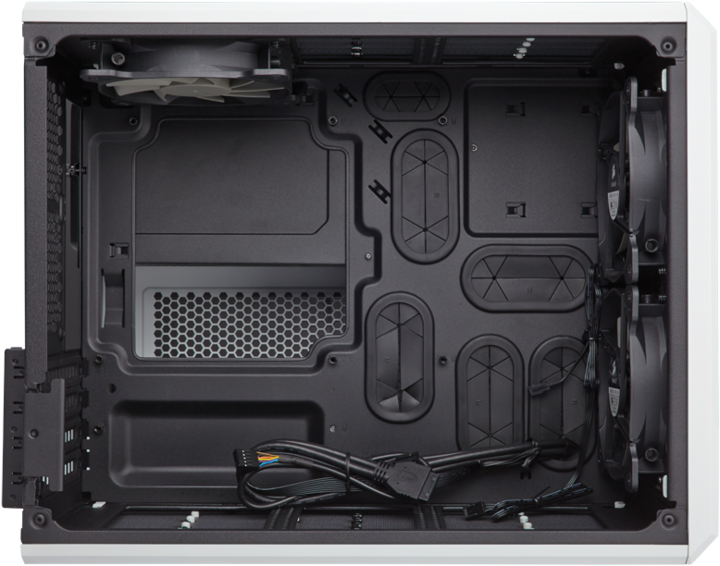

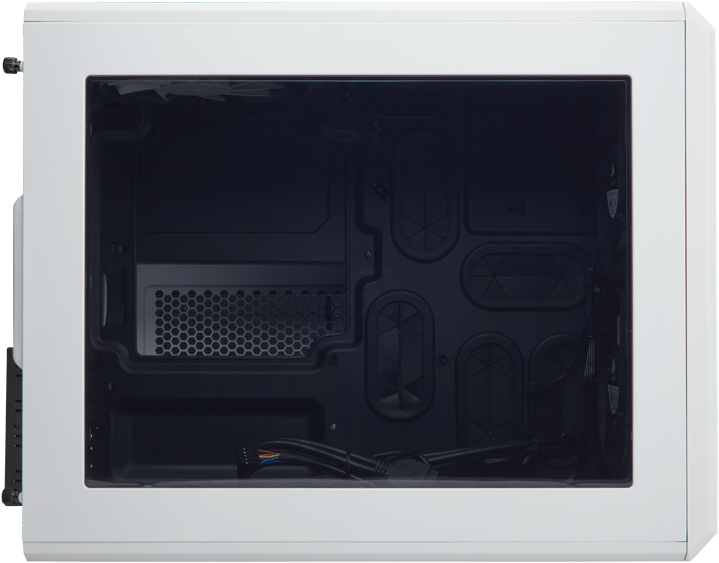

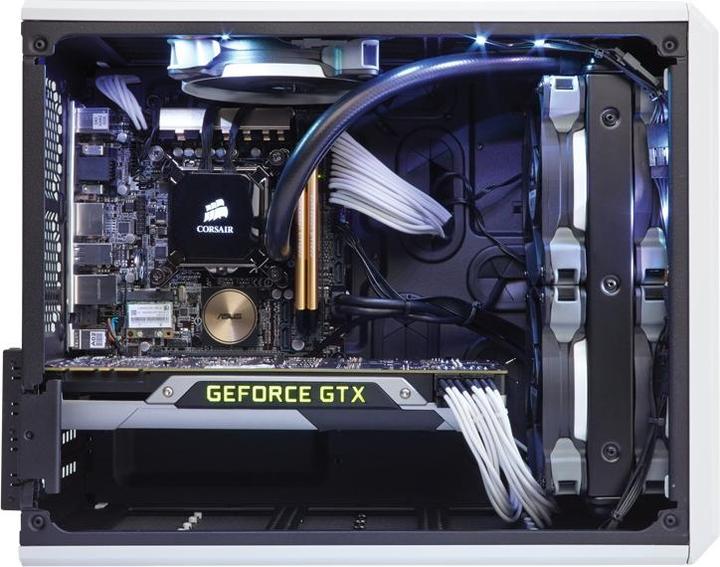

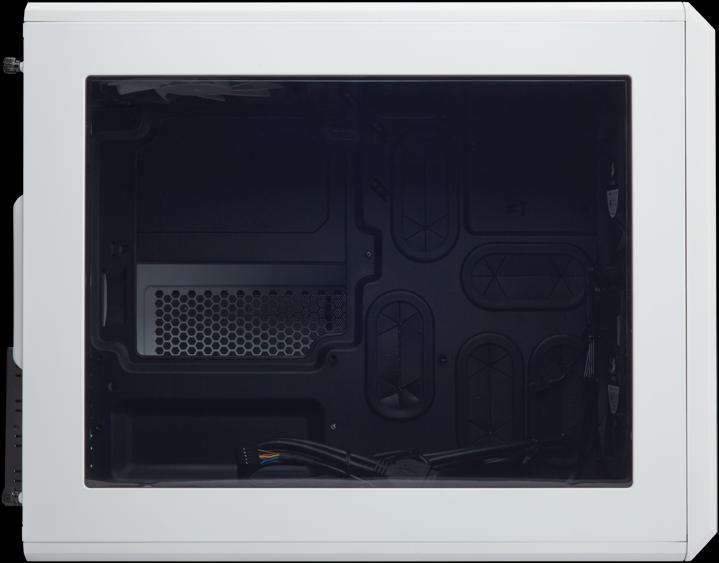

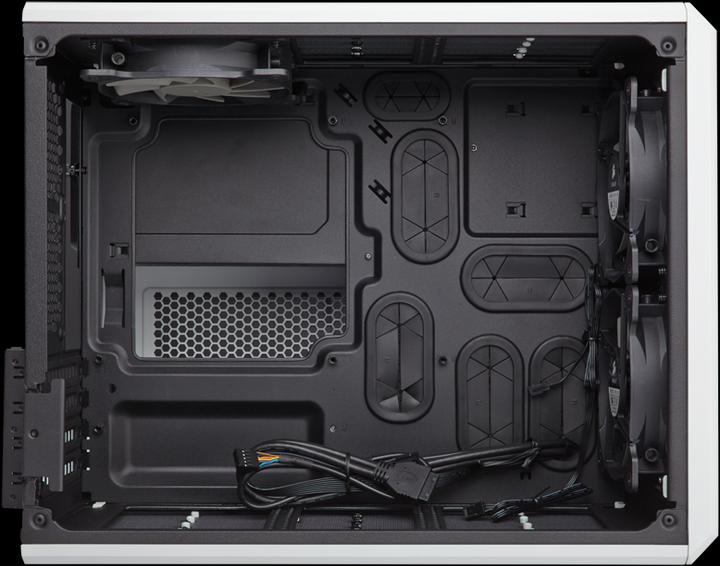

Featuring a unique cube design complete with a side full window, it offers space for an interior structure optimized for maximum airflow or advanced water cooling configurations, including one or two 240mm radiators.

Don't be fooled by its compact size: this small case accommodates full-sized components while still leaving ample installation space.

Key specifications

PC case design
Cube housing
Number of 3.5" drive slots (internal)
3 x
"Number of 5.25"" drive slots"
0 x

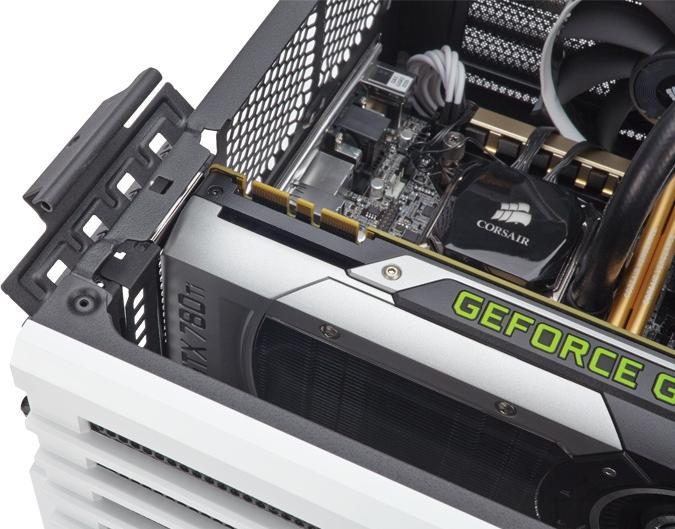

Max. length graphics card
290 mm

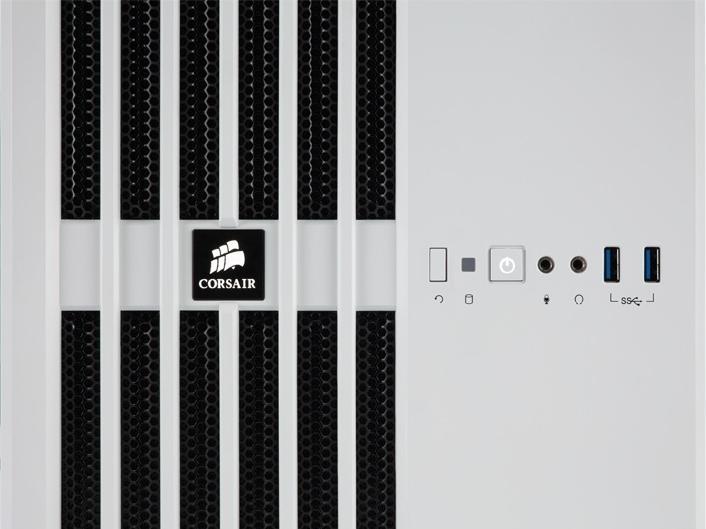

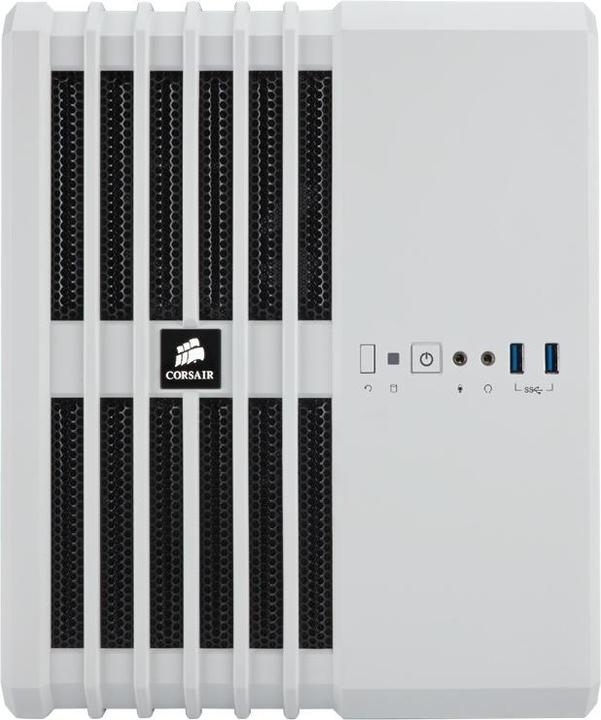

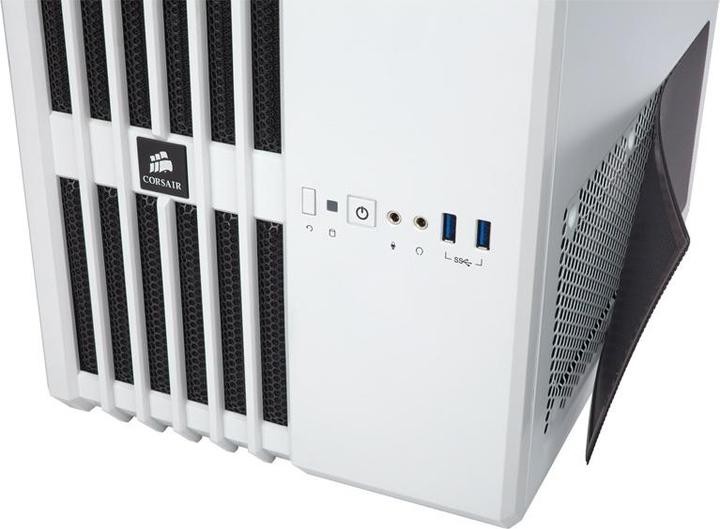

Front connectors
Headphones, Microphone, USB 3.0
PC case features
Side windows
Max. height CPU cooler
120 mm
Item number
2754733

General information

Manufacturer
Corsair
Category
PC case
Manufacturer no.
CC-9011069-WW
Release date
4.9.2014
External links
Manufacturer's site (de)

Colour

Colour
White
Exact colour description
White

Material

Material group
Metal
Material
Steel

PC case properties

PC case design
Cube housing
Form factor
Micro ATX (mATX), Mini-ITX
"Number of 5.25"" drive slots"
0 x
Number of 3.5" drive slots (external)
0 x
Number of 3.5" drive slots (internal)
3 x
"Number of 2.5""/3.5"" combination slots"
0 x
"Number of 2.5"" drive slots"
3 x
External Hard Drive Dock 3.5'''
0 x
Hard drive dock external 2.5''
0 x
Number of expansion card slots
4 x
Max. length graphics card
290 mm
Max. height CPU cooler
120 mm
Max length of power supply
225 mm
LED colour
Blue
PC case features
Side windows

Connections

Front connectors
Headphones, Microphone, USB 3.0

Cooling properties

Number of fans
1 x
Number of fan slots
9 x
Fan location
Aspect, Bottom side, Front side, Rear side, Top side
Number of radiator mounts
2
Radiator locations
Bottom side, Front side
Cooling properties
Water cooling possible

Front side

LED colour
without LED
Fans included
2x 120mm
Fan mount locations
2x 120mm
Radiator mount locations
1x max. 120/140mm, 1x max. 240mm

Rear side

LED colour
without LED
Fans included
1x 120mm
Fan mount locations
1x 120mm
Radiator mount locations
No mounting possible

Side

LED colour
Blue
Fans included
Optional fan
Fan mount locations
1x 120mm
Radiator mount locations
No mounting possible

Bottom side

LED colour
Blue
Fans included
Optional fan
Fan mount locations
2x 120mm
Radiator mount locations
1x max. 240mm

Top side

Fans included
Optional fan
Fan mount locations
2x 120mm
Radiator mount locations
No mounting possible

HDD Cage

LED colour
Blue
Fan mount locations
2x 120mm

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
Installation material

Product dimensions

Height
32 cm
Length
39.70 cm
Width
26 cm
Weight
5.60 kg

Package dimensions

Length
46.70 cm
Width
38 cm
Height
34.80 cm
Weight
5.94 kg
