Product details

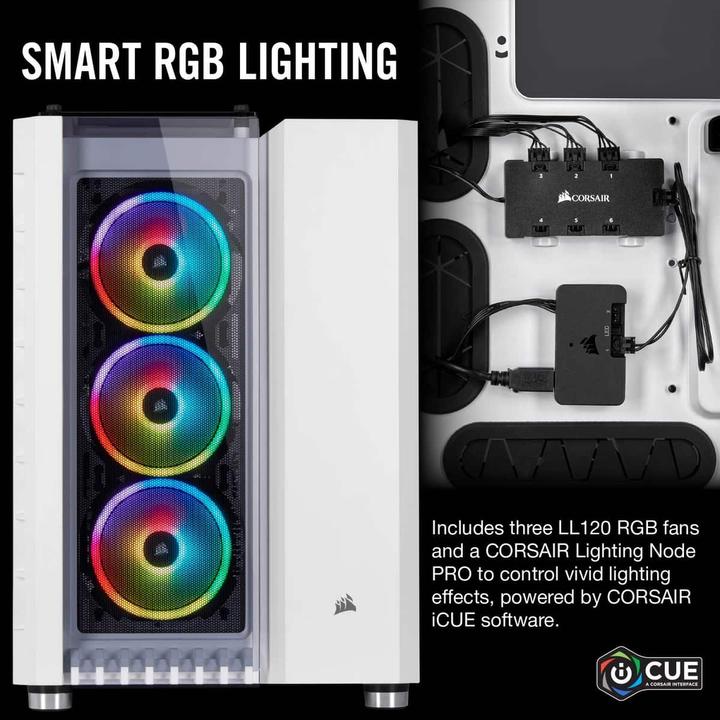

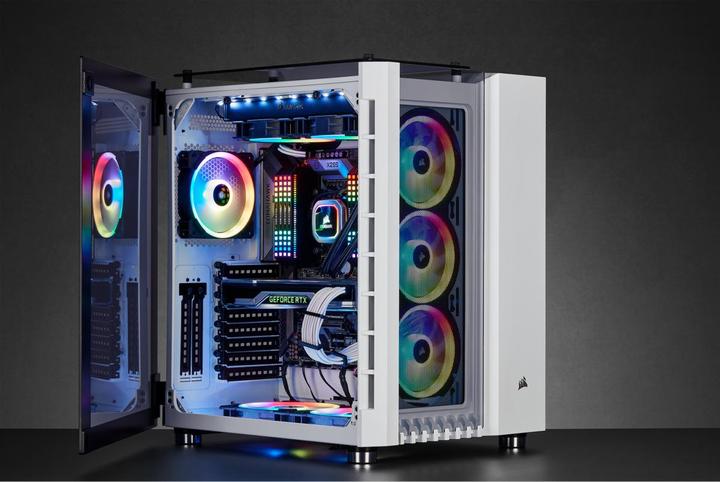

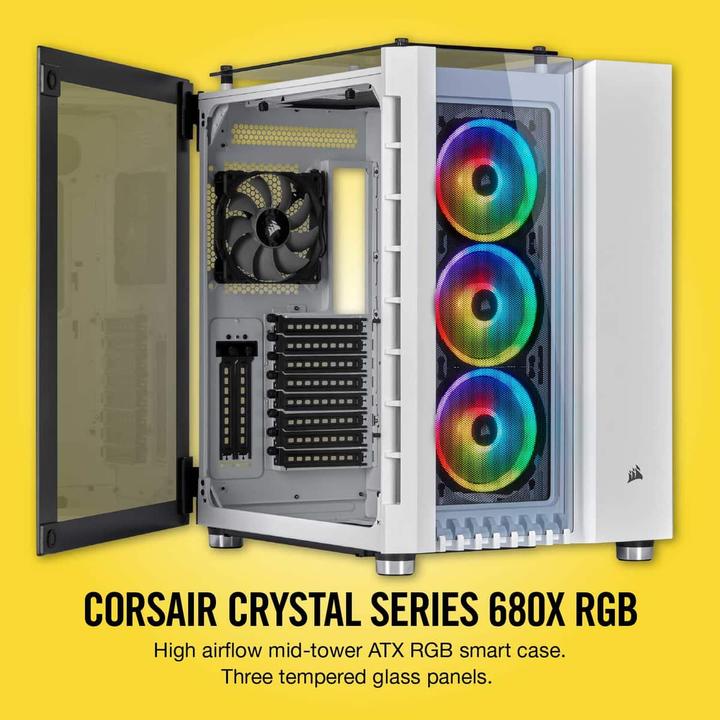

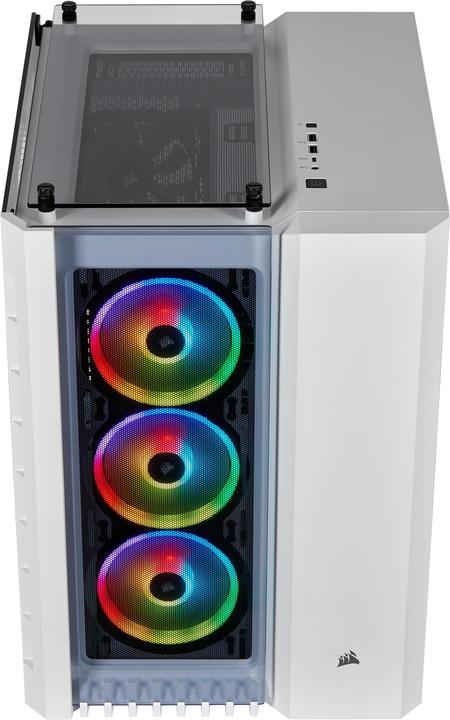

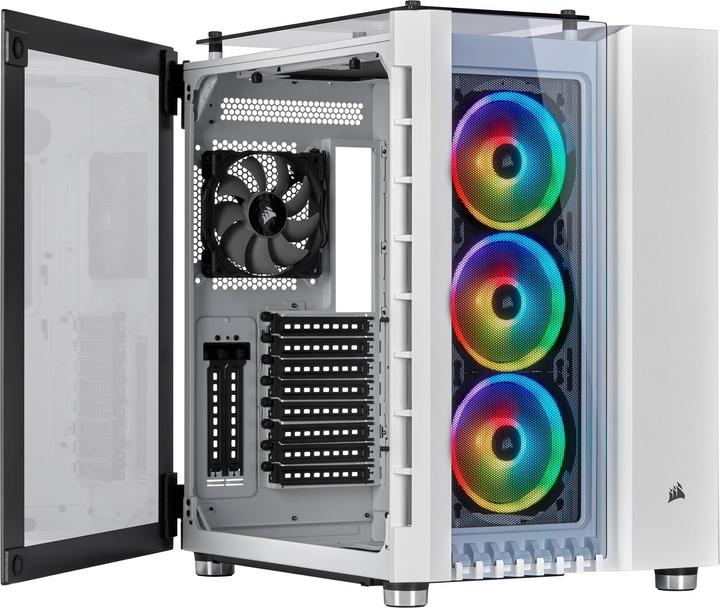

The Corsair Crystal Series 680X RGB is an ATX smart case made of tempered glass with a dual-chamber design. It has space for up to eight fans and four radiators, ensuring optimal cooling for your running system. Enjoy excellent airflow and brilliant RGB lighting effects from three LL120 RGB fans, which can be controlled via the included Corsair Lighting Node PRO using the iCUE software. The three tempered glass panels on the front, top, and hinged side cover showcase your components, while you can highlight your graphics card with the optional vertical GPU mount. With the 680X RGB, setting up your next system is not only incredibly easy but also exceptionally cool.
PC case design | Midi Tower |
Number of 3.5" drive slots (internal) | 3 x |
"Number of 5.25"" drive slots" | 0 x |
Max. length graphics card | 330 mm |

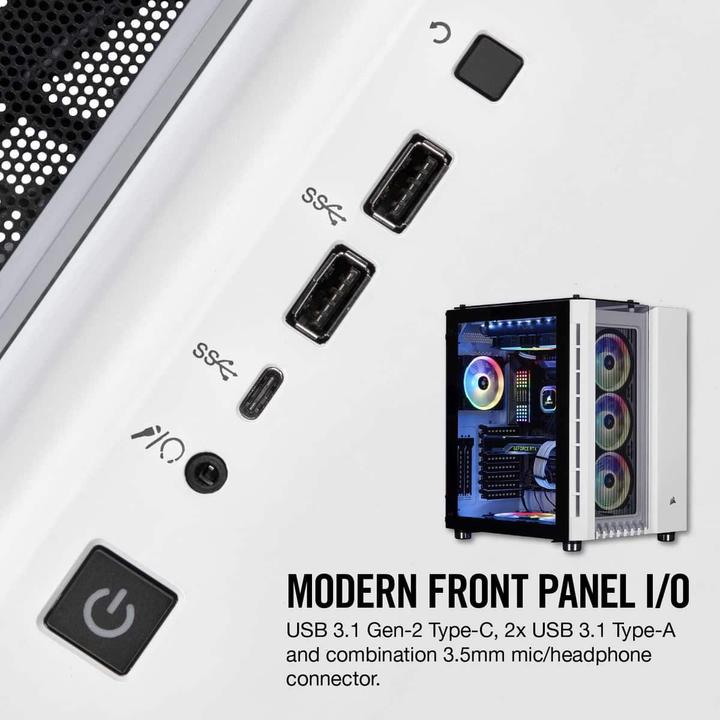

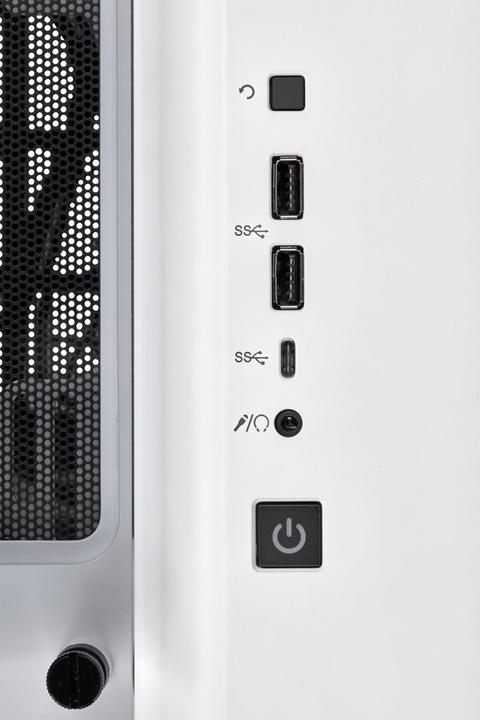

Front connectors | 2x USB 3.0, Audio in/out, Power button |
PC case features | Side windows |
Max. height CPU cooler | 180 mm |
Item number | 10703166 |
Manufacturer | Corsair |
Category | PC case |
Manufacturer no. | CC-9011169-WW |
Release date | 12.3.2019 |
Colour | White |
Exact colour description | White |
Material group | Glass, Metal, Plastic |
Material | Glass, Plastic, Steel |
PC case design | Midi Tower |
Form factor | ATX, E-ATX, Micro ATX (mATX), Mini-ITX |
"Number of 5.25"" drive slots" | 0 x |
Number of 3.5" drive slots (external) | 0 x |

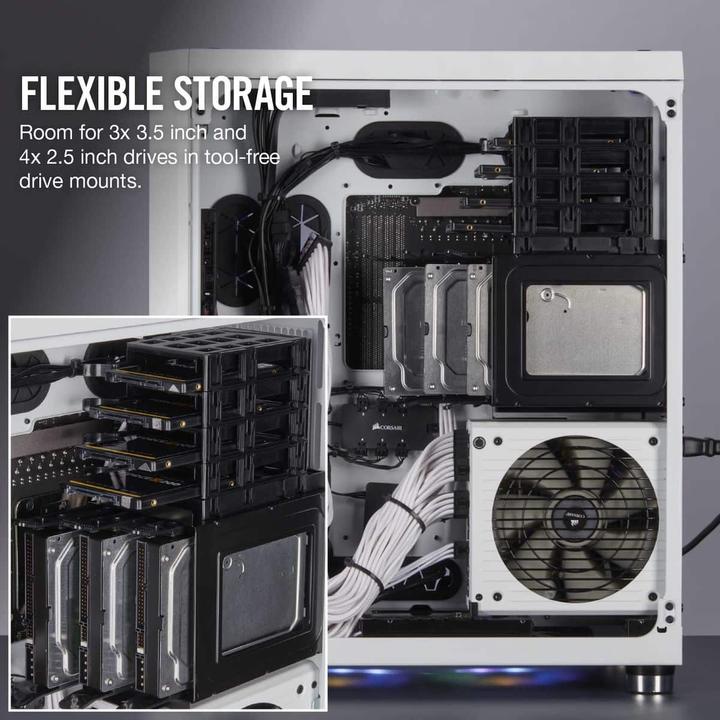

Number of 3.5" drive slots (internal) | 3 x |
"Number of 2.5""/3.5"" combination slots" | 0 x |
"Number of 2.5"" drive slots" | 4 x |
External Hard Drive Dock 3.5''' | 0 x |
Hard drive dock external 2.5'' | 0 x |

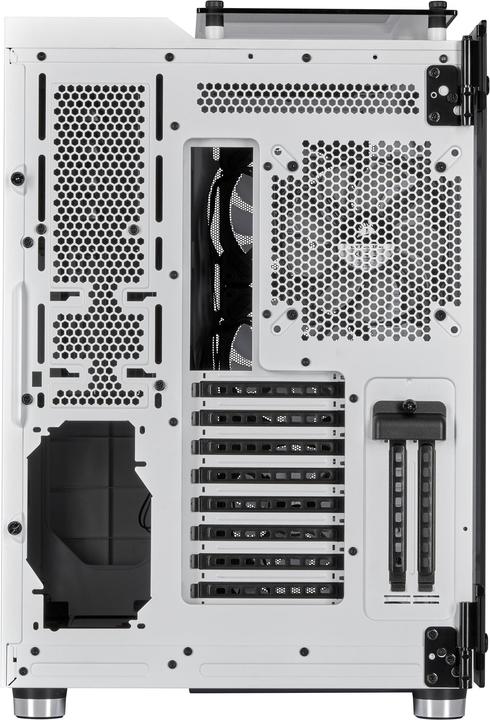

Number of expansion card slots | 8 x |
Max. length graphics card | 330 mm |
Max. height CPU cooler | 180 mm |
Max length of power supply | 225 mm |
PC case features | Side windows |
Front connectors | 2x USB 3.0, Audio in/out, Power button |

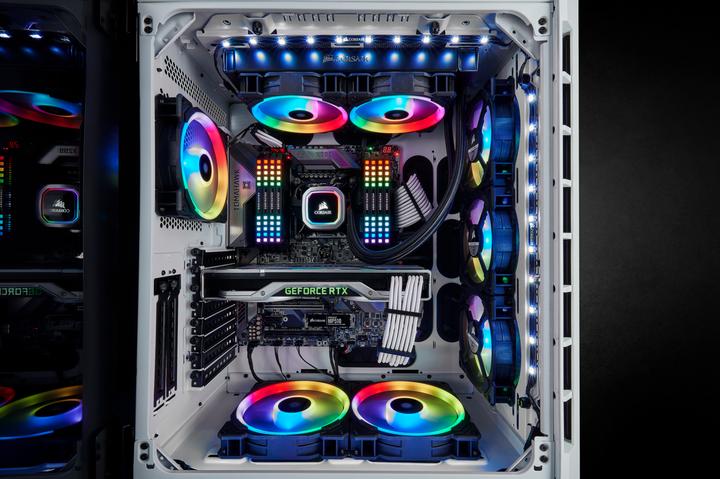

Number of fans | 4 x |

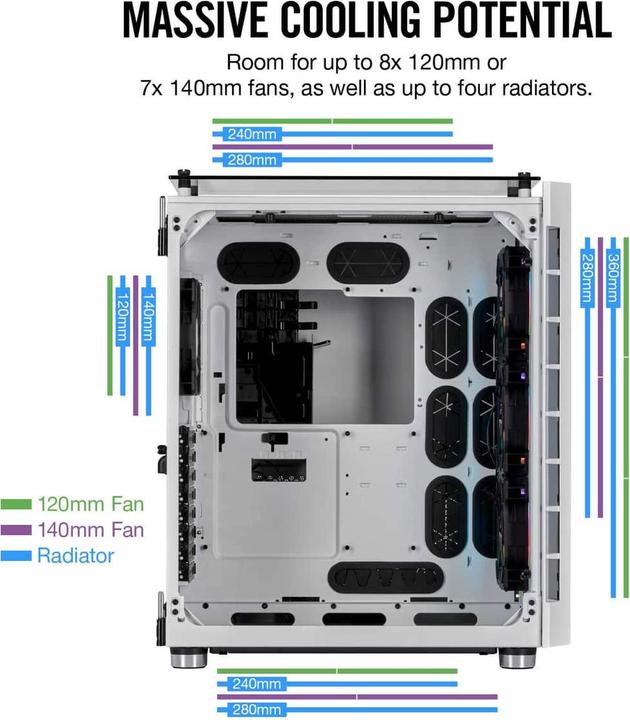

Number of fan slots | 8 x |
Fan location | Bottom side, Front side, Rear side, Top side |
Number of radiator mounts | 4 |
Radiator locations | Bottom side, Front side, Rear side, Top side |
Cooling properties | Water cooling possible |
LED colour | RGB |
Fans included | 3x 120mm |
Fan mount locations | 2x 140mm, 3x 120mm |
Radiator mount locations | 1x max. 280/360mm |
LED colour | without LED |
Fans included | 1x 120mm |
Fan mount locations | 1x 120mm, 1x 140mm |
Radiator mount locations | 1x max. 120mm |
Fans included | Optional fan |
Fan mount locations | 2x 120mm, 2x 140mm |
Radiator mount locations | 1x. max. 240/280mm |
Fans included | Optional fan |
Fan mount locations | 2x 120mm, 2x 140mm |
Radiator mount locations | 1x. max. 240/280mm |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Instruction manual |
Height | 50.50 cm |
Length | 42.30 cm |
Width | 34.40 cm |
Weight | 11.58 kg |
Length | 50.50 cm |
Width | 43 cm |
Height | 59.50 cm |
Weight | 13.32 kg |
Specifications may include unverified machine translations.
