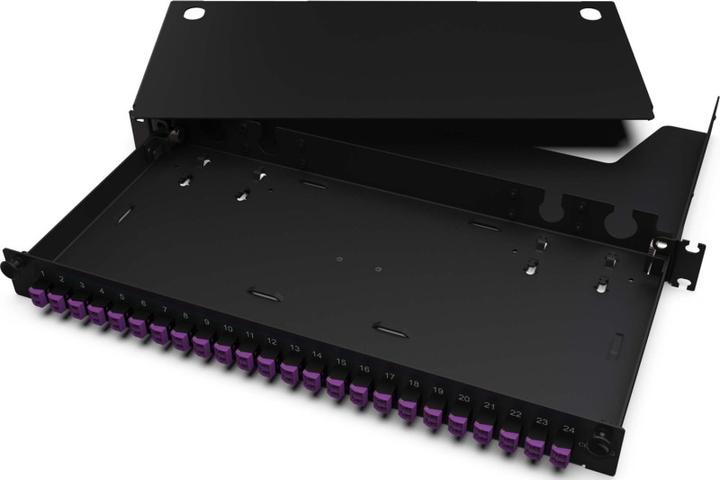

Corning FO distribution panel housing

Corning fiber optic patch panel enclosure LAN1-12AE-PGTL-B

Manufacturer: Corning
Name: Fiber optic patch panel enclosure
Number of fibers: 12
Type: LAN1-12AE-PGTL-B
Number of couplers/adapters: 6
Front panel: Yes
Housing: Yes
Pigtails: Yes
Fiber type: Multimode 50/125
Fiber class: SMF-28® Ultra fiber
Connector type outside: LC-Duplex
Connector type inside: LC duplex
Color: Black
Mounting style: 482.6 mm (19 in.) installation
Number of height units (U): 1
Height: 44 mm
Width: 483 mm
Depth: 233 mm

Corning fiber optic distribution field enclosure LAN1-12AE-PGTL-B: More details
LANscape enclosures are designed for a wide variety of applications in 19-inch distribution cabinets and main distribution frames. The extendable or lockable housings are equipped with industry standard adapter types in different fiber classes and are suitable for direct field termination, fusion splicing with pigtails, as well as for pre-terminated solutions. The four cable entries in the rear of the housings are designed for cable glands. Additional cable traps for FTTD/FTTO or U-Clips for Plug & Play or EDGE trunks can be attached to the outside of the rear panel. The space-optimized interior makes it easy to work with ongoing expansions, moves, and changes (MACs), reducing the risk of network disruptions.
