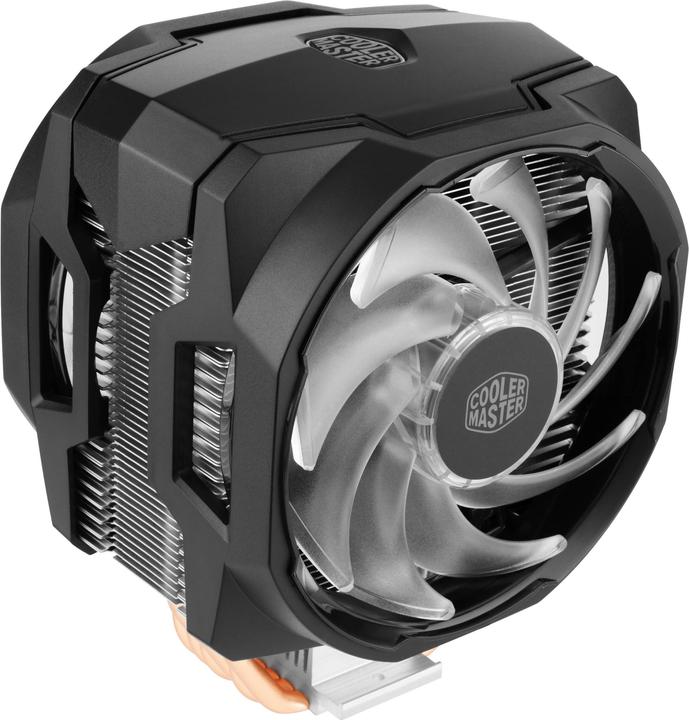

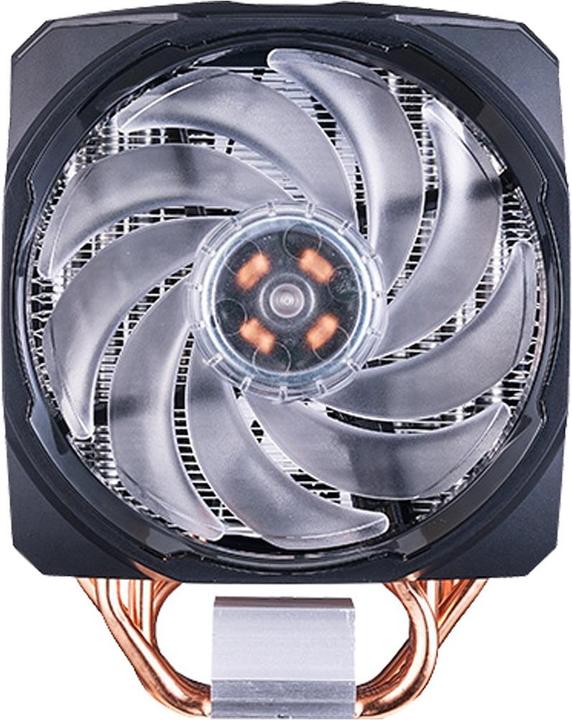

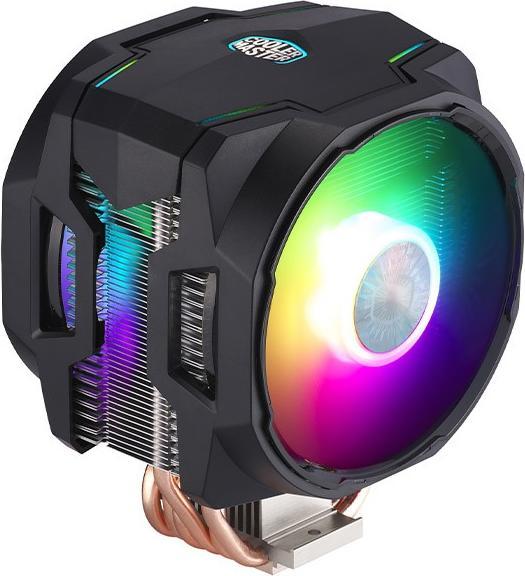

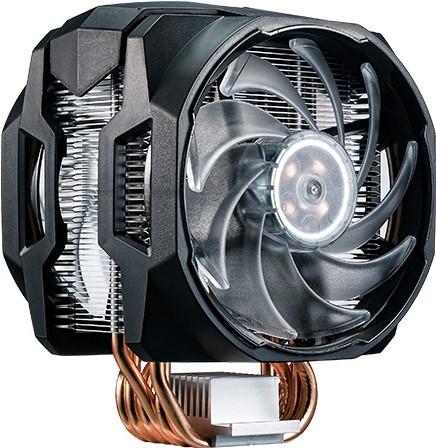

Cooler Master MasterAir MA610P

166.50 mm
Currently out of stock

Product details

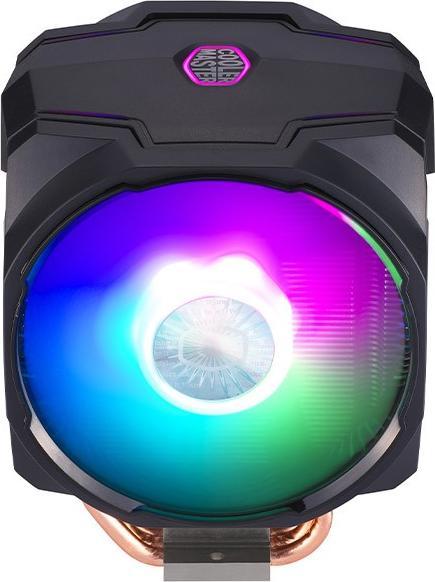

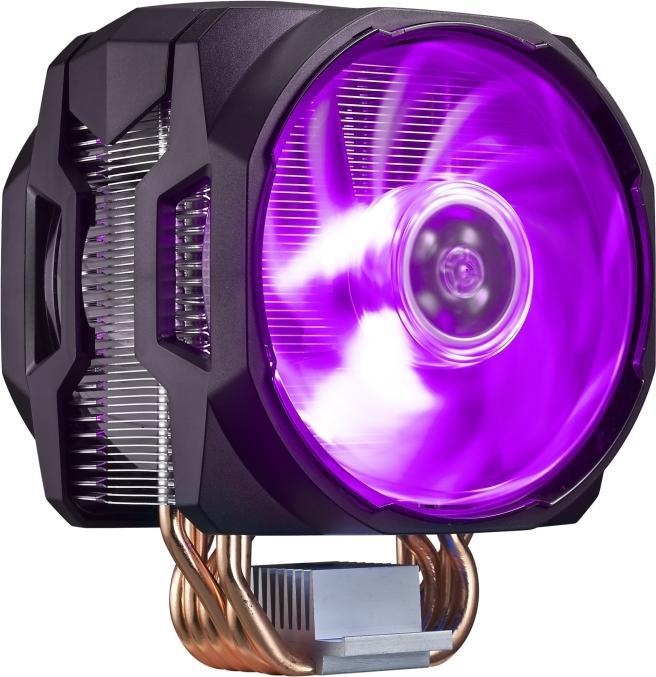

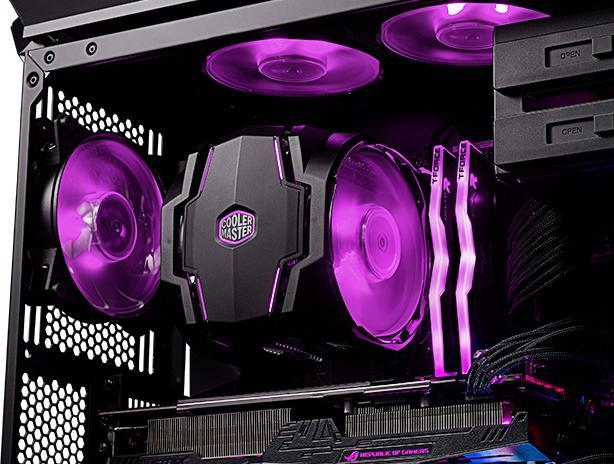

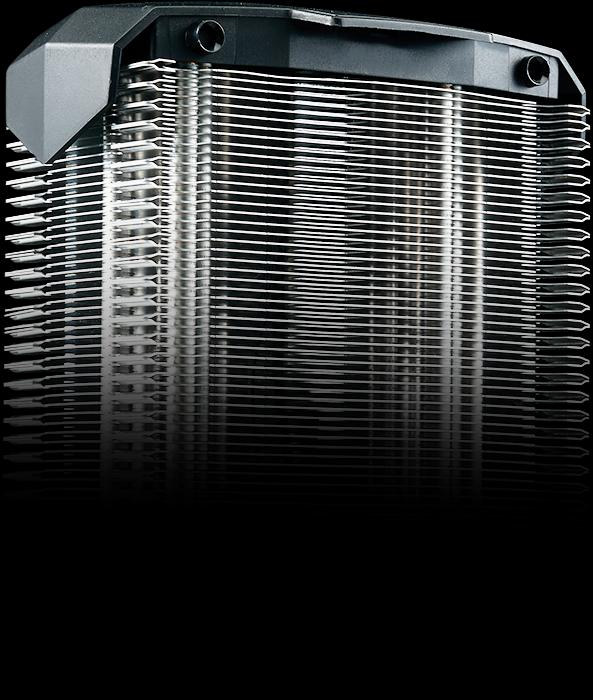

The stylish MA610P with six heatpipes is the little brother of the MasterAir Maker 8 and is specially designed for gamers and overclockers who need low temperatures, RGB lighting, and absolute control over their air cooling. The push-pull configuration of the Dual-MasterFan MF120R RGB provides excellent high-pressure cooling at low noise levels. The in-line controller makes it possible to adjust the LED color and effects at the touch of a button. The MA610P is designed for overclockers and gamers who push their system to its limits. Exceptional cooling performance is a must for system stability and top speed operation. The attractive design of the MA610P adapts to the components in your computer. It includes two RGB fans and a controller with almost limitless possibilities for changing the lighting. Cooler Master's expertise in the manufacture of aluminum fins is unmatched. The two MasterFan 120 Air Balance RGB fans accelerate heat dissipation according to the push-pull principle. Cold air is drawn from one side into the MA610P heat sink and cools the heat generated by the processor. The warm air is then quickly discharged to the other side, allowing the CPU to operate at maximum efficiency.

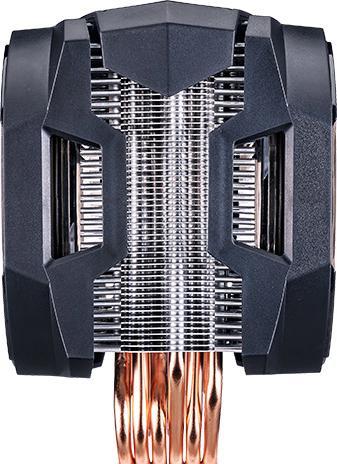

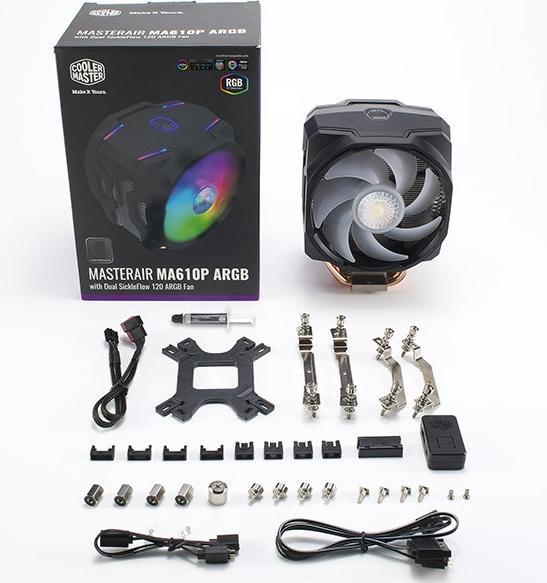

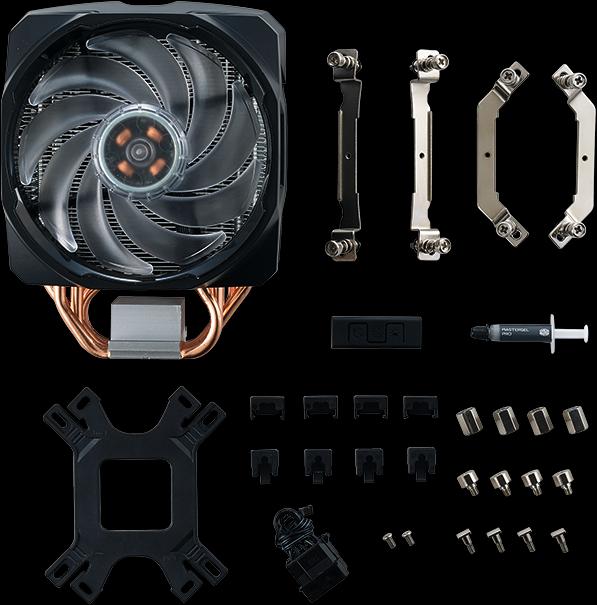

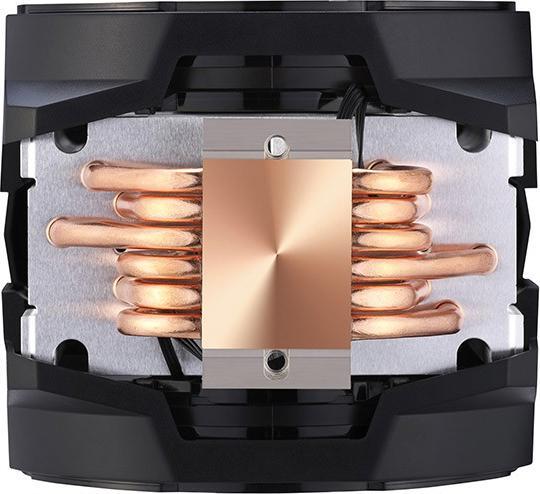

The Continuous Direct Contact 2.0 technology increases the contact area between heatpipes and CPU by 45%, optimizing heat dissipation from the processor core. With a total of six heatpipes, the MA610P also enables power maximization in terms of thermal dissipation. The MA610P comes with an in-line RGB LED controller that allows you to change the RGB lighting at any time without the need for software. Try out new variations as you like; there are no limits to the possibilities. The user-friendly mounting kit allows for easy installation, and the universal brackets are compatible with the latest CPU sockets from Intel and AMD.

Key specifications

Socket
AM2AM2+AM3AM3+AM4FM1FM2FM2+LGA 1150LGA 1151LGA 1155LGA 1156LGA 1200LGA 2011LGA 2011-v3LGA 2066LGA 775
Height (with fan)
166.50 mm
Diameter
120 mm
power connector
4-pin PWM
Number of fans
1 x
Item number
8028922

General information

Manufacturer
Cooler Master
Category
CPU coolers
Manufacturer no.
MAP-T6PN-218PC-R1
Release date
13.3.2018

Colour

Colour
Black
Exact colour description
Black

Cooler properties

CPU cooler design
Passive cooler
Fan type
Standard
Socket
AM2AM2+AM3AM3+AM4FM1FM2FM2+LGA 1150LGA 1151LGA 1155LGA 1156LGA 1200LGA 2011LGA 2011-v3LGA 2066LGA 775
Cooler mounting
Backplane
Supported fan sizes
120mm

Heat sink properties

Number of heatpipes
6
Diameter heat pipe
6 mm
Materials radiator core
Copper
Material cooling fins
Aluminium

Fan dimensions

Diameter
120 mm
Length
120 mm
Width
120 mm
Height
25 mm
Weight
1120 g

Fan properties

Number of fans
1 x
Maximum mountable fan
1
Max. Speed
1800 RPM
Airflow
90.69 m³/h
Max. noise level
25 dB
LED colour
RGB

Connections

power connector
4-pin PWM

Power supply

Power consumption
4.44 W
Voltage
12 V

Scope of delivery

Scope of delivery
Installation material

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Width (with fan)
122.30 mm
Length (with fan)
112.80 mm
Height (with fan)
166.50 mm
Weight
616 g

Package dimensions

Length
23.40 cm
Width
16.70 cm
Height
13.80 cm
Weight
1.28 kg
