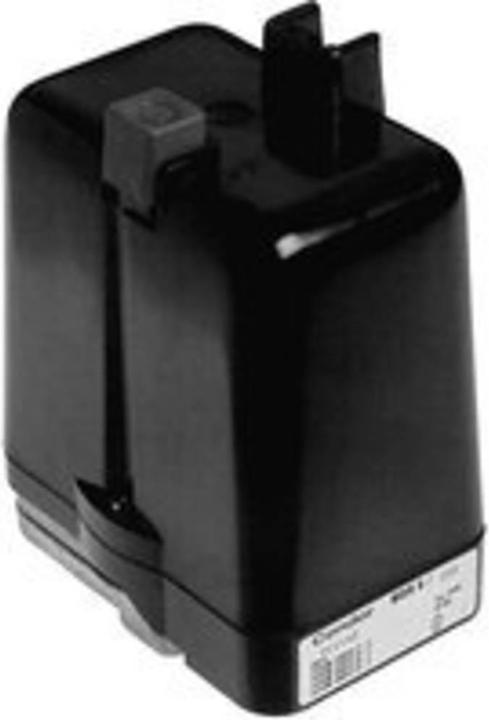

Condor Werke Pressure regulator MDR-5EAA 212898 1/2" 2.0-8.0B 25A
Only 1 piece in stock at third-party supplier
Product details
The MDR-5EAA pressure regulator from Condor Werke is a highly advanced pressure switch designed for various applications, particularly in pump shafts. With a three-phase design and a switching capacity of up to 5.5 kW, this pressure regulator offers a reliable solution for pressure monitoring and control. The pressure range extends from 2 to 8 bar, making it suitable for a wide range of industrial applications. The MDR-5EAA is certified according to the EN 60947 standard, ensuring high safety and reliability in operation. The IP54 protection rating ensures that the pressure regulator is protected against dust and splashes, thereby expanding its usability in harsh environments. The pressure regulator is equipped with M20 cable glands and features a 3-pole normally open contact, facilitating installation and integration into existing systems.
- Three-phase design with a switching capacity of 5.5 kW
- Pressure range from 2 to 8 bar
- Certified according to EN 60947 for high safety
- IP54 protection rating for use in demanding environments
- Includes M20 cable glands for easy installation.
Width | 80 mm |
Item number | 24873263 |
Manufacturer | Condor Werke |
Category | Buttons + Switches |
Manufacturer no. | 212898 |
Release date | 7.10.2022 |
Mounting type | Screw fastening |
Nominal voltage | 500 V |
Nominal current | 25 A |
Protection type (IP code) | IP54 |
Country of origin | Germany, Poland |
CO₂ emissions | 293.55 kg |
Climate contribution | CHF 5.25 |
Smart home | Not compatible |
Items per sales unit | 1 pcs. |
Scope of delivery | Pressure switch |
Width | 80 mm |
Height | 160 mm |
Length | 20.60 cm |
Width | 12.20 cm |
Height | 8.50 cm |
Weight | 781 g |
