Chieftec BX-10B-OP mATX BX-10B-OP

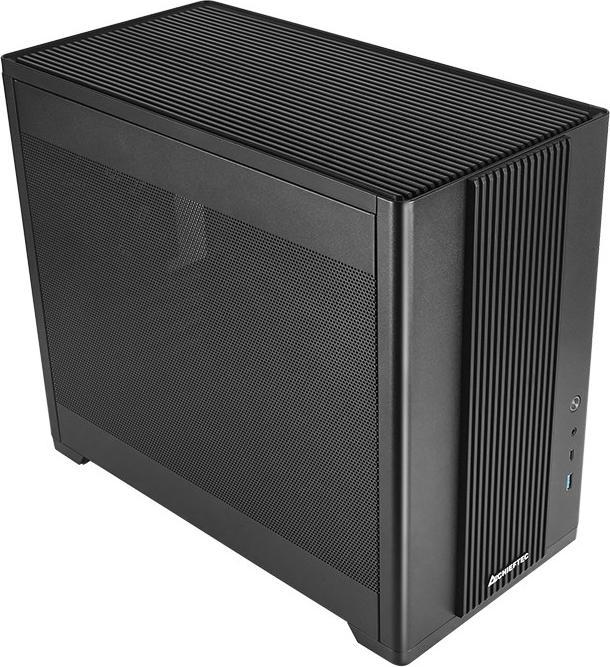

The BX-10B-OP from CHIEFTEC is a modern, compact mini-tower case that combines an elegant and unobtrusive design with high functionality and easy installation. With compatibility for ATX power supplies, m-ATX motherboards, and graphics cards up to 380 mm in length, as well as space for a total of 6 fans, the BX-10B-OP provides ample room and cooling for modern PC configurations.

Main Features

Design
Form Factor: Tower
Type: PC
Product Color: Black
Supported Motherboard Form Factors: micro ATX, Mini-ITX
Number of 3.5" Expansion Slots: 1
Material: Carbon Steel
Number of 2.5" Expansion Slots: 4
Number of Expansion Slots: 4
Side Window: Yes
Power Button: Yes
Max CPU Cooler Height: 16.5 cm
Max Graphics Card Length: 38 cm

Power Supply
Power Supply Included: No

Connections and Interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Number of Type A Ports: 1
USB 3.2 Gen 2 (3.1 Gen 2) Number of Type C Ports: 1
Audio Output: Yes

Cooling
Installed Fans at the Back: 1x 120 mm
Diameter of Supported Rear Fans: 120 mm
Number of Supported Top Fans (max.): 2
Supported Fan Diameter (top): 120, 140 mm
Number of Supported Bottom Fans (max.): 3
Diameter of Supported Bottom Fans: 120, 140 mm
Supported Top Fan Size: 240 mm

Storage Medium
Supported Hard Disk Drive Sizes: 2.5, 3.5"

Technical Details
Sustainability Compliance: Yes
Sustainability Certificates: CE, RoHS
Warranty Period: 2 year(s)

Weight and Dimensions
Width: 204 mm
Depth: 415 mm
Height: 325 mm
Weight: 4.78 kg
Material Thickness: 0.6 mm

Packaging Data
Package Weight: 5.48 kg.
