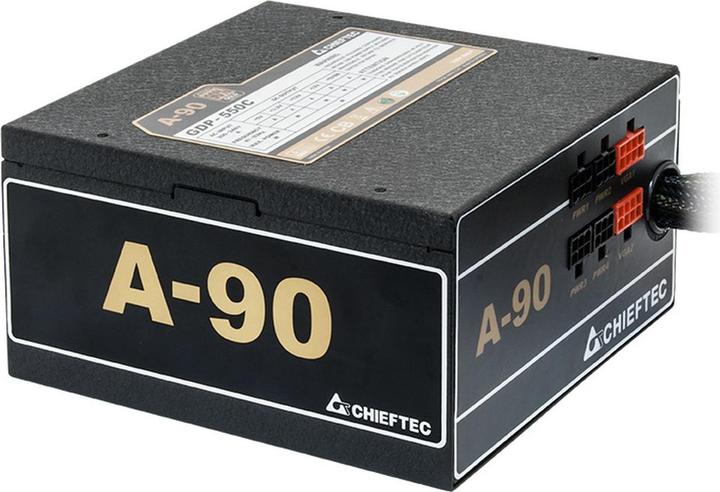

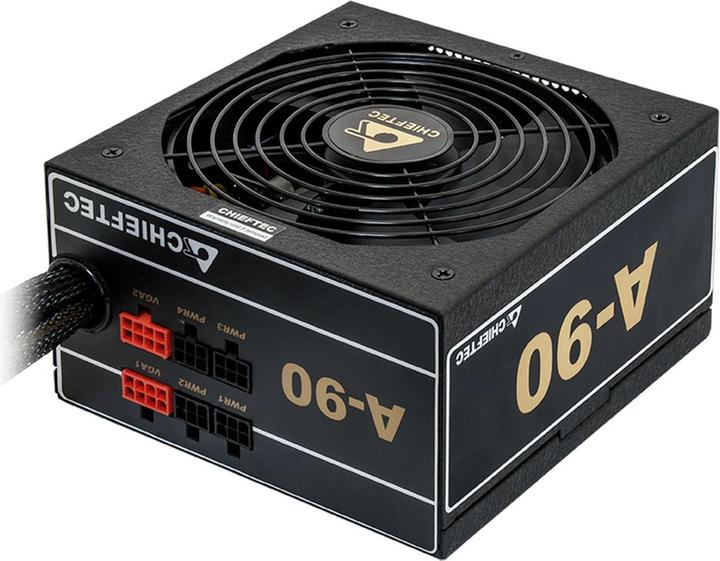

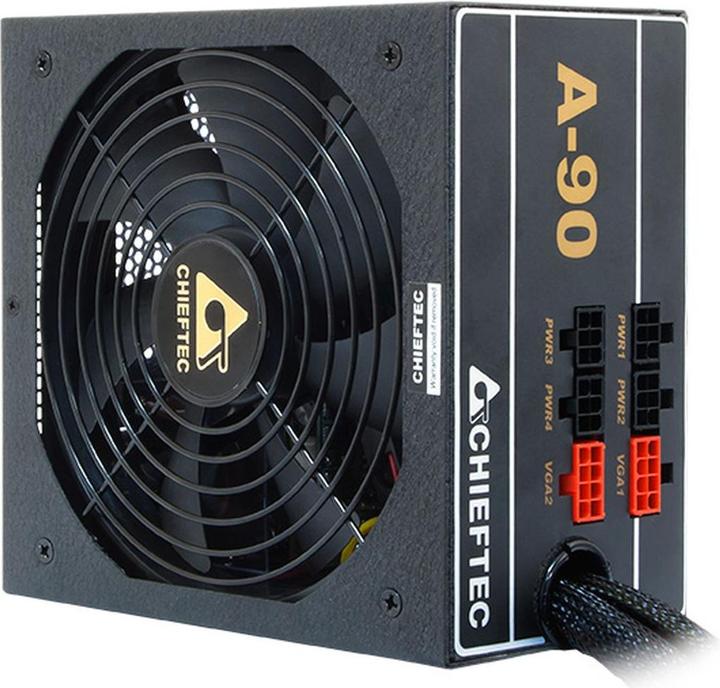

Chieftec A-90 GDP-550C

550 W
Ratings
Delivered between Tue, 1.7. and Tue, 8.7.
9 items in stock at supplier
free shipping

Product details

The GDP-550C delivers a continuous 550 watts, with up to 540 watts available on the +12-volt rail. Modern technology for current systems - there is no compromise on the technical platform. However, Chieftec focuses on the needs of average users in its design: in addition to the 20+4-pin connector for the motherboard and the 4+4-pin EPS connector for the processor, the A-90 550 watt features six detachable SATA and four 4-pin drive connectors. For graphics cards, there are also two modular 6+2-pin PCIe connectors. The affordable Chieftec GDP-550C thus efficiently and precisely powers a high-performance gaming computer along with a high-end graphics card.

Key features:
Dimensions (WxHxD) 150 x 86 x 160 mm, Fan 140 mm (automatic control), Efficiency at least 90/87/87 percent at 50/20/100 percent load, Active PFC (>0.9), Form factor ATX12V 2.3 / EPS 2.92, Continuous power 550 W, +3.3V: 20 A, +5V: 20 A, 3.3V+5V: 110 W, +12V: 540 W / 45 A, -12V: 0.3 A (3.6 W), +5Vsb: 2.5 A.

Key specifications

Form factor
ATX
80 PLUS certificate
Gold
Modularity
Modular cable management
Internal connection options
20+4 PIN ATX power connector (2x)
Item number
10200992

General information

Manufacturer
Chieftec
Category
Power Supply PC
Manufacturer no.
GDP-550C
Release date
5.7.2016
External links
Manufacturer's site (de)

Colour

Colour
White
Exact colour description
White

Power supply properties

Form factor
ATX
Efficiency
90 %
80 PLUS certificate
Gold
Modularity
Modular cable management

Power supply connectors

Internal connection options
20+4 PIN ATX power connector (2x)

Cooling properties

Fan location
Front side
Cooling method
Active cooling
Number of fans
1 x
Fan diameter
140 mm
LED colour
without LED

Safety

Power protection features
OCP, OLP, OPP, OVP

Power supply

Power
550 W

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
PC

Product dimensions

Length
16 cm
Width
15 cm
Height
8.70 cm
Weight
2400 g

Package dimensions

Length
25 cm
Width
22 cm
Height
10 cm
Weight
2.36 kg

30-day right of return
24 Months Warranty (Bring-in)
