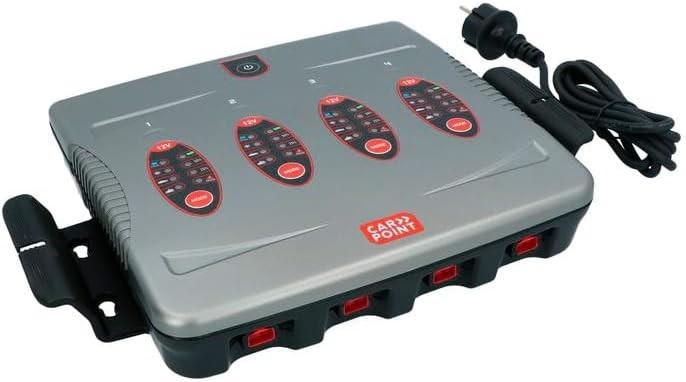

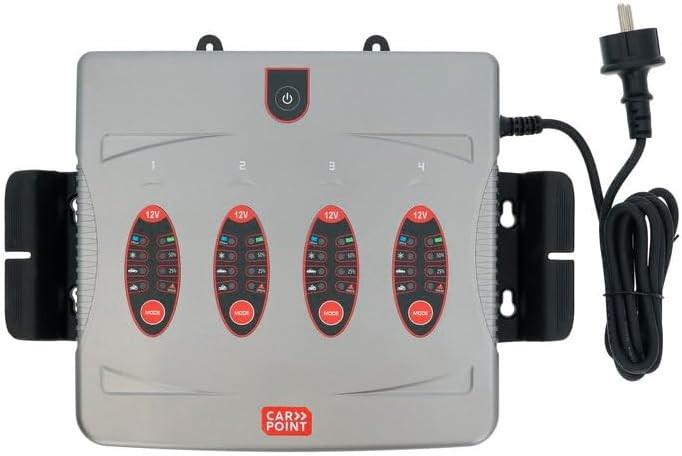

Carpoint BX-6 Battery Charger

The Carpoint BX-6 battery charger allows for the simultaneous charging of up to four 12V lead-acid batteries with capacities ranging from 1.5 to 120Ah. This fully automatic charger operates with a sophisticated five-stage charging cycle: initial diagnosis and main charge, absorption phase, pulse charge, maintenance charge, and automatic restart when voltage thresholds are exceeded. Each of the four independent charging channels delivers a maximum charging current of 4A per channel, with a total system capacity of 16A. The device features four separate displays with mode selection buttons for individual control and monitoring of each connected battery. Visual indicators include LED status lights that show the charging progress at 25%, 50%, 75%, and 100% completion, plus polarity error warnings. Technical specifications include an input voltage of 220-240V AC at 50/60Hz, charging voltage of 14.4V or 14.7V with ±0.25V tolerance, and an operating temperature range of -20°C to 40°C. The charger supports all common 12V lead-acid battery types, including flooded batteries, maintenance-free batteries, AGM, and gel batteries. Each charging channel includes color-coded cables with battery clamps and connectors for secure connections. The compact housing measures 260×246×63mm and offers IP64 protection against dust and splashes for outdoor use. Weighing 2.3kg, this charger provides reliable battery maintenance for automotive, marine, and recreational vehicles. The automatic charging algorithm ensures optimal battery health by adapting to the specific battery condition and prevents overcharging while maintaining full readiness.
