Busch-Jaeger Switching/dimming actuator, 16A, SD/S8.16.1 ** REG
Dimming actuatorDelivered between 8.1.2026 and 12.1.2026
More than 10 pieces in stock at third-party supplier
More than 10 pieces in stock at third-party supplier
Supplied by
JACOB DE
free shipping
Product details

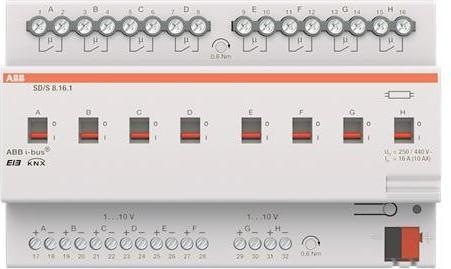

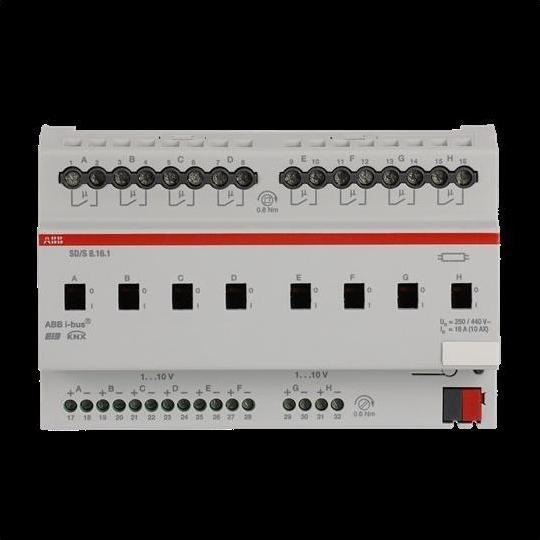

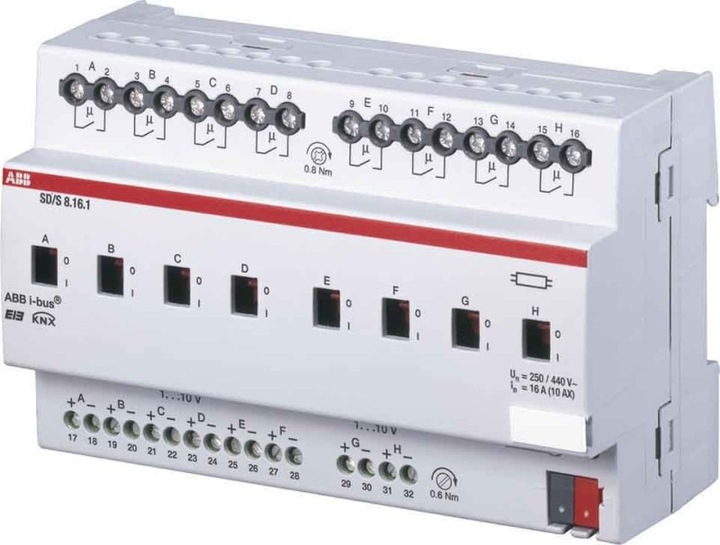

REG devices for switching and dimming via ABB i-bus® for 2, 4, or 8 independent lighting groups using electronic ballasts with a 1-10V control interface. Each channel can switch the supply voltage of the ballasts on and off via ABB i-bus® or manually using potential-free load relays (16A-AC1). There is a switching status indicator available. No power supply required. KNX.
communicating | Cable |
Actuator type | Dimming actuator |
Smart Home Protocol | KNX |
Mounting type | Top-hat rail |
Items per sales unit | 1x |
Operating voltage | 230 V |
Item number | 23989327 |
Manufacturer | Busch-Jaeger |
Category | Actuator |
Manufacturer no. | 2CDG110081R0011 |
Release date | 11.1.2023 |
Actuator type | Dimming actuator |
Max. Switching capacity | 2300 W |
rated current | 16 A |
Operating voltage | 230 V |
Number of switching outputs | 8x |
Mounting type | Top-hat rail |
Protection type (IP code) | IP20 |
Smart Home | Compatible |
Smart Home Protocol | KNX |
communicating | Cable |
Requires Smart Home Hub | No |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1x |
Length | 150 mm |
Height | 70 mm |
Weight | 560 g |
Specifications may include unverified machine translations.
