Product details

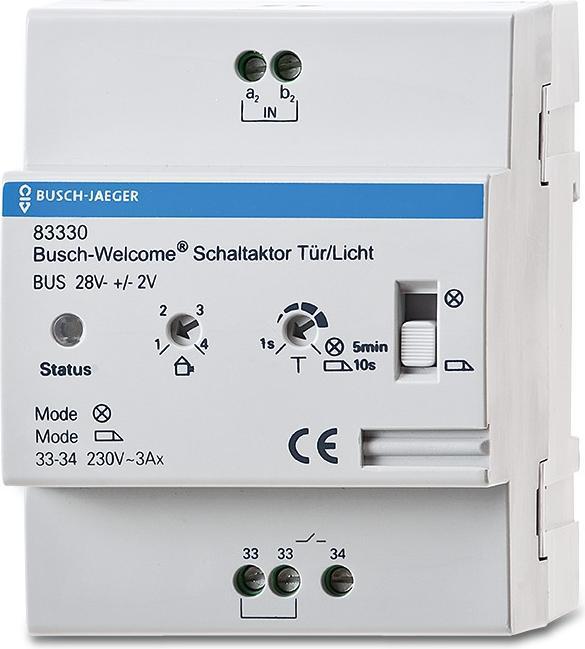

Busch-Jaeger Switch Actuator Door/Light REG 83330
Manufacturer: Busch-Jaeger
Designation: Switch Actuator Door/Light REG
Type: 83330
Function: Switching
Installation Technology: 2-Wire
Material: Plastic
Interface Design: Other
Mounting Type: DIN Rail
Width: 72 mm
Height: 90 mm
Depth: 65 mm
Width in Division Units: 4
The Busch-Jaeger Switch Actuator Door/Light REG 83330 allows for the connection of an electric door opener or the switching of lights, as well as the connection of a light relay (potential-free output 230 V, 3A). The assignment to an outdoor station is adjustable. The switching duration is also adjustable: Door opener 1 s to 10 s, Light 1 s to 5 min. Power consumption units: 2.
For more information on commissioning and operation, please refer to the system manual and the online operating instructions in the current online catalog. Use high-resistance door openers. Nominal resistance at least 20 Ohms.
EAN: 4011395152560.
Actuator type | Switch actuator |
mounting style | Top-hat rail |
Items per sales unit | 1 x |
Item number | 20025397 |
Manufacturer | Busch-Jaeger |
Category | Actuator |
Manufacturer no. | 2CKA008300A0044 |
Release date | 16.3.2022 |
Colour | White |
Exact colour description | White |
Material group | Plastic |
Material | Plastic |
Actuator type | Switch actuator |
Max. Switching capacity | 350 W |
rated current | 3 A |
Operating voltage | 28 V |
Number of switching outputs | 2 x |
mounting style | Top-hat rail |
Protection type (IP code) | IP20 |
Smart Home | Compatible |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 x |
Length | 0.07 m |
Width | 0.07 m |
Height | 0.09 m |
Weight | 160 g |
Length | 10 cm |
Width | 8 cm |
Height | 8 cm |
Weight | 160 g |
