Busch-Jaeger Insert

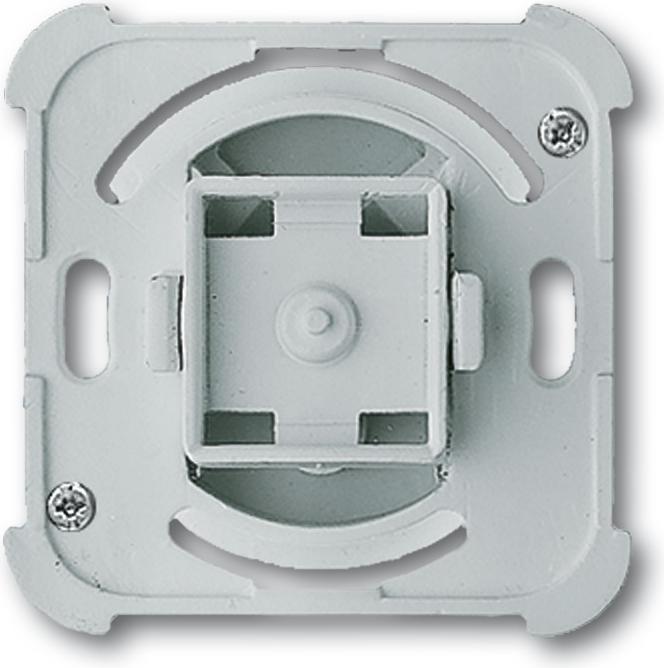

Busch-Jaeger Insert 2031 UP

Manufacturer: Busch-Jaeger
Designation: Insert
Type: 2031 UP
Composition: Base element
Execution: Single switch
Operation type: Push button
Number of contacts as switches: 1
Contactless execution: no
Number of operating rockers: 1
Number of poles: 1
Rated voltage: 42 V
Rated current: 0.5 A
With lighting: yes
With light source: yes
With signal lamp: no
Feedback contact: no
Mounting type: Flush-mounted
Mounting method: Screw fastening
Material: Plastic
Material quality: Thermoplastic
Halogen-free: yes
Antibacterial treatment: no
Surface protection: untreated
Surface finish: matte
Color: white
RAL number (similar): 1013
Transparent: no
Text field/Labeling area: no
Print: none
Suitable for protection class (IP): IP20

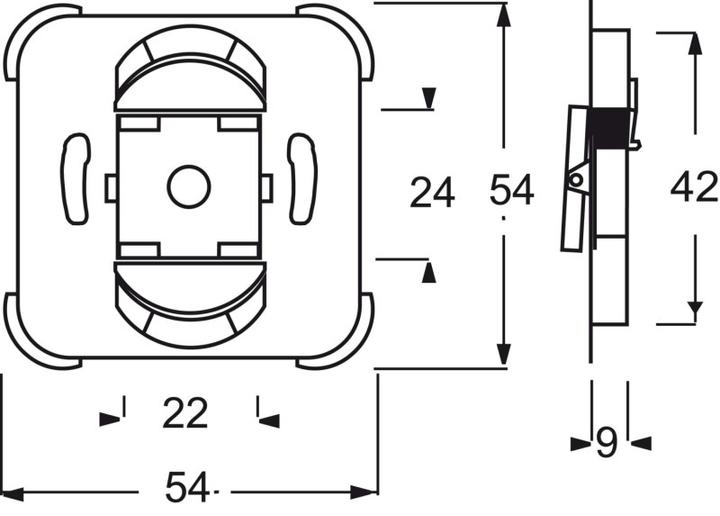

Device width: 54 mm
Device height: 54 mm
Device depth: 17.7 mm
Min. depth of device box: 12 mm
Compatible with Apple HomeKit: no
Compatible with Google Assistant: no
Compatible with Amazon Alexa: no
IFTTT support available: no

Busch-Jaeger Insert 2031 UP: additional details
Low voltage switch up to a maximum of 42 V~. Screw fastening for conductor connection. For installation in flush-mounted boxes with a diameter of 43 mm or surface-mounted housing 1706-xx. Clamp fastening. Installation depth 10 mm. Keyhole dimension for securing the base. Additional clamp fastening in the flush-mounted box (43 mm) by spreading two plastic parts.
EAN: 4011395478004.
