Busch-Jaeger Heating emergency switch

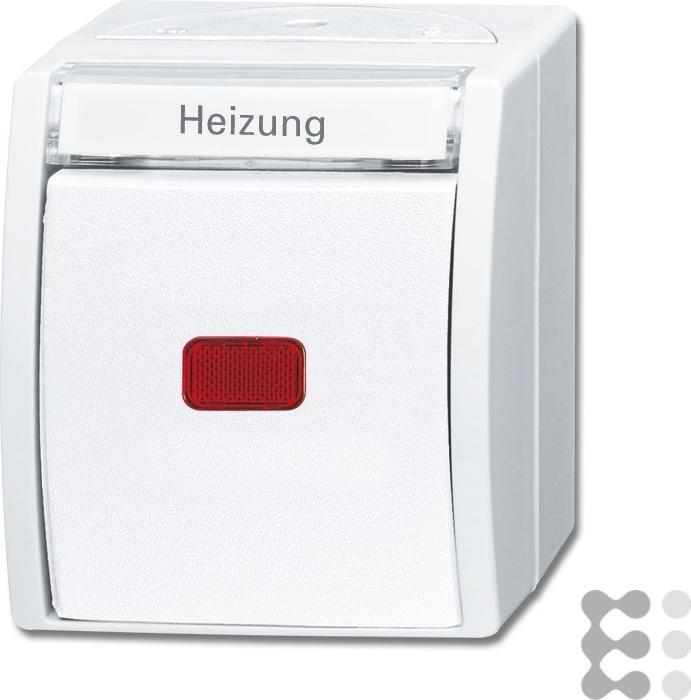

Busch-Jaeger Heating Emergency Switch 2601/6 SKWNH-54

Manufacturer: Busch-Jaeger
Designation: Heating Emergency Switch
Type: 2601/6 SKWNH-54
Switching Type: Toggle Switch
Operating Type: Rocker/Button
Assembly: Base Element with Complete Housing
Number of Modules (for Modular Design): 1
Push Button: No
Number of Operating Rockers: 1
Mounting Type: Surface Mount
Mounting Method: Screw Mounting
With Mounting Plate: No
Material: Plastic
Material Quality: Thermoplastic
Halogen-Free: Yes
Antibacterial Treatment: No
Surface Protection: Untreated
Surface Finish: Matte
Color: Alpine White
RAL Number (similar): 9010
Text Field/Label Area: Yes
Lighting: Optional
Lighting Function: Control and Orientation
Lighting Type: Other
Suitable for Protection Class (IP): IP44
Nominal Voltage: 250 V
Rated Current: 10 A
Switching Current for Fluorescent Lamps: 16 AX
Feedback Contact: No
Connection Type: Plug Terminal
Heating Switch: No
Washing Machine Switch: No

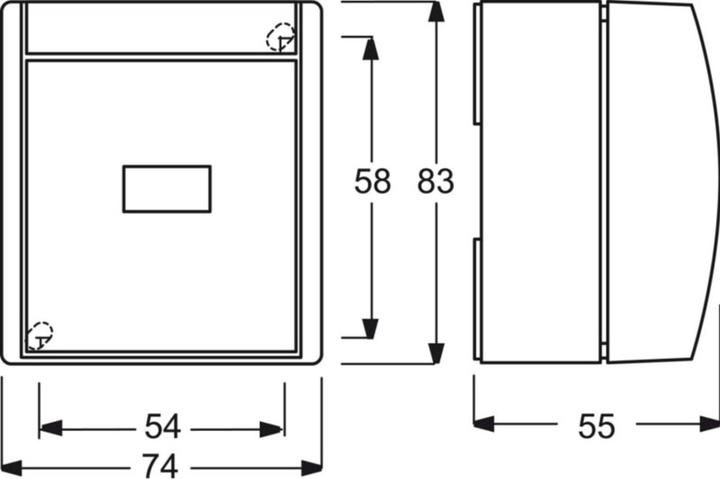

Device Width: 74 mm
Device Height: 83 mm
Device Depth: 55 mm
Compatible with Apple HomeKit: No
Compatible with Google Assistant: No
Compatible with Amazon Alexa: No
IFTTT Support Available: No

Busch-Jaeger Heating Emergency Switch 2601/6 SKWNH-54: Additional Details
With red dome. With glow lamp. With label field. Label field 57.8 x 9.8 mm. With N-terminal. Label carrier can be illuminated with lighting insert 2152 NLI-53. Switch can be illuminated by inserting lamp 8332-1, 8335-1, 8346-1, 8333-1, and 8358. Glow lamp 8346-1 included.
EAN: 4011395094600.
