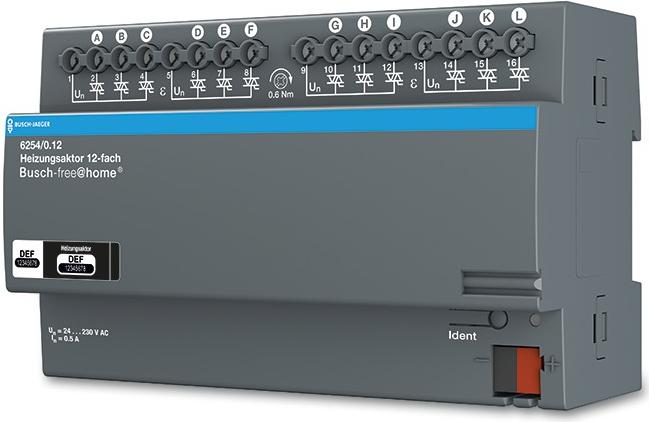

Busch-Jaeger Heating actuator 12-fold REG 6254/0.12 for Busch-free home 8TE 6254/0.12 (6220-0-0026)

Busch-Jaeger Heating Actuator 12-fold 6254/0.12

Manufacturer: Busch-Jaeger
Designation: Heating Actuator 12-fold REG
Type: 6254/0.12
KNX Bus System: no
KNX Radio Bus System: yes
Radio Bus System: no
LON Bus System: yes
Powernet Bus System: yes
Other Bus Systems: others
Mounting Type: REG
Width in Division Units: 8
With Bus Coupling: yes
Bus Module Removable: no
Continuous Control Size: yes
Switching Control Size: no
Valve Protection Function: yes
Max. Switching Current (resistive load): 2 A
Number of Outputs: 12
Max. Output Current: 0.16 A
Switching Voltage: 230 V
Protection Class (IP): IP20

The heating actuator is 12-fold for Busch-free@home® and is used for silent control of thermo-electric actuators in heating and cooling systems. Up to 3 actuators 6164/10-102 or 1 actuator 6164/11-102 can be connected per output. The outputs are short-circuit and overload protected. The bus connection is made via the included bus terminal. Programming is only possible with bus voltage applied through the web interface of the system access point. Further information on commissioning and operation can be found in the system manual and the online operating instructions.
EAN: 4011395180426.
