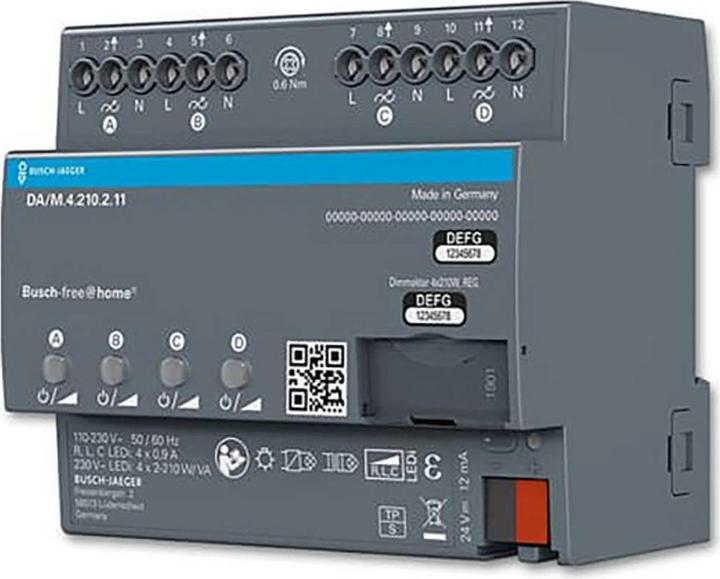

Busch-Jaeger Dimming actuator

Multi-channel universal dimmer actuator optimized for dimming retrofit LED lamps (LEDi). Also suitable for dimming incandescent lamps, low-voltage halogen lamps with conventional or electronic transformers, 230 V halogen lamps, and dimmable halogen energy-saving lamps. Automatic load detection (deactivatable). Separate neutral connection per channel. Parallel connection of outputs to increase output power is possible. Outputs can be connected in parallel as desired. Minimum load: 2 W. Manual operation at the device is also possible without bus voltage or in an unprogrammed state. Programming of the device is also possible without connected 230 V supply voltage. With integrated bus coupler. Rated power at 230 V mains voltage: - 230 V incandescent and halogen lamps: 4 x 210 W/VA up to 1 x 600 W/VA. - Dimmable 230 V LEDi: 4 x 210 W/VA up to 1 x 600 W/VA in phase-cut, 4 x 80 W/VA up to 1 x 200 W/VA in phase-angle. - Inductive L-transformers with LED/low-voltage halogen lamp: 4 x 210 W/VA up to 1 x 600 W/VA. - Electronic C-transformers with LED/low-voltage halogen lamp: 4 x 210 W/VA up to 1 x 600 W/VA. - Electronic LC-transformers with LED/low-voltage halogen lamp: 4 x 80 W/VA up to 1 x 200 W/VA. Programming is only possible with bus voltage applied via the web interface of the system access point. For more information on commissioning and operation, please refer to the system manual and the online user guide. Recommendation: Always use lamps of the same type and manufacturer.
