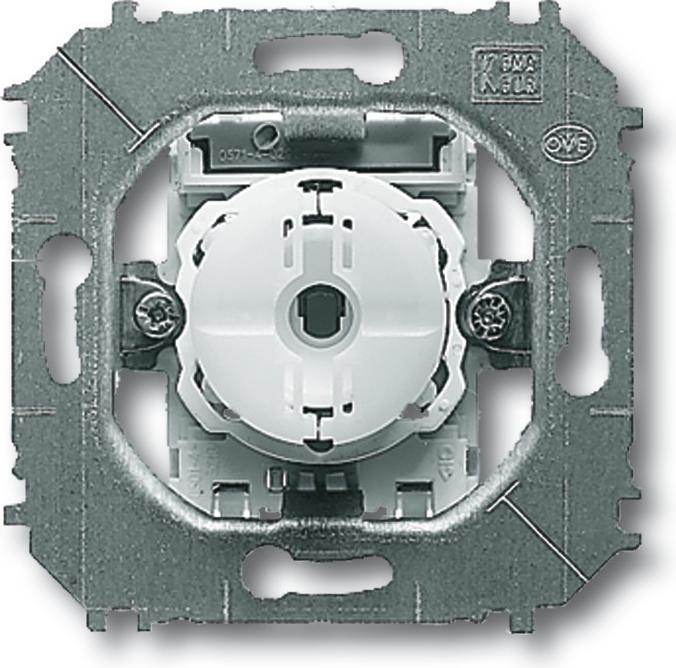

Busch-Jaeger Cross switch insert

Suitable for the impuls central plate with push button. Only install in conjunction with standard flush-mounted device boxes according to DIN 49073 or Busch-Jaeger Art. No. 3040 flush-mounted box for masonry, 3050 flush-mounted box for hollow walls, or 3060 flush-mounted box for concrete. Lamp for replacement needs 8360, 8362, 8363, and LED inserts. When used with LED lights or low-power energy-saving lamps, self-ignition may occur (light bulbs and/or the impuls-Aura lighting may flicker). Solution: Use compensator 6596 in parallel with the load.

Type: 2001/7 U

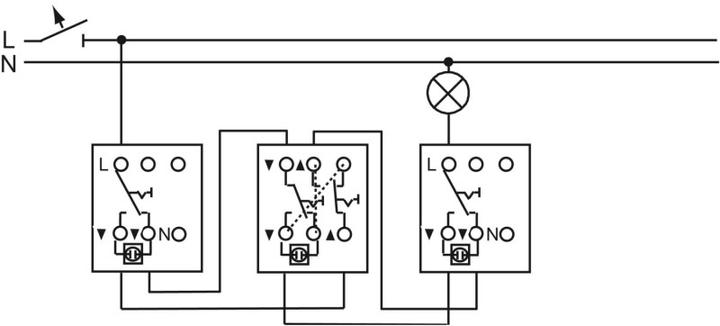

Mechanical switches / push button inserts pressure sequence switch insert cross circuit.
