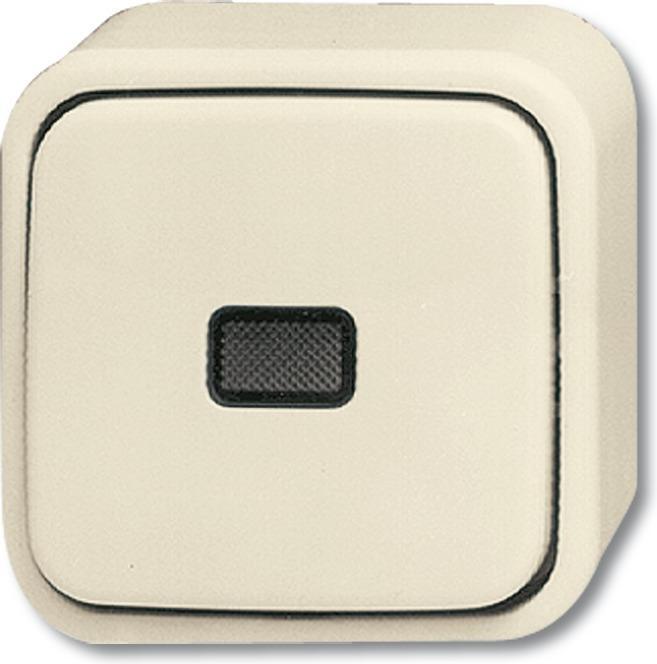

Busch-Jaeger Control changeover switch

Busch-Jaeger control change-over switch 2601/6 SKAP

Manufacturer: Busch-Jaeger
Designation: Control change-over switch AP
Type: 2601/6 SKAP
Type of switching: Change-over switch
Type of operation: Rocker/button
Assembly: Basic element with complete housing
Number of modules (for modular design): 1
Pushbutton switch: No
Number of actuating rockers: 1
Type of mounting: Surface-mounted
Mounting type: Screw mounting
With mounting plate: No
Material: Plastic
Material grade: Thermoset
Halogen-free: Yes
Surface protection: Untreated
Surface finish: Glossy
Color: White
RAL number (similar): 1013
Text field/inscription area: No
Lighting: Yes
Lighting function: Control and orientation
Type of lighting: Other
Suitable for Protection class (IP): IP20
Rated voltage: 250 V
Rated current: 10 A
Switching current for fluorescent lamps: 10 AX
Feedback contact: No
Connection type: Plug-in terminal
Washing machine switch: No

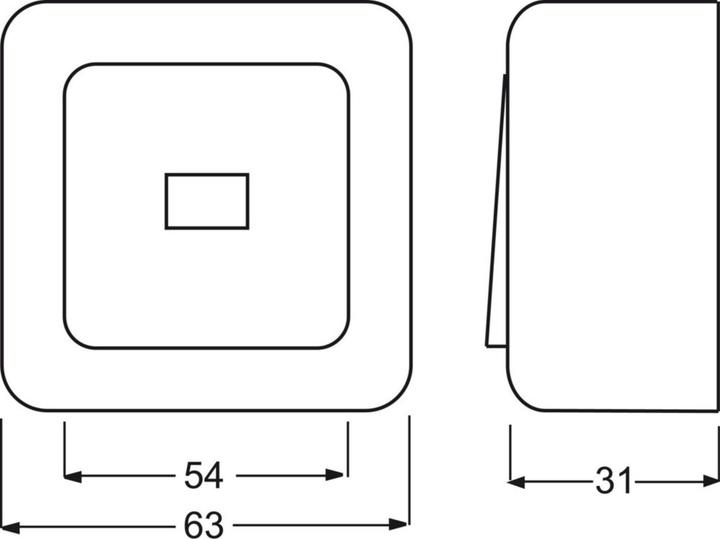

Device width: 63 mm
Device height: 63 mm
Device depth: 47 mm

Further details: With red dome. With glow lamp. With N-terminal. Glow lamp included in delivery. Can be illuminated by inserting compatible lamps.
EAN: 4011395019702.
