Busch-Jaeger Changeover switch insert

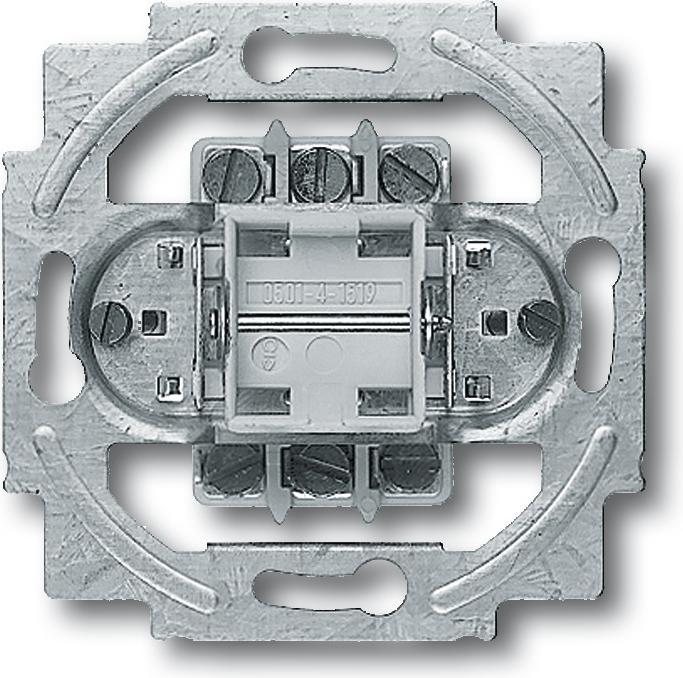

Busch-Jaeger Switch Insert 2000/6/2 US

Manufacturer: Busch-Jaeger
Designation: 2-pole switch insert
Type: 2000/6/2 US
Switching type: Switch
Operation type: Rocker/Button
Composition: Basic element
Push button: no
Number of operating rockers: 1
Mounting type: Flush-mounted
Mounting method: Claw/Screw fastening
With mounting plate: yes
Material: Plastic
Material quality: Duroplast
Halogen-free: yes
Antibacterial treatment: yes
Surface protection: untreated
Surface finish: matte
Color: gray
RAL number (similar): 5010
Text field/Labeling area: no
Illumination: no
Lighting function: other
Suitable for protection class (IP): IP20
Nominal voltage: 250 V
Rated current: 10 A
Switching current for fluorescent lamps: 10 AX
Feedback contact: no
Connection type: Screw terminal
Heating switch: yes
Washing machine switch: no

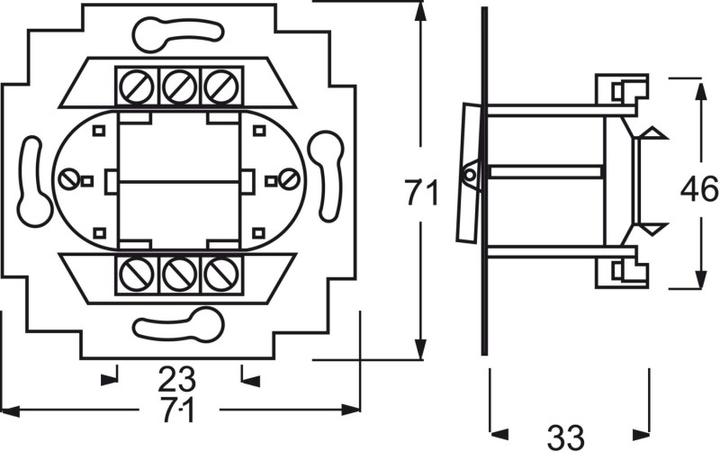

Device width: 71 mm
Device height: 71 mm
Device depth: 40 mm
Installation depth: 33 mm
Min. depth of device box: 33 mm
Compatible with Apple HomeKit: yes
Compatible with Google Assistant: yes
Compatible with Amazon Alexa: yes
IFTTT support available: yes

Busch-Jaeger Switch Insert 2000/6/2 US: additional details
Side screw connection. To be installed only in conjunction with standard flush-mounted device boxes according to DIN 49073. With screw terminals. Not capable of illumination.
