Busch-Jaeger Call set 1510 UC-84-101 for disabled WC studiowei

Busch-Jaeger call set for WC for disabled persons 1510 UC-84-101

Manufacturer: Busch-Jaeger
Designation: Call set for WC for disabled persons
Type: 1510 UC-84-101
Design: Complete set
Colour: White
RAL number (similar): 9016
Voltage type: AC/DC
Rated voltage AC: 230 V
Rated voltage DC: 230 V
Protection class (IP): IP20
Device width: 70 mm
Device height: 70 mm
Device depth: 21 mm

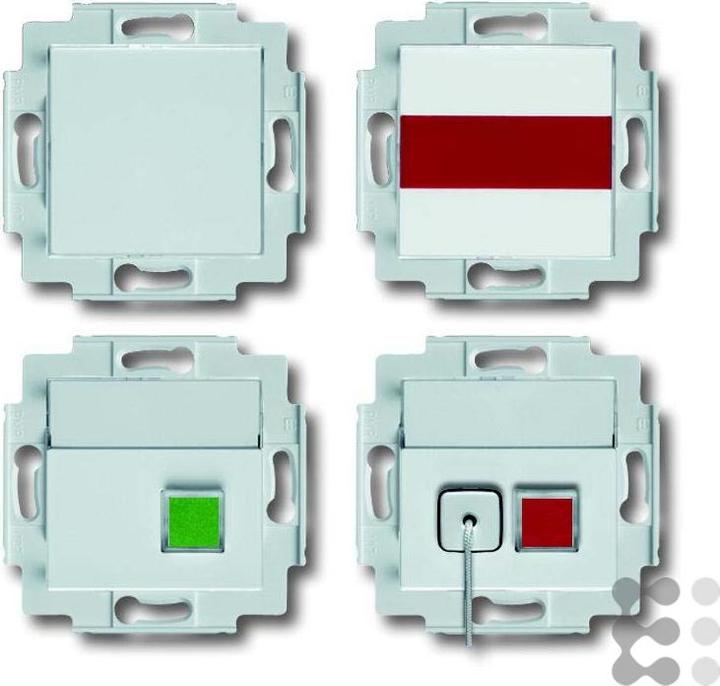

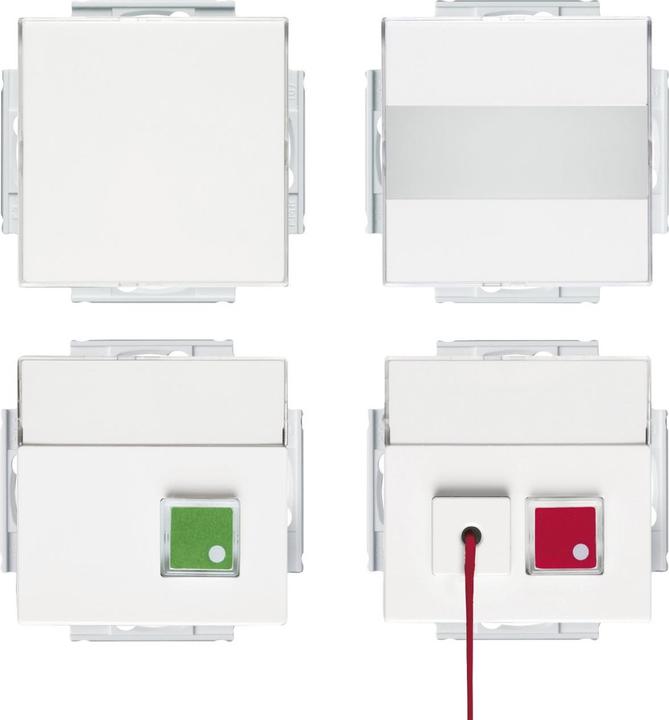

This Busch-Jaeger call set is designed for setting up an emergency call system for WCs for disabled persons. It consists of a power supply unit insert, alarm signal insert, signal button insert with pull cord, and cancel button insert.

Call triggering is done via the pull-cord button, with optical and acoustic emergency call signaling outside the WC for the disabled. There is a reassurance light when the call is raised and a cancel button for cancelling the emergency call.

Labelling field button dimensions: 61 x 20 mm.
Labelling field power supply/alarm signal insert dimensions: 61 x 61 mm.

An emergency power supply is required for installations according to DIN VDE 0834. The device features screw fixing via keyholes and includes a central disc. Suitable labelling software is available.
EAN: 4011395254790.
