Busch-Jaeger Call set 1510 UC-214-101 f.disabled WC aws safety technology

Busch-Jaeger call set for WC for disabled persons 1510 UC-214-101

Manufacturer: Busch-Jaeger
Designation: Call set for WC for disabled persons
Type: 1510 UC-214-101
Design: Complete set
Colour: White
RAL number (similar): 9010
Voltage type: AC/DC
Rated voltage AC: 230 V
Rated voltage DC: 230 V
Protection class (IP): IP20
Device width: 70 mm
Device height: 70 mm
Device depth: 21 mm

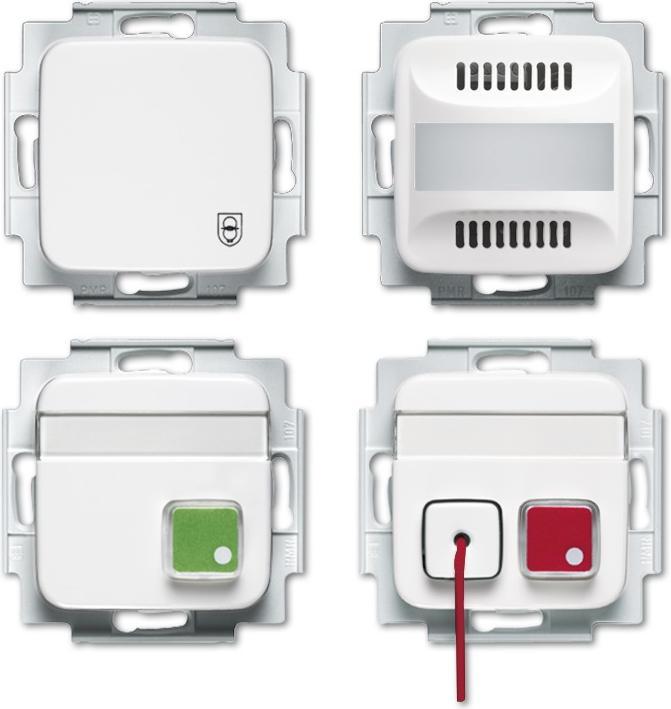

This Busch-Jaeger call set is designed for setting up an emergency call system for WCs for disabled persons. It consists of a power supply unit insert, alarm signal insert, signal button insert with pull cord, and cancel button insert. Call triggering is done via the pull-cord button, with optical and acoustic emergency call signaling outside the WC for the disabled. It features a reassurance light for call release and a cancel button for cancelling the emergency call. The labelling field measures 51 x 10 mm. For installations according to DIN VDE 0834, an emergency power supply is required. It includes screw fixing via keyholes and a central disc.
