Product details

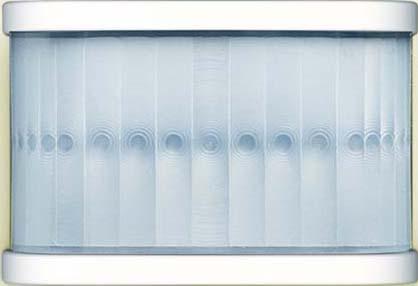

Busch-Jaeger Busch-Watchdog 180 UP 6122/10-212
Manufacturer: Busch-Jaeger
Designation: Busch-Watchdog 180 UP white
Type: 6122/10-212
Design: Motion detector
Mounting type: Flush-mounted
Constant light control: No
HVAC control: No
Networkable: No
Suitable for wireless transmission: No
Creep protection/back field monitoring: No
Mounting height: 1.1 m
Max. range to one side: 6 m
Range to one side: 6 m
Max. range frontal: 6 m
Detection field diameter on floor: 6 m
Response sensitivity adjustable: No
Response brightness adjustable: No
Teach function for response brightness: No
Dimming function with dimming insert: No
Animal track: No
Staircase monitoring: Yes
With orientation light: No
Material: Plastic
Material grade: Thermoplastic
Halogen-free: Yes
Suitable for protection class (IP): IP20
Operating mode switch: No
Min. duty cycle: 10 s
Max. duty cycle: 17 min
Detection mode switch: No
Duty cycle: 17 min
Angle of detection horizontal: 0..180 °
Compatible with Apple HomeKit: No
Colour: White
RAL number (similar): 1013
Compatible with Google Assistant: No
Compatible with Amazon Alexa: No
IFTTT support available: No
Further details: Motion detector with up to 4 channels. The bus connection is made via the enclosed bus terminal. With integrated KNX bus coupling unit. If required, please refer to the current online catalogue for software and description.
EAN: 4011395211069.
