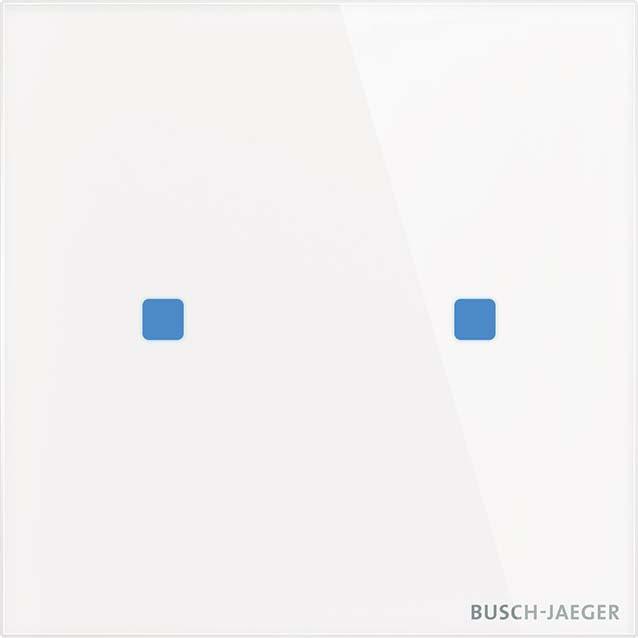

Busch-Jaeger BJ TB/U2.5.11-CG Touch control panel

Busch-Jaeger Touch Control Element TB/U2.5.11-CG

Manufacturer: Busch-Jaeger
Description: Touch Control Element 2-fold
Type: TB/U2.5.11-CG
KNX Bus System: yes
KNX Radio Bus System: no
Radio Bus System: no
LON Bus System: no
Powernet Bus System: no
Other Bus Systems: none
Bidirectional Radio: no
Mounting Type: Surface-mounted
With Theft/Dismantling Protection: yes
With Bus Coupling: no
Number of Control Points: 2
Number of Buttons: 2
With LED Display: no
With Labeling Field: yes
With Display: no
Material: Glass
Material Quality: other
Surface Protection: untreated
Surface Finish: glossy
Color: other
Transparent: no
With Room Thermostat: no
With Infrared Sensor: no
Protection Class (IP): IP20
Minimum Depth of Device Box: 35 mm

The Busch-Jaeger Touch Control Element TB/U2.5.11-CG is a freely configurable multifunction control element with an integrated KNX bus coupler, temperature sensor, and proximity function. The button function includes switching, dimming, blinds, sending values, and light scenes. Support for KNX functions is provided through an innovative color concept (yellow=lighting, blue=blinds, orange=RTR, magenta=scene, and white=neutral/no function assignment) or standard red/green lighting. The bus connection is made via the included bus terminal.

Number of Bus Participants: 1
These individually produced devices are excluded from exchange. The illustration shows a configured device. Ordering is only possible in conjunction with the specified design ID or the generated design ID from the configurator.
EAN: 4011395230954.
