Busch-Jaeger Actuator

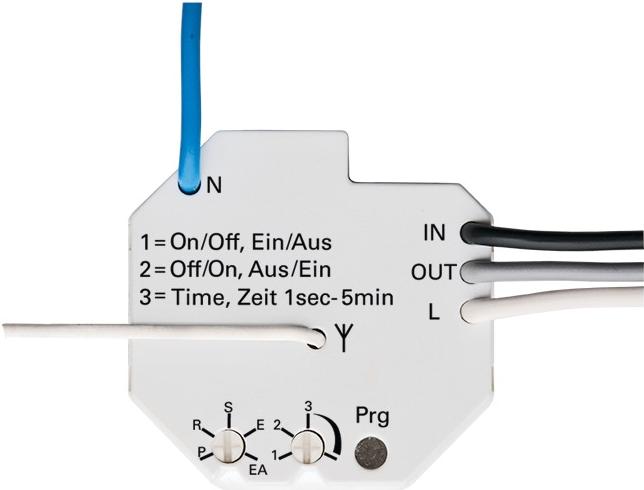

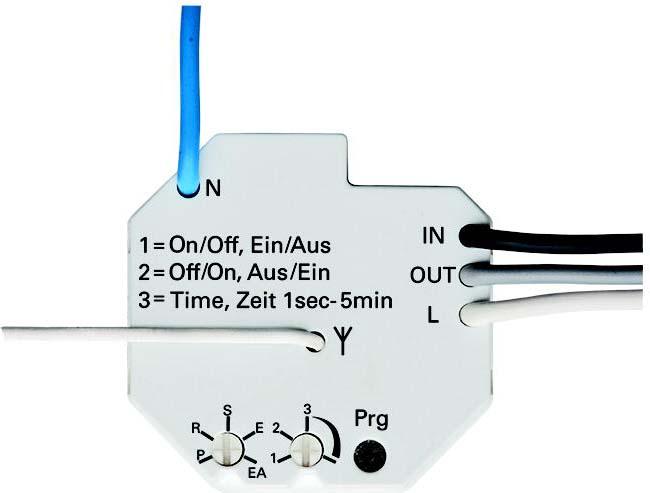

Busch-Jaeger actuator 1-fold 6702

Manufacturer: Busch-Jaeger
Designation: Actuator 1-fold white
Type: 6702

Suitable for dimmer: No
Suitable for pulse push-button: Yes
Suitable for shutter switch: No
Suitable for blind switch: No
Suitable for shutter/blind switches: No
Suitable for switches: Yes

In housing: Yes
In tube base housing: No
As module/board: No

Power supply: 230 V AC
Push-button operation: Yes
Switching operation: Yes
With radio hand-held transmitter: No
With radio coding device: No
With radio pushbutton: No
Number of relays: 1

Mounting type: Other
Material: Plastic
Material grade: Thermoplastic
Halogen-free: Yes
Surface protection: Untreated
Finish: Matt
Color: White
RAL number (similar): 9016
Transparent: No
Suitable for protection class (IP): IP20

Radio frequency: 868 MHz
Modulation: VHF (FM)
Rolling code system: No

For switching electrical loads by radio. Functions include ON/OFF, time switch, and light scene control. Compatible with wall transmitters Waveline 6731-xxx, 6732-xxx, and 6733-xxx, as well as handheld transmitter WaveLINE 6780. Switch-off delay is adjustable from 10 seconds to 5 minutes. Repeater function can be activated to increase range. Designed for universal mounting or installation with 3-wire connection technology (neutral conductor required). Suitable for mounting in (deep) flush-mounted boxes according to DIN 49073. Controllable via up to 32 transmitter addresses. Transmitting/receiving frequency is 868 MHz with a range of approximately 100 meters in free field.
